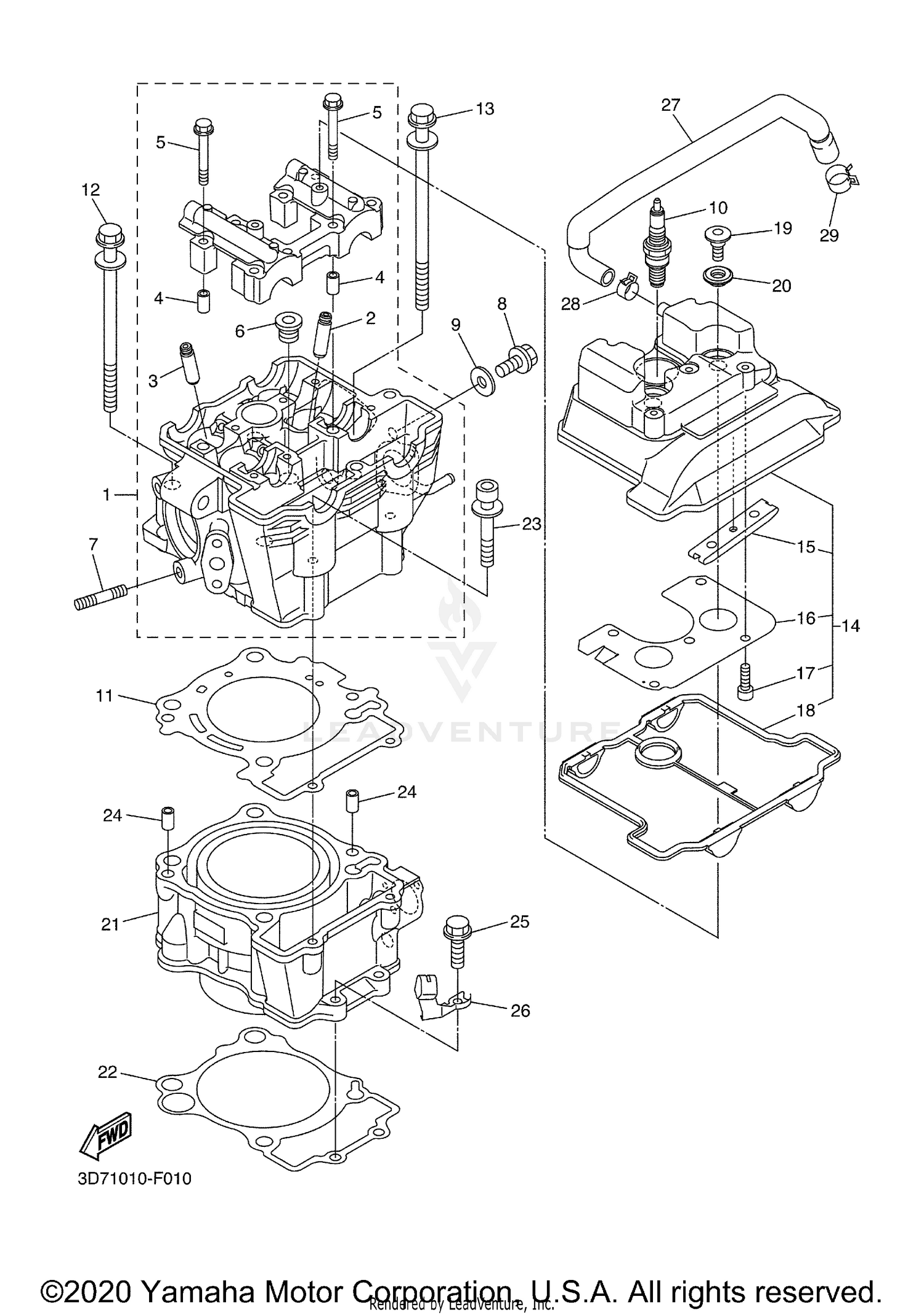

| Ref | Part Number | Description |
|---|
| 1 |
3D7-11101-09-00 |
CYLINDER HEAD ASSY Price: $1,360.99 |
| 2 |
3D7-11133-10-00 |
GUIDE, VALVE 1 Price: $69.99 |
| 3 |
2C0-11133-11-00 |
GUIDE, VALVE 1 Price: $69.99 |
| 4 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 5 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 6 |
90340-12007-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 7 |
95612-08620-00 |
BOLT, STUD Price: $8.49 |
| 8 |
95022-08012-00 |
BOLT, FLANGE Price: $13.49 |
| 9 |
90430-08119-00 |
GASKET Price: $7.49 |
| 10 |
CR9-EK000-00-00 |
CR9EK NGK SPLUG 10 Price: $15.99 |
| 11 |
3D7-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $55.99 |
| 12 |
90119-10025-00 |
BOLT, WITH WASHER Price: $17.49 |
| 13 |
90119-10026-00 |
BOLT, WITH WASHER Price: $32.99 |
| 15 |
5BE-12241-01-00 |
GUIDE, STOPPER 2 This part replaces 5BE-12241-00-00. Price: $32.99 |
| 16 |
3D7-11165-00-00 |
PLATE, BREATHER Price: $10.49 |
| 17 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 18 |
3D7-11193-00-00 |
GASKET, HEAD COVER 1 Price: $50.99 |
| 19 |
90109-066F0-00 |
BOLT Price: $9.49 |
| 20 |
5VY-1111G-00-00 |
RUBBER, MOUNT 1 Price: $13.49 |
| 21 |
3D7-11311-02-00 |
CYLINDER 1 Price: $890.99 |
| 22 |
3D7-11351-02-00 |
GASKET, CYLINDER This part replaces 3D7-11351-01-00. Price: $17.99 |
| 23 |
90110-06298-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 24 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 25 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 26 |
3D7-12491-00-00 |
CLAMP 1 Price: $11.49 |
| 27 |
3D7-11166-00-00 |
PIPE, BREATHER 1 Price: $35.99 |
| 28 |
90467-120A5-00 |
CLIP Price: $9.49 |
