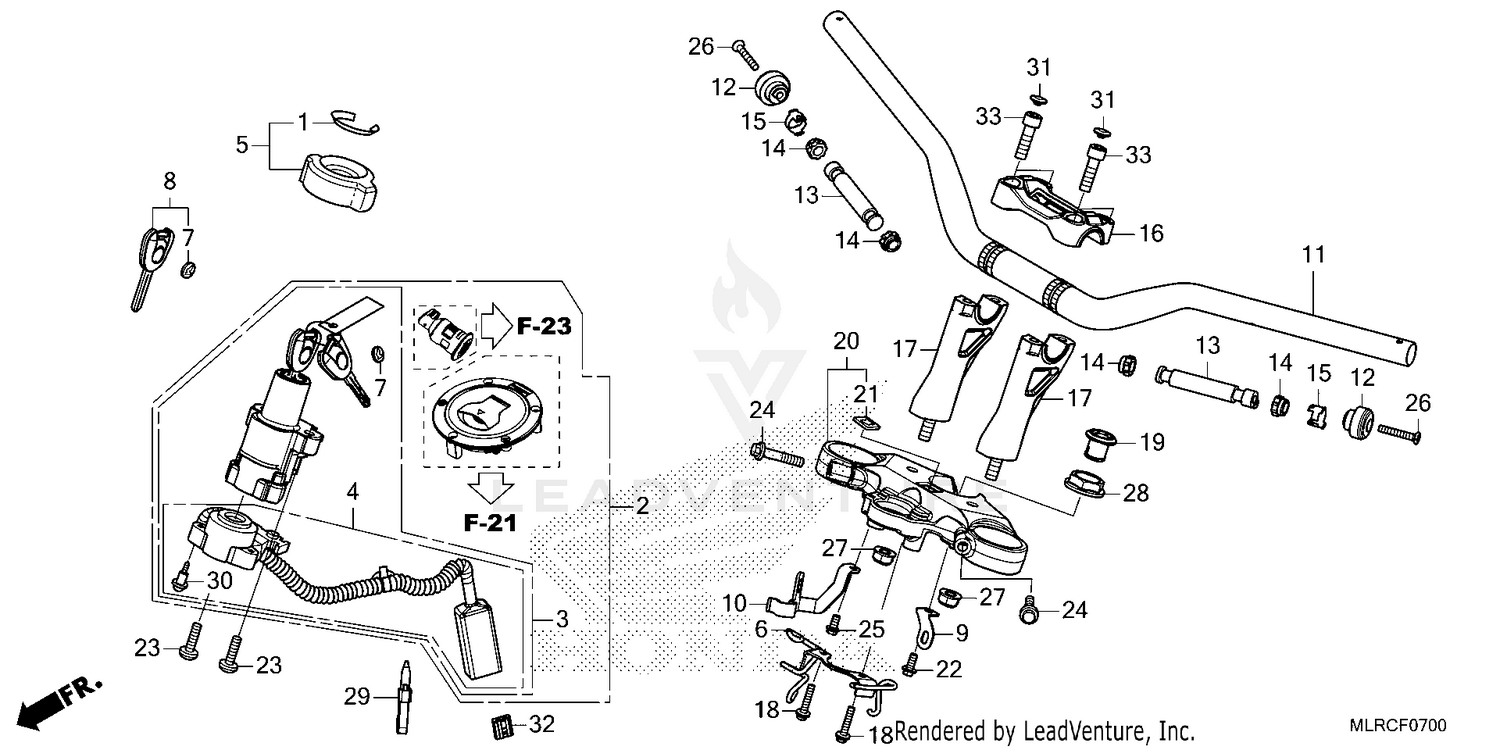

| Ref | Part Number | Description |
|---|
| 1 |
30433-MBW-602 |
SEAL, IGNITION SWITCH Price: $3.24 |
| 2 |
35010-MJW-A84 |
LOCK SET Price: $266.45 |
| 3 |
35100-MJW-A02 |
SWITCH ASSY., COMBINATION & LOCK Price: $186.98 |
| 4 |
35101-MJW-D11 |
BASE, CONTACT Price: $50.20 |
| 5 |
35106-MKP-A00 |
COVER, COMBINATION SWITCH Price: $4.60 |
| 6 |
35106-MKP-J80 |
GUIDE, CABLE Price: $10.53 |
| 9 |
35910-MKP-J80 |
STAY, CLIP Price: $5.24 |
| 10 |
45157-MLR-D80 |
CLAMP C, FR. BRK HSE Price: $4.84 |
| 11 |
53100-MLR-D80ZA |
HANDLEBAR *NH303M* Price: $68.45 |
| 12 |
53104-MJE-D40 |
WEIGHT, HANDLEBAR Price: $35.67 |
| 13 |
53105-MGZ-J80 |
WEIGHT B, HANDLEBAR Price: $8.53 |
| 14 |
53106-KR3-770 |
RUBBER A, HANDLE WEIGHT Price: $4.93 |
| 15 |
53108-KR3-770 |
RING, HANDLE WEIGHT SNAP Price: $7.82 |
| 16 |
53131-MKP-J40ZA |
HOLDER, HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC) Price: $36.62 |
| 17 |
53132-MKP-J80ZA |
HOLDER, HANDLE (LOWER) *NH303M* (MAT AXIS GRAY METALLIC) Price: $64.56 |
| 18 |
53192-MFL-000 |
SCREW-WASHER (5X25) Price: $2.11 |
| 19 |
53232-K94-T00 |
CAP, STEERING NUT Price: $2.51 |
| 20 |
53300-MKP-DQ0 |
BRIDGE, FORK TOP Price: $108.98 |
| 21 |
86150-KPG-901 |
EMBLEM, PRODUCT (MARUI) Price: $4.55 |
| 22 |
90017-GHB-620 |
BOLT, FLANGE (6X14) (NSHF) (NOT AVAILABLE) Price: $2.18 |
| 23 |
90107-MBG-000 |
BOLT, ONE-WAY (8MM) Price: $3.65 |
| 24 |
90107-MGE-000 |
BOLT, FLANGE (8X40) Price: $3.04 |
| 25 |
90117-KZZ-J80 |
BOLT, FLANGE (6X14) (NOT AVAILABLE) Price: $0.65 |
| 26 |
90122-MKN-D50 |
SCREW, OVAL (6X40) Price: $1.53 |
| 27 |
90304-KGH-901 |
NUT, U (10MM) Price: $3.96 |
| 28 |
90304-MCF-000 |
NUT, STEERING STEM FLANGE Price: $12.33 |
| 29 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 30 |
91059-KY2-711 |
SCREW, TAPPING (3X16) Price: $3.73 |
| 31 |
91456-371-770 |
CAP, SOCKET BOLT Price: $4.35 |
| 32 |
91554-SM4-003 |
HOLDER, BRACKET (RED) Price: $8.18 |
