Parts Catalog

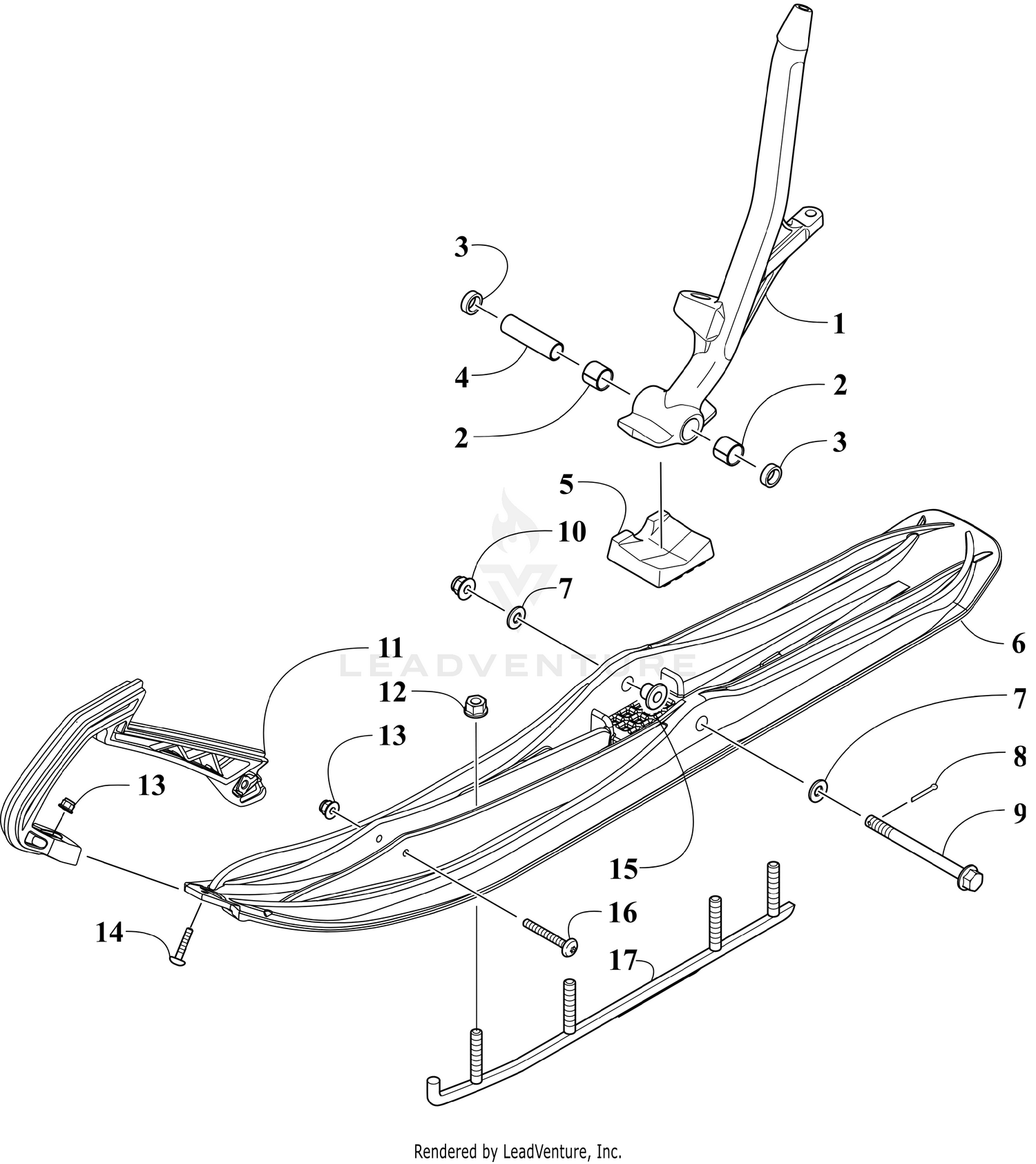

SKI AND SPINDLE ASSEMBLY [109248]

Parts (15)

Ref	Part Number	Description
2	0603-158	Bearing Price: $9.64
3	2603-208	Spacer Price: $2.91
4	2603-813	Axle, Spindle Price: $26.95
5	3603-237	Damper, Ski - Rubber Price: $20.56
6	3603-234	Ski, Plastic - Black Price: $123.95
7	1623-801	Washer Price: $1.07
8	0123-458	Pin, Cotter Price: $0.46
9	1623-781	Screw, Cap Price: $5.94
10	0423-744	Nut, Lock Price: $2.02
11	3603-738	Handle, Plastic - Blue Price: $89.95
12	8047-486	Nut, Lock Price: $1.07
13	8427-602	Nut, Hex Price: $0.23
14	8476-625	Screw, Machine Price: $1.92
15	2603-746	Insert Price: $2.61
16	8476-650	Screw, Machine Price: $1.70
