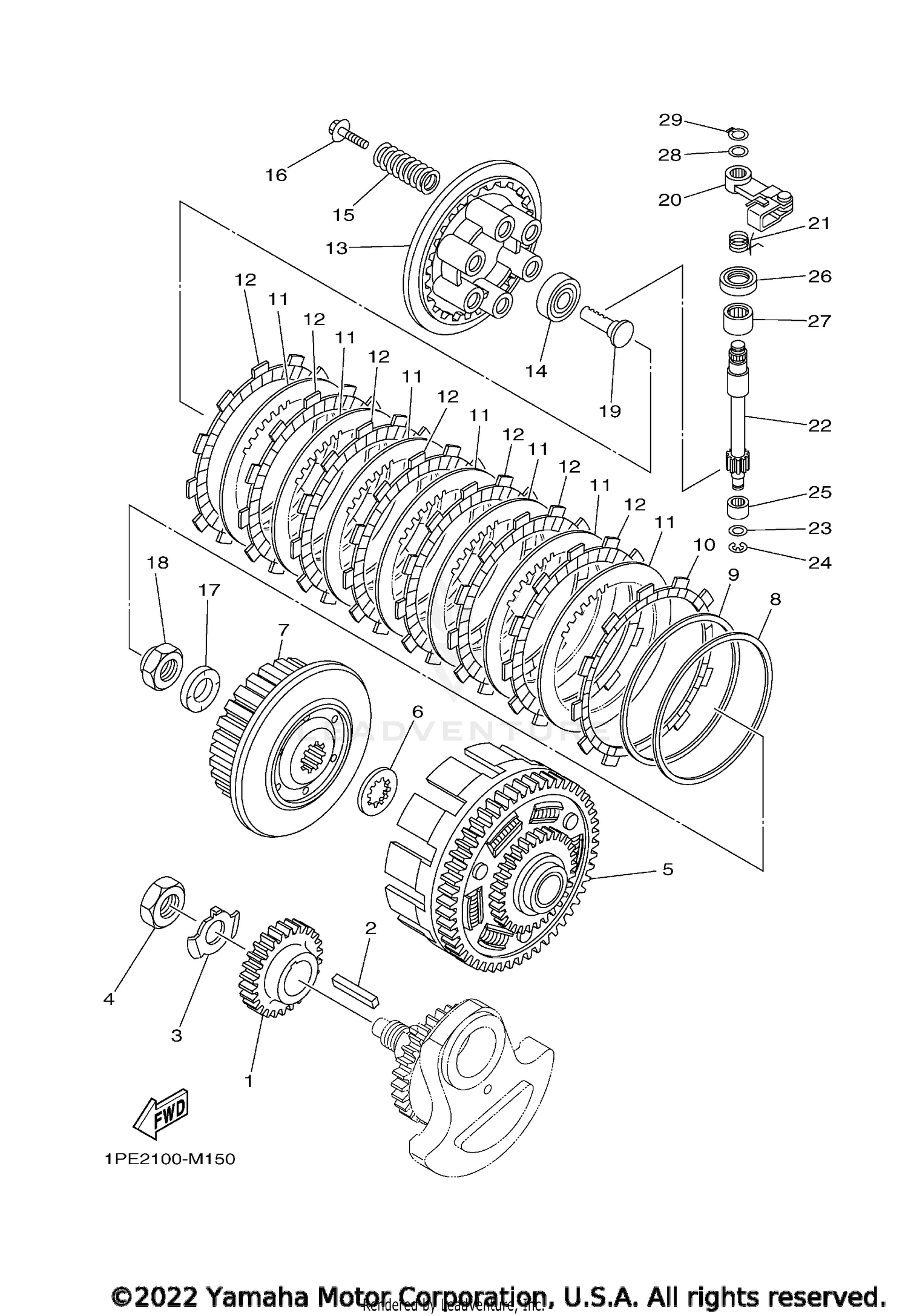

| Ref | Part Number | Description |
|---|
| 1 |
1S3-16111-00-00 |
GEAR, PRIMARY DRIVE Price: $130.99 |
| 2 |
90282-07003-00 |
KEY, STRAIGHT Price: $13.49 |
| 3 |
90215-20006-00 |
WASHER, LOCK Price: $9.49 |
| 4 |
90170-20274-00 |
NUT Price: $18.49 |
| 5 |
1S3-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $395.99 |
| 6 |
2JN-16154-00-00 |
PLATE, THRUST 1 Price: $22.99 |
| 7 |
1S3-16371-10-00 |
BOSS, CLUTCH Price: $151.99 |
| 8 |
5JG-16384-00-00 |
PLATE, SEAT Price: $46.99 |
| 9 |
5JG-16383-00-00 |
SPRING, CLUTCH BOSS Price: $47.99 |
| 10 |
5TG-16331-00-00 |
PLATE, FRICTION 2 Price: $17.99 |
| 11 |
4X7-16325-10-00 |
PLATE, CLUTCH 2 This part replaces 4X7-16325-00-00. Price: $17.99 |
| 12 |
5TA-16321-00-00 |
PLATE, FRICTION Price: $28.99 |
| 13 |
1S3-16351-00-00 |
PLATE, PRESSURE 1 Price: $83.99 |
| 14 |
93306-00315-00 |
BEARING This part replaces 93306-00304-00. Price: $36.99 |
| 15 |
90501-230E4-00 |
SPRING, COMPRESSION Price: $10.49 |
| 16 |
90159-06029-00 |
SCREW, WITH WASHER Price: $9.49 |
| 17 |
90208-20001-00 |
WASHER, CONICAL SPRING Price: $18.49 |
| 18 |
90179-20022-00 |
NUT This part replaces 90179-20007-00. Price: $15.49 |
| 19 |
4XV-16356-01-00 |
ROD, PUSH 1 Price: $63.99 |
| 20 |
3LD-16340-01-00 |
PUSH LEVER ASSY Price: $25.99 |
| 21 |
90508-18018-00 |
SPRING, TORSION Price: $6.49 |
| 22 |
5EB-16382-00-00 |
AXLE, PUSH LEVER Price: $91.99 |
| 23 |
92990-08600-00 |
WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
| 24 |
99080-07600-00 |
CIRCLIP This part replaces 99001-07600-00. Price: $3.55 |
| 25 |
93317-11096-00 |
BEARING Price: $25.99 |
| 26 |
93102-15212-00 |
OIL SEAL Price: $10.49 |
| 27 |
93315-31502-00 |
BEARING Price: $39.99 |
| 28 |
90201-10614-00 |
WASHER, PLATE Price: $9.49 |
