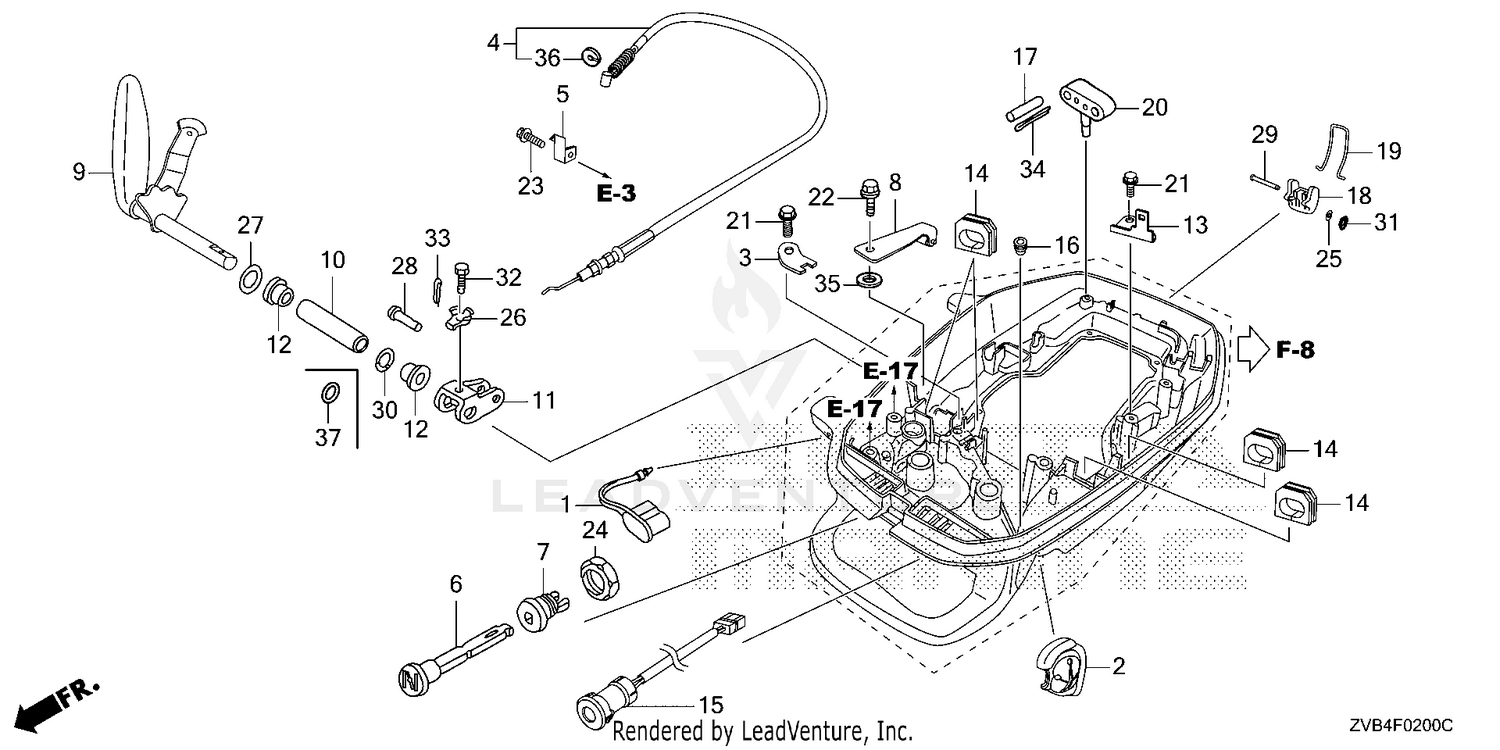

| Ref | Part Number | Description |
|---|
| 1 |
17714-ZVD-000 |
CAP, FUEL CONNECTOR Price: $9.86 |
| 2 |
17913-ZVD-000 |
GROMMET, THROTTLE CABLE Price: $6.74 |
| 3 |
17921-ZVD-000 |
HOLDER, CABLE Price: $5.22 |
| 4 |
17940-ZVD-013 |
CABLE COMP Price: $29.06 |
| 5 |
17945-ZVD-000 |
BRACKET, CABLE Price: $6.62 |
| 6 |
17951-ZVD-000 |
KNOB, CHOKE Price: $8.92 |
| 7 |
17953-ZVD-000 |
GUIDE, CHOKE KNOB Price: $4.26 |
| 8 |
24210-ZV1-010 |
SEE PART DETAILS - PRI; SPRING, CLICK Price: $14.04 |
| 11 |
24612-ZVD-000 |
ARM, SHIFT Price: $8.80 |
| 13 |
32101-ZVD-000 |
BRACKET, CONNECTOR A Price: $9.48 |
| 14 |
32972-ZVD-000 |
GROMMET, WIRE Price: $4.86 |
| 15 |
37210-ZVD-003 |
LAMP ASSY., INDICATOR Price: $49.82 |
| 16 |
40102-ZVD-000 |
GROMMET A, CASE (LOWER) Price: $2.44 |
| 17 |
58131-ZV1-010 |
SEE PART DETAILS - PRI; PIN, SHEAR Price: $5.74 |
| 18 |
63232-ZVD-000 |
LEVER, FASTENER Price: $9.18 |
| 19 |
63236-ZVD-000 |
WIRE, FASTENER (3.2) Price: $3.40 |
| 20 |
88111-ZVA-000 |
HOLDER, PARTS Price: $3.24 |
| 21 |
90011-ZW9-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200) Price: $2.34 |
| 22 |
90013-ZV0-010 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) Price: $2.46 |
| 23 |
90112-ZVA-000 |
BOLT, FLANGE (6X12) Price: $4.82 |
| 24 |
90303-ZVA-000 |
NUT, HEX. (16MM) Price: $10.78 |
| 25 |
90452-GK4-600 |
SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) Price: $1.76 |
| 26 |
90501-ZVD-000 |
WASHER, TONGUED Price: $3.86 |
| 27 |
90508-ZVD-000 |
WASHER, PLAIN (10MM) Price: $2.26 |
| 28 |
90754-ZVD-000 |
PIN, HEX. (5X15) Price: $2.82 |
| 29 |
90755-ZVD-000 |
PIN (5X47) Price: $4.02 |
| 31 |
91452-ZVD-000 |
RING, STOPPER Price: $1.74 |
| 32 |
92101-05016-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (5X16) Price: $1.66 |
| 33 |
94201-16102 |
PIN, SPLIT (1.6) Price: $2.28 |
| 34 |
94201-30252 |
PIN, SPLIT (3.0) Price: $4.38 |
| 35 |
90402-ZVD-000 |
WASHER, PLAIN (6MM) Price: $2.34 |
| 36 |
17941-ZVD-003 |
WASHER Price: $1.60 |
