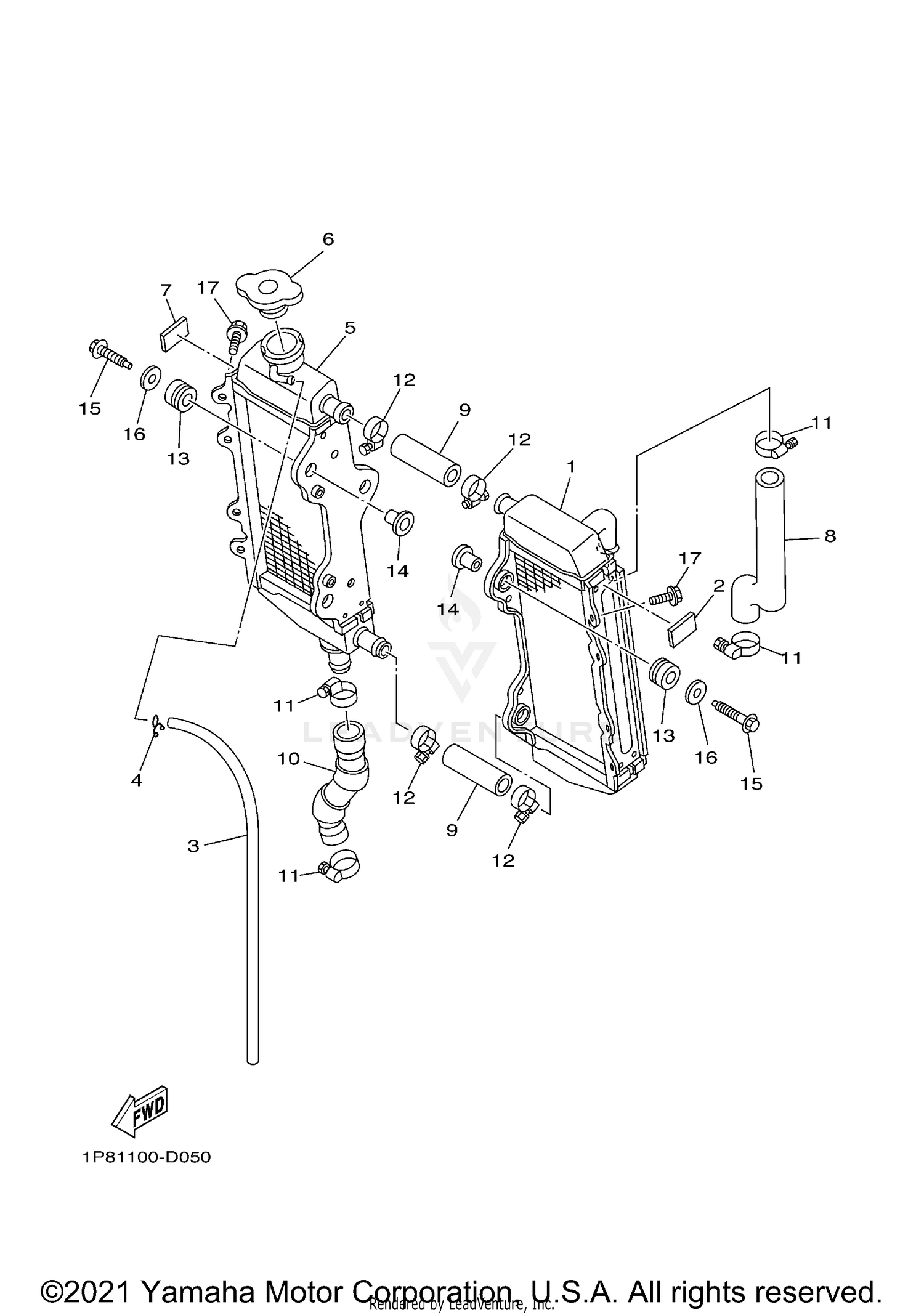

RADIATOR & HOSE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5NX-1240A-00-00 | RADIATOR ASSY Price: $203.99 |
| 2 | 1C3-12465-00-00 | DAMPER, RADIATOR Price: $7.49 |
| 3 | 91A20-05080-00 | TUBE, FLEXIBLE VINYL This part replaces 91A20-05065-00. Price: $16.49 |
| 4 | 90467-090A2-00 | CLIP Price: $4.75 |
| 5 | 5NX-12461-00-00 | RADIATOR COMP Price: $203.99 |
| 6 | 4FL-12462-00-00 | CAP, RADIATOR This part replaces 22W-12462-00-00. Price: $68.99 |
| 7 | 1C3-12465-00-00 | DAMPER, RADIATOR Price: $7.49 |
| 8 | 5CU-12481-10-00 | PIPE 1 Price: $31.99 |
| 9 | 5NY-12482-00-00 | PIPE 2 Price: $8.49 |
| 10 | 1P8-12484-00-00 | PIPE 4 Price: $24.99 |
| 11 | 90450-28001-00 | HOSE CLAMP ASSY Price: $16.49 |
| 12 | 90450-22M14-00 | HOSE CLAMP ASSY This part replaces 90450-25001-00. Price: $16.99 |
| 13 | 90480-15528-00 | GROMMET Price: $9.49 |
| 14 | 90387-06065-00 | COLLAR Price: $13.49 |
| 15 | 90105-06111-00 | BOLT, FLANGE Price: $9.49 |
| 16 | 90201-06571-00 | WASHER, PLATE Price: $10.49 |
