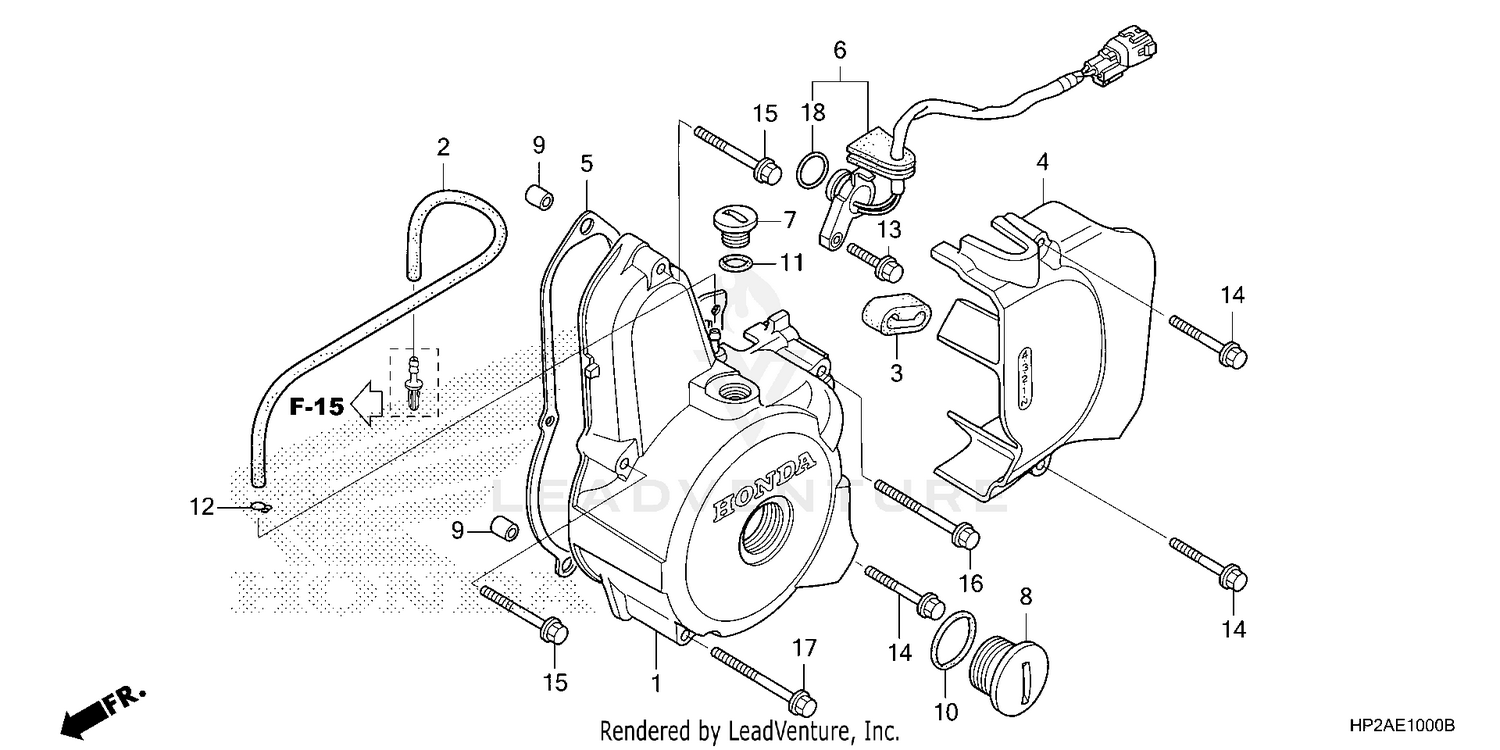

| Ref | Part Number | Description |
|---|
| 1 |
11340-HP2-670 |
COVER, L. CRANKCASE Price: $128.20 |
| 2 |
11344-HP2-670 |
TUBE, BREATHER Price: $4.24 |
| 3 |
11345-HF7-000 |
SLIDER, DRIVE CHAIN Price: $10.98 |
| 4 |
11361-HP2-670 |
COVER, L. RR. CRANKCASE Price: $37.22 |
| 5 |
11395-HP2-670 |
GASKET, L. CRANKCASE COVER Price: $13.67 |
| 6 |
35759-HP2-671 |
CONTACT ASSY., CHANGE SWITCH Price: $100.49 |
| 7 |
90084-GES-000 |
CAP, ALTERNATOR Price: $6.47 |
| 8 |
90087-GES-000 |
CAP (30MM) Price: $9.80 |
| 9 |
90702-KFM-900 |
PIN, DOWEL (8X12) Price: $0.76 |
| 10 |
91301-028-000 |
O-RING (27X2.0) Price: $3.51 |
| 11 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.29 |
| 12 |
95002-02070 |
CLIP, TUBE (B7) CLIP, TUBE (B6.5) Price: $1.83 |
| 13 |
96001-06020-00 |
BOLT, FLANGE (6X20) Price: $1.42 |
| 14 |
96001-06032-00 |
BOLT, FLANGE (6X32) Price: $1.60 |
| 15 |
96001-06040-00 |
BOLT, FLANGE (6X40) Price: $2.27 |
| 16 |
96001-06050-00 |
BOLT, FLANGE (6X50) BOLT, FLANGE (6X55) Price: $2.27 |
| 17 |
96001-06070-00 |
BOLT, FLANGE (6X70) Price: $2.24 |
