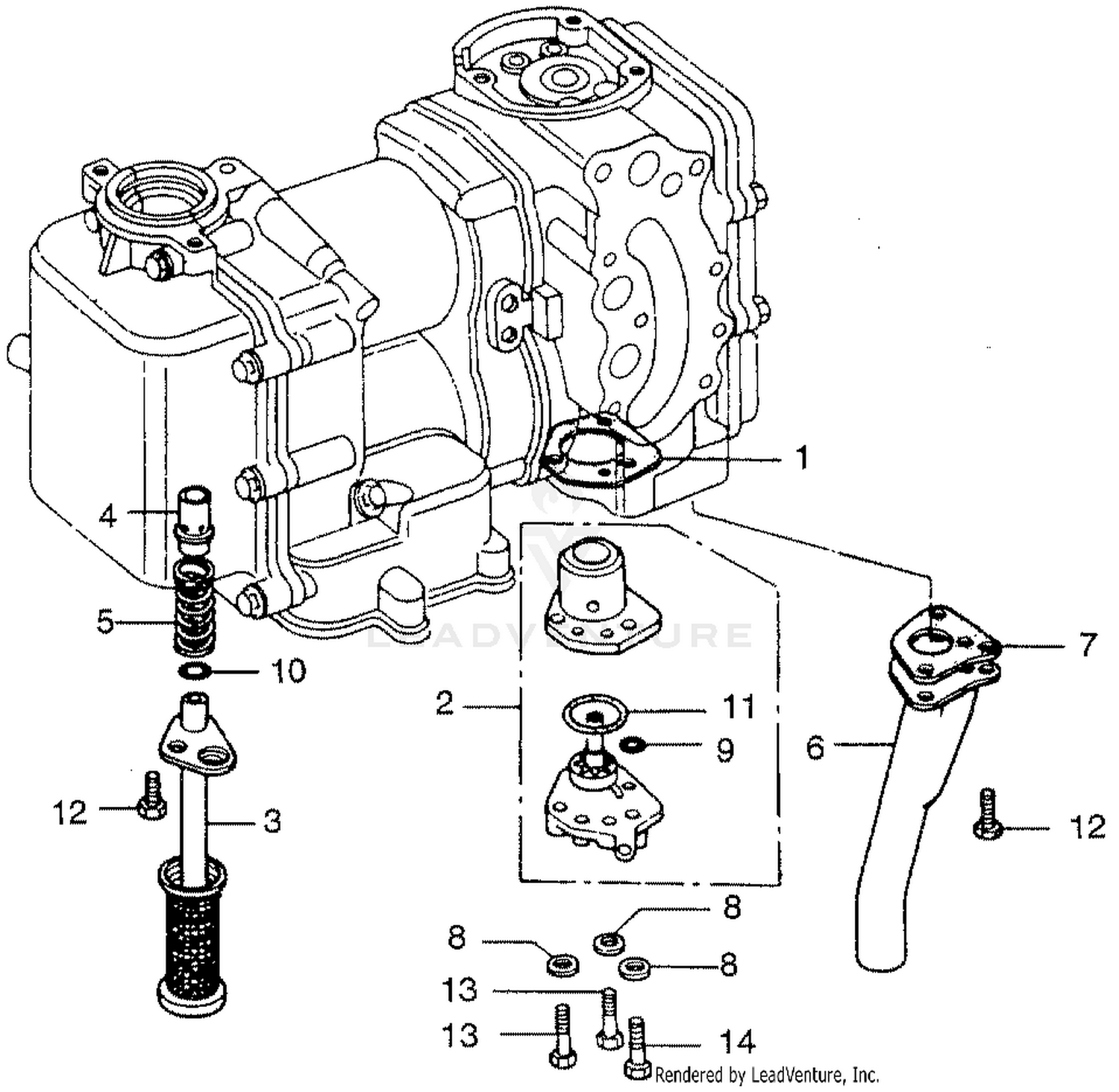

| Ref | Part Number | Description |
|---|
| 1 |
15112-921-020 |
SEE PART DETAILS - SUP; GASKET, PUMP BODY Price: $1.70 |
| 2 |
15200-921-013 |
PUMP ASSY., OIL Price: $139.10 |
| 3 |
15410-935-000 |
FILTER, OIL (NOT AVAILABLE) Price: Call Us |
| 4 |
15473-921-020 |
VALVE, CHECK Price: $12.86 |
| 5 |
15474-921-020 |
SPRING, VALVE Price: $4.80 |
| 6 |
18201-935-030 |
SEE PART DETAILS - PRI; PIPE, EX. (NOT AVAILABLE) Price: $100.04 |
| 7 |
18211-935-000 |
SEE PART DETAILS - SUP; GASKET, EX. PIPE Price: Call Us |
| 8 |
90478-700-000 |
WASHER A (6MM) Price: $0.96 |
| 9 |
91301-216-000 |
O-RING (5.5X1.5) Price: $3.14 |
| 10 |
91301-PC9-003 |
SEE PART DETAILS - PRI; O-RING (7.7X2.3) (ARAI) Price: $4.20 |
| 11 |
91315-935-003 |
O-RING (25X1.0) Price: $3.26 |
| 12 |
92101-06016-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X16) Price: $1.62 |
| 13 |
92201-06028-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X28) This part replaces 92000-06028-02. Price: $2.90 |
| 14 |
92101-06032-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X32) This part replaces 92000-06032-0B. Price: $1.02 |
