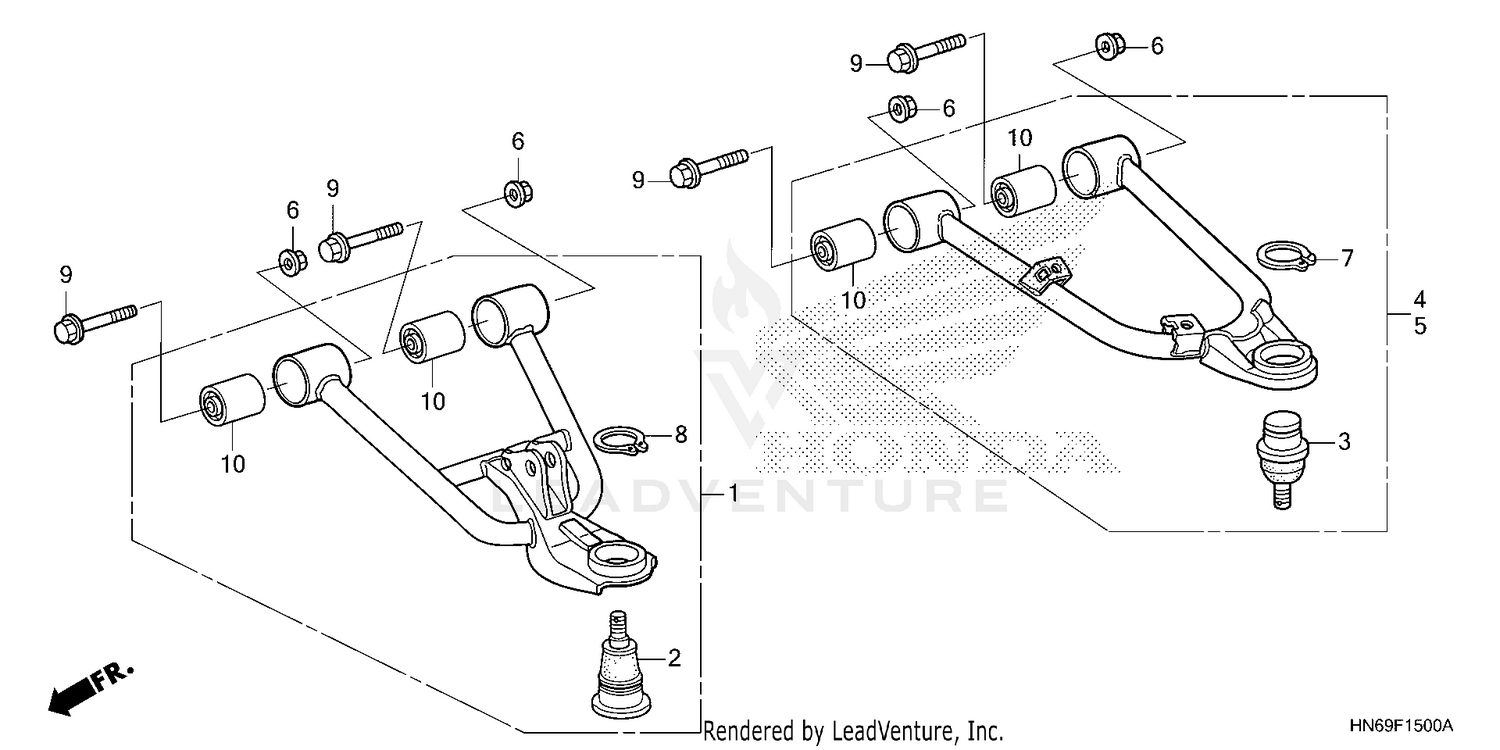

FRONT ARM
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 51350-HS1-A10 | ARM ASSY., FR. (LOWER) Price: $158.27 |
| 2 | 51355-HN6-005 | JOINT A, ARM BALL Price: $85.44 |
| 3 | 51355-HP5-601 | JOINT A, ARM BALL Price: $22.84 |
| 4 | 51370-HS1-A10 | ARM ASSY., R. (UPPER) Price: $100.27 |
| 5 | 51380-HS1-A10 | ARM ASSY., L. (UPPER) Price: $116.93 |
| 6 | 90305-HC0-770 | NUT, SELF-LOCK (10MM) Price: $3.76 |
| 7 | 94514-32000 | CIRCLIP (OUTER) (32MM) Price: $1.15 |
| 8 | 94514-40000 | CIRCLIP (OUTER) (40MM) Price: $2.33 |
| 9 | 90151-HC5-000 | BOLT, FLANGE (10X62) This part replaces 95801-10065-00. Price: $9.74 |
