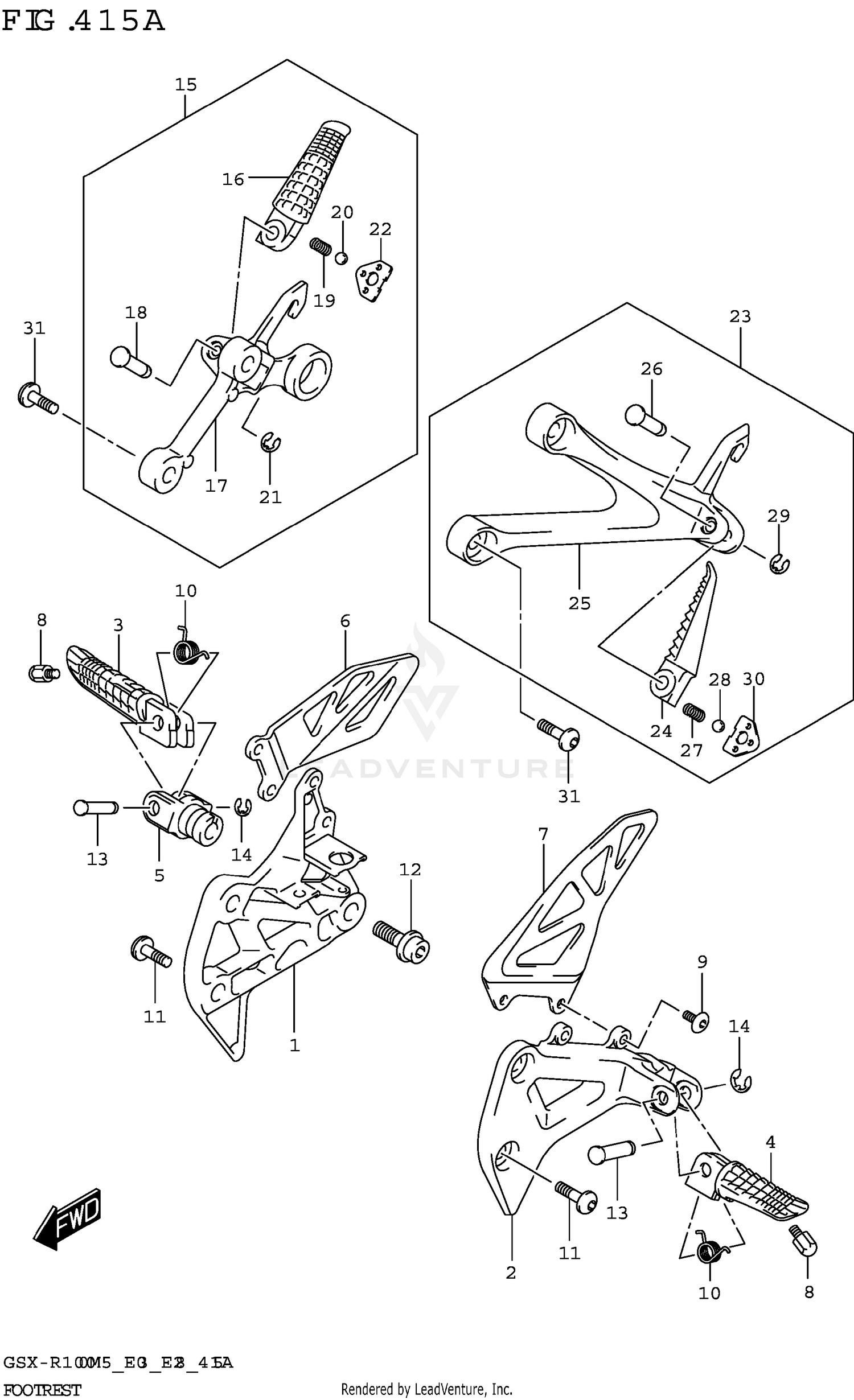

| Ref | Part Number | Description |
|---|
| 1 |
43511-17K00 |
BRACKET,FR FOOTREST,R Price: $128.01 |
| 2 |
43521-17K00 |
BRACKET,FR FOOTREST,L Price: $141.38 |
| 3 |
43516-37H10 |
BAR, FOOTREST RH Price: $41.71 |
| 4 |
43526-37H10 |
BAR, FOOTREST LH Price: $64.33 |
| 5 |
43531-41G20 |
HOLDER, FOOTREST Price: $96.50 |
| 6 |
43571-17K00 |
GUARD,FR FOOTREST,R Price: $93.23 |
| 7 |
43576-17K00 |
GUARD,FR FOOTREST,L Price: $93.23 |
| 8 |
43576-48B40 |
BOLT,BANK SENSOR Price: $14.03 |
| 9 |
43577-35F20 |
SCREW,FOOTREST GUARD,L Price: $4.89 |
| 10 |
43581-47H00 |
SPRING Price: $4.12 |
| 11 |
09106-08200 |
BOLT (8X23) Price: $2.83 |
| 12 |
09106-10064 |
BOLT (10X28) Price: $5.96 |
| 13 |
09208-08018 |
PIN Price: $3.36 |
| 14 |
08332-1106A |
E RING Price: $1.73 |
| 15 |
43600-17K00 |
FOOTREST ASSY,PILLION,R Price: $219.58 |
| 19 |
09440-05005 |
SPRING Price: $1.65 |
| 20 |
06111-07004 |
BALL Price: $1.48 |
| 21 |
08332-1106A |
E RING Price: $1.73 |
| 22 |
43816-01H20 |
PLATE,PILLION FOOTREST RH Price: $7.12 |
| 23 |
43700-17K00 |
FOOTREST ASSY,PILLION,L Price: $218.51 |
| 27 |
09440-05005 |
SPRING Price: $1.65 |
| 28 |
06111-07004 |
BALL Price: $1.48 |
| 29 |
08332-1106A |
E RING Price: $1.73 |
| 30 |
43816-01H20 |
PLATE,PILLION FOOTREST RH Price: $7.12 |
