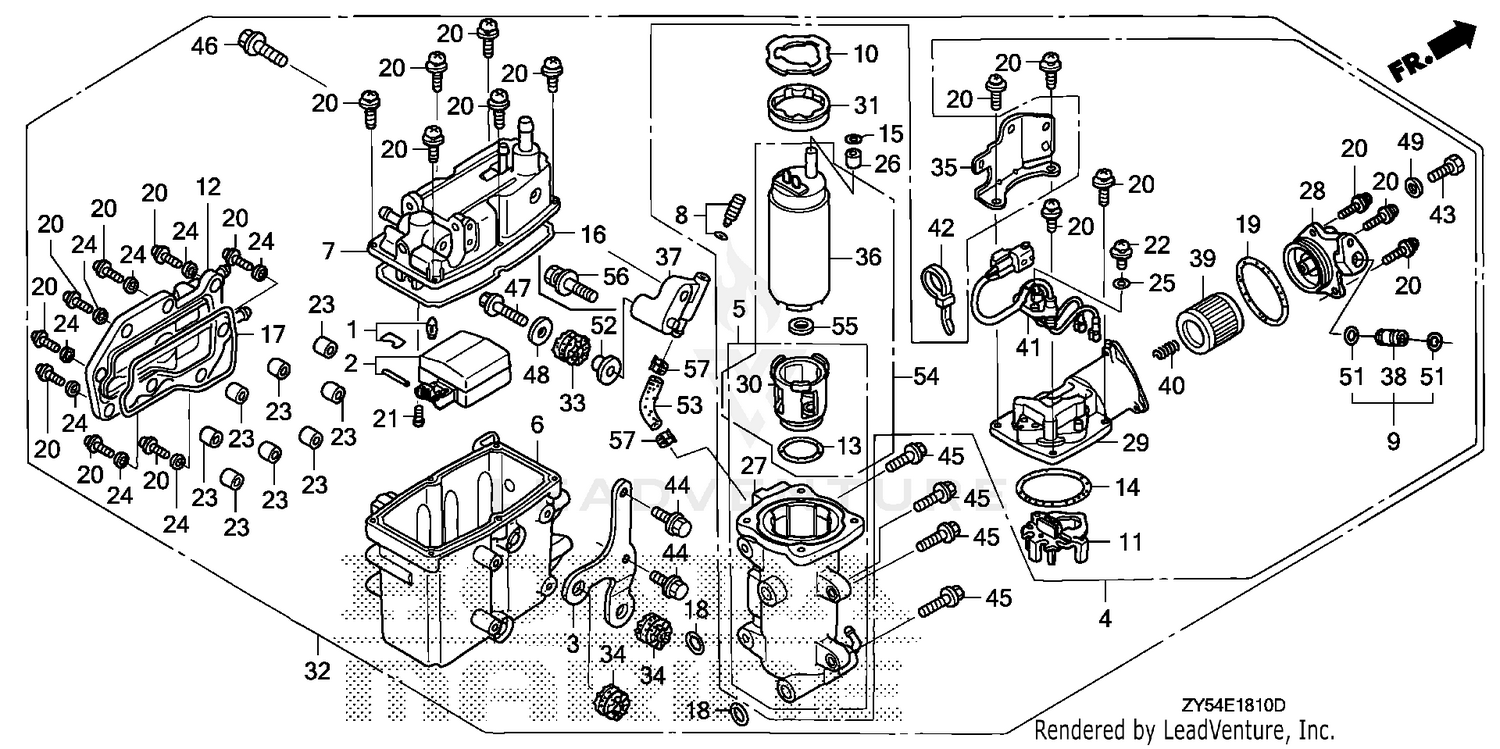

| Ref | Part Number | Description |
|---|
| 1 |
16011-ZY3-A01 |
SEE PART DETAILS - PRI; VALVE SET, FLOAT Price: $58.62 |
| 2 |
16013-ZY3-000 |
FLOAT SET Price: $117.40 |
| 3 |
16014-ZY6-003 |
STAY A, PLATE Price: $40.32 |
| 6 |
16019-ZY6-013 |
BODY, CHAMBER Price: $261.24 |
| 8 |
16024-ZY3-000 |
SEE PART DETAILS - PRI; SCREW SET, DRAIN (CARBURETOR NO.) Price: $16.68 |
| 9 |
16026-ZY3-000 |
JOINT SET Price: $13.00 |
| 10 |
16041-ZY3-000 |
PLATE Price: $10.98 |
| 11 |
16042-ZY3-000 |
HOLDER Price: $14.56 |
| 12 |
16061-ZY3-010 |
COVER, WATER JACKET Price: $40.16 |
| 13 |
16072-ZY3-000 |
O-RING Price: $11.54 |
| 14 |
16073-ZY3-000 |
O-RING Price: $14.40 |
| 15 |
91301-P2F-A01 |
SEE PART DETAILS - PRI; O-RING (7.3X2.2) (NOK) Price: $4.34 |
| 16 |
16075-ZY3-000 |
O-RING Price: $21.80 |
| 17 |
16076-ZY3-000 |
O-RING Price: $14.40 |
| 18 |
16077-ZY3-000 |
O-RING Price: $14.40 |
| 19 |
16078-ZY3-000 |
O-RING Price: $15.70 |
| 20 |
16081-ZW5-010 |
SEE PART DETAILS - PRI; SCREW-WASHER Price: $5.72 |
| 21 |
16082-ZY3-000 |
SCREW, PAN Price: $5.20 |
| 22 |
16083-ZY3-000 |
SCREW, WASHER Price: $4.26 |
| 23 |
16086-ZW5-000 |
COLLAR, SET Price: $4.58 |
| 24 |
16087-ZW5-000 |
WASHER, PLAIN Price: $5.06 |
| 25 |
16087-ZY3-000 |
WASHER, PLAIN Price: $7.58 |
| 26 |
16088-ZY3-000 |
COLLAR Price: $5.76 |
| 27 |
16701-ZY6-003 |
CASE, PUMP Price: $244.84 |
| 28 |
16708-ZW5-003 |
COVER B, PUMP Price: $178.26 |
| 31 |
16721-ZY3-000 |
INSULATOR Price: $31.94 |
| 33 |
16733-ZW5-000 |
GROMMET, VAPOR SEPARATOR Price: $9.10 |
| 34 |
16733-ZY3-000 |
GROMMET, VAPOR SEPARATOR Price: $8.26 |
| 35 |
16734-ZY6-003 |
STAY, PLATE Price: $30.80 |
| 36 |
16735-ZW5-003 |
PUMP UNIT, FUEL (MSDS) Price: $467.02 |
| 37 |
16736-ZY6-003 |
STAY, VAPOR SEPARATOR Price: $53.58 |
| 38 |
16752-ZY3-000 |
JOINT, FUEL PIPE Price: $10.08 |
| 39 |
16911-ZY3-010 |
SEE PART DETAILS - PRI; SCREEN, FUEL STRAINER Price: $69.12 |
| 40 |
16913-ZY3-000 |
SPRING, SET Price: $8.30 |
| 41 |
32166-ZY6-003 |
HARNESS Price: $166.62 |
| 42 |
32168-ZW5-003 |
BAND Price: $2.10 |
| 43 |
90009-PP4-E01 |
BOLT, SEALING (6MM) Price: $9.86 |
| 44 |
90017-ZZ5-M01 |
BOLT, FLANGE (6X16) This part replaces 90017-ZY3-000. Price: $1.70 |
| 45 |
90014-ZZ5-M01 |
BOLT, FLANGE (6X25) Price: $2.56 |
| 46 |
90049-ZVL-010 |
BOLT, FLANGE (8X30) Price: $1.78 |
| 49 |
90430-PD6-003 |
SEE PART DETAILS - PRI; WASHER, SEALING (6MM) Price: $6.04 |
| 51 |
91301-MJ0-003 |
O-RING (7.8X1.9) (ARAI) Price: $2.86 |
| 52 |
91504-ZY9-M03 |
COLLAR (8.5X14.5) Price: $7.74 |
| 53 |
16840-ZY6-A00 |
TUBE F, FUEL Price: $3.06 |
| 54 |
16036-ZY6-003 |
PUMP UNIT, FUEL (B) (MSDS) Price: $471.32 |
| 55 |
16723-ZY6-003 |
RING Price: $13.50 |
