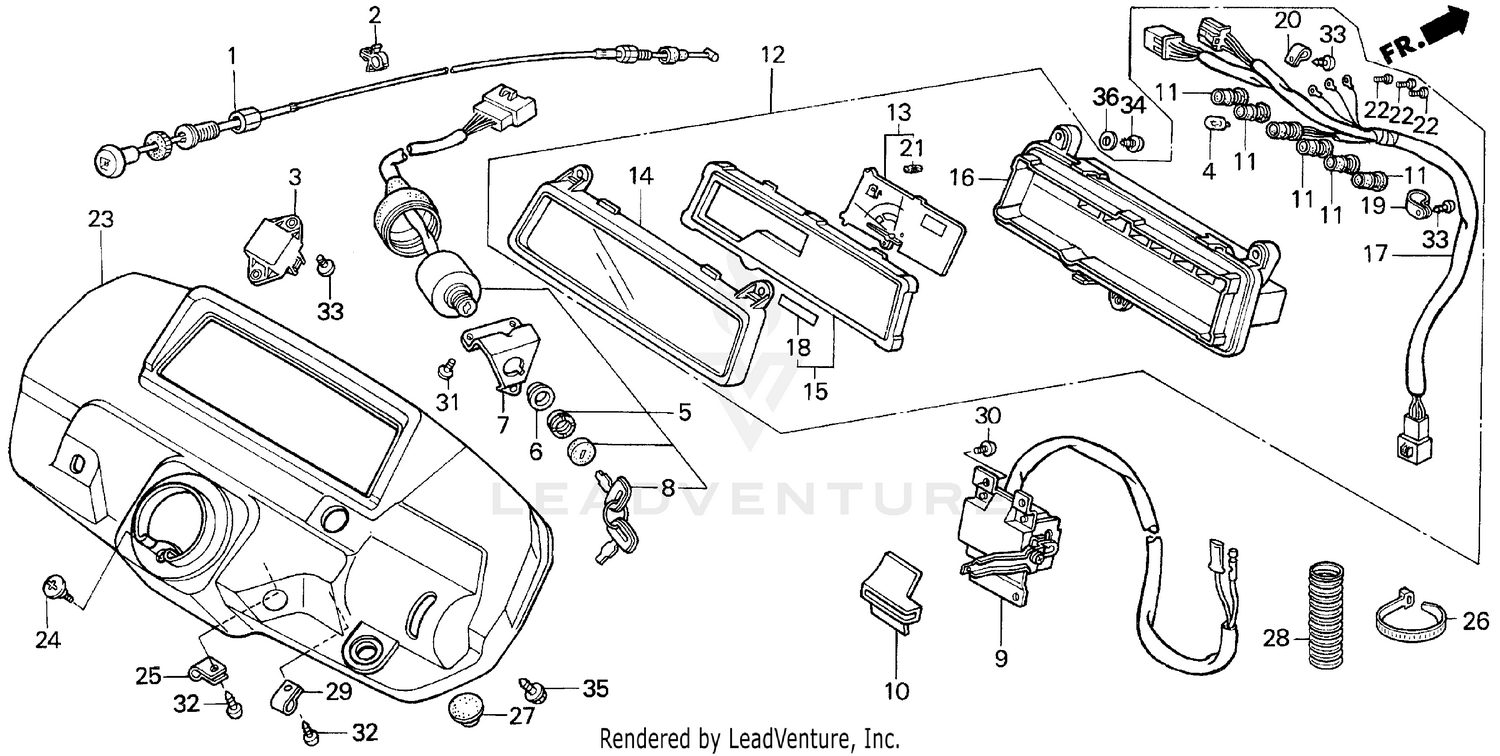

| Ref | Part Number | Description |
|---|
| 1 |
17950-752-630 |
CABLE, CHOKE Price: $27.12 |
| 2 |
30701-883-000 |
SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM) Price: $3.66 |
| 3 |
31640-752-631 |
ALARM UNIT, OIL Price: $94.68 |
| 4 |
34908-MB9-871 |
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY) Price: $3.66 |
| 5 |
35100-752-023 |
SWITCH ASSY., COMBINATION Price: $149.18 |
| 6 |
35101-752-000 |
COLLAR, COMBINATION SWITCH Price: $7.06 |
| 7 |
35102-752-000 |
BASE, COMBINATION SWITCH Price: $7.84 |
| 8 |
35110-VA3-903 |
SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH Price: $10.80 |
| 9 |
35150-752-631 |
SWITCH ASSY., HEADLIGHT Price: Call Us |
| 10 |
35202-752-003 |
KNOB, TURN SIGNAL SWITCH Price: $7.46 |
| 11 |
37116-KG4-008 |
CAP A Price: $1.90 |
| 12 |
37150-752-B31 |
METER ASSY., FUEL Price: $194.64 |
| 13 |
37151-752-631 |
METER, FUEL Price: $95.40 |
| 14 |
37154-752-003 |
GLASS Price: $36.34 |
| 15 |
37156-752-B31 |
PLATE, REFLECTING Price: $33.06 |
| 16 |
37157-752-003 |
CASE Price: $97.50 |
| 17 |
37158-752-631 |
SOCKET Price: $57.28 |
| 18 |
37159-752-B30 |
MARK, EMBLEM (E) Price: $3.02 |
| 19 |
37215-MB6-831 |
CLAMP Price: $3.32 |
| 20 |
37215-752-631 |
CLAMP Price: $2.16 |
| 21 |
37304-KM7-911 |
RUBBER, CUSHION Price: $11.04 |
| 22 |
37305-KE5-008 |
SCREW-WASHER (3X22) Price: $3.62 |
| 23 |
77210-752-630ZA |
PANEL, INSTRUMENT *NH105* (MAT BLACK) Price: Call Us |
| 24 |
90123-750-000 |
SCREW, METER VISOR SETTING Price: $4.76 |
| 25 |
90628-750-000 |
CLIP (14MM) Price: $2.90 |
| 26 |
90674-WA8-003 |
BAND, CABLE (120MM) (BLACK) Price: $4.02 |
| 27 |
90851-752-630 |
PLUG, INSTRUMENT PANEL Price: $4.16 |
| 28 |
91407-752-000 |
TUBE, CORRUGATED (22X100) Price: $5.58 |
| 29 |
91475-SB6-000 |
CLIP, WIRE HARNESS (6.3MM) Price: $10.58 |
| 30 |
93901-24220 |
SCREW, TAPPING (4X10) Price: $4.04 |
| 31 |
93903-24220 |
SCREW, TAPPING (4X10) Price: $1.14 |
| 32 |
93903-24220 |
SCREW, TAPPING (4X10) Price: $1.14 |
| 33 |
93903-24420 |
SCREW, TAPPING (4X16) Price: $1.14 |
| 34 |
93903-26420 |
SCREW, TAPPING (6X25) Price: $1.40 |
| 35 |
93904-36280 |
SCREW, TAPPING (6X16) Price: $1.66 |
