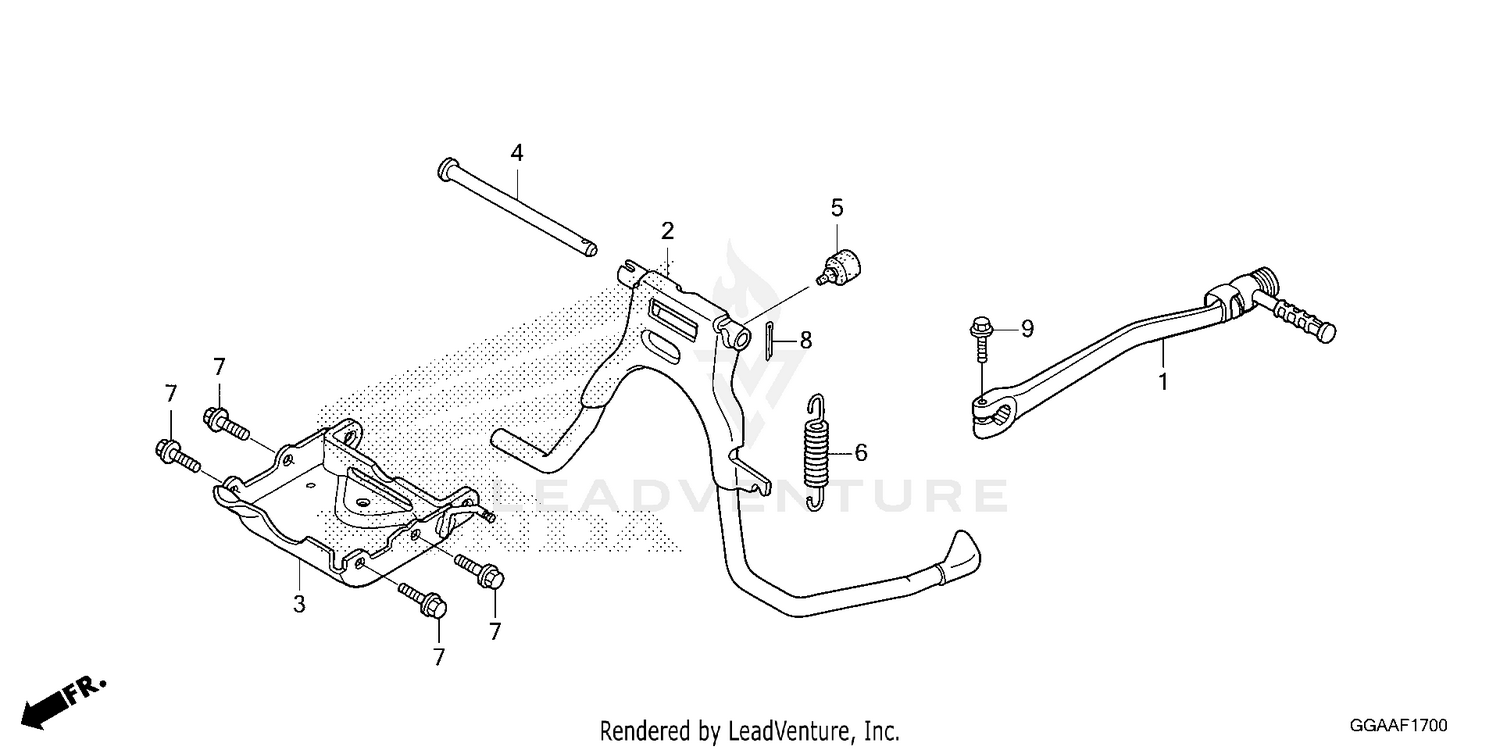

STAND@KICK STARTER ARM
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 28300-GET-010 | ARM ASSY., KICK STARTER Price: $84.36 |
| 2 | 50500-GEZ-305 | STAND, MAIN (COO) This part replaces 50500-GEZ-010. Price: $83.65 |
| 3 | 50501-GEZ-010 | BRACKET, MAIN STAND Price: $38.84 |
| 4 | 50503-GBL-000 | SHAFT, MAIN STAND Price: $5.24 |
| 5 | 50505-GEZ-000 | RUBBER, STAND STOPPER Price: $2.20 |
| 6 | 50520-GW2-000 | SPRING, MAIN STAND Price: $5.09 |
| 7 | 90103-MW3-670 | BOLT, FLANGE (8X20) Price: $4.76 |
| 8 | 94201-25300 | PIN, SPLIT (2.5X30) This part replaces 94201-25200. Price: $1.08 |
