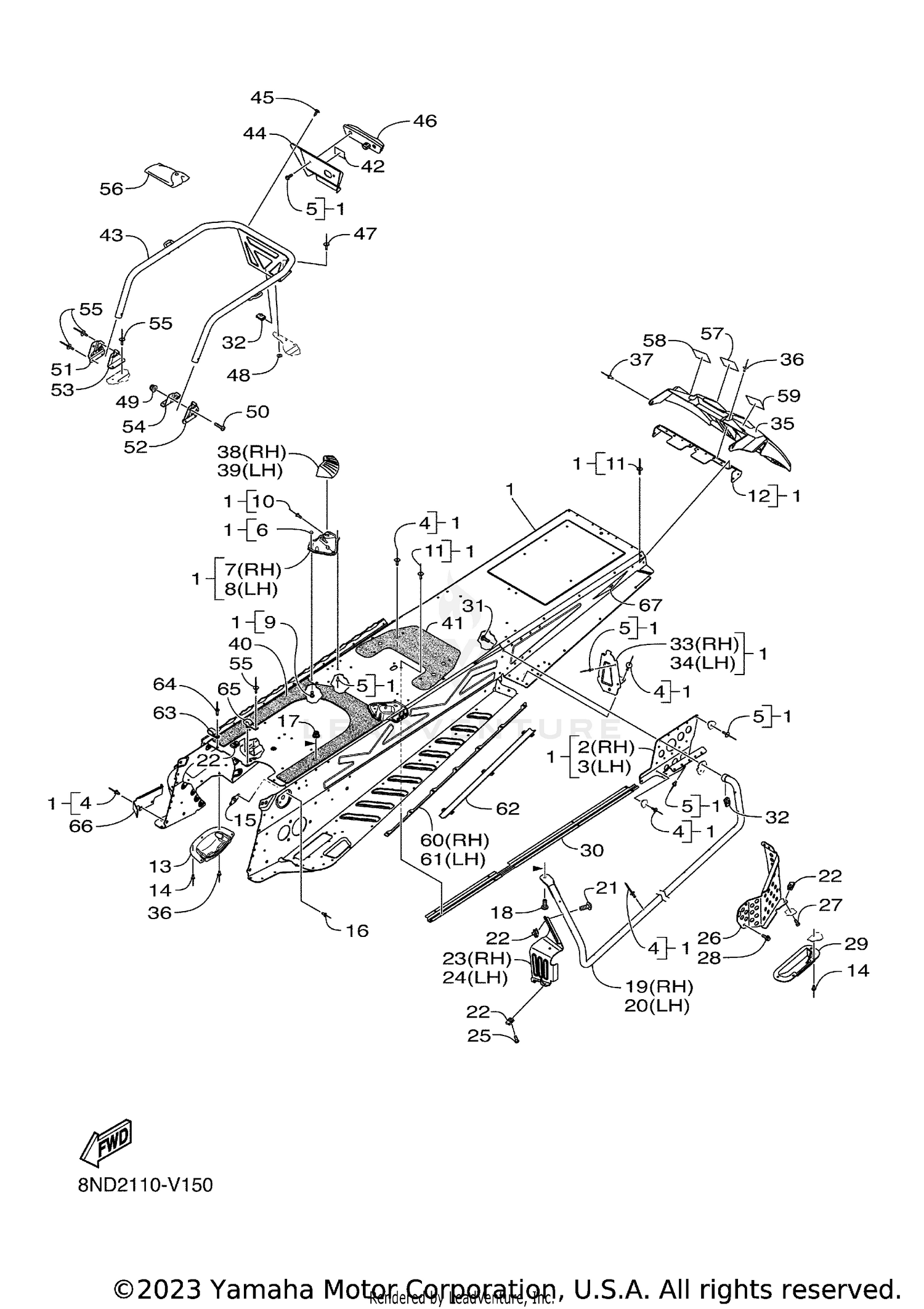

| Ref | Part Number | Description |
|---|
| 1 |
8ND-F1950-10-00 |
REAR FRAME COMP. Price: $1,728.99 |
| 2 |
8ND-F1954-00-00 |
BRACKET,RR.TRACK S Price: $127.99 |
| 3 |
8ND-F1944-00-00 |
BRACKET,RR.TRACK S Price: $127.99 |
| 6 |
8JP-RA370-00-00 |
NUT, HEX. LOCKING Price: $0.70 |
| 7 |
8JW-F115M-00-00 |
BRACKET, MEMBER 2 Price: $42.99 |
| 8 |
8JW-F115L-00-00 |
BRACKET, MEMBER 1 Price: $42.99 |
| 9 |
8JP-RA241-00-00 |
SCREW, M5X0.8X12 Price: $1.80 |
| 12 |
8ND-F1923-00-00 |
REINEFORCEMENT, FR Price: $56.99 |
| 13 |
8JP-F2147-00-00 |
PROTECTOR, CHAIN Price: $8.49 |
| 14 |
8JP-RA523-00-00 |
RIVET, 14 Price: $1.30 |
| 15 |
8JP-F1919-00-00 |
BRACKET Price: $40.99 |
| 16 |
8JP-RA519-00-00 |
RIVET, 10 Price: $0.60 |
| 17 |
8JM-RA301-00-00 |
NUT, SELF-LOCKING M8-1.25 Price: $1.15 |
| 18 |
8JP-RA272-00-00 |
SCREW, M8X1.25X20 Price: $0.70 |
| 19 |
8MJ-F192E-00-00 |
REINFORCEMENT, FRAME Price: $205.99 |
| 20 |
8MJ-F1929-00-00 |
REINFORCEMENT, FRAME SIDE Price: $205.99 |
| 21 |
8JP-RA247-00-00 |
SCREW, M5X0.8X35 Price: $1.35 |
| 22 |
8JP-RA353-00-00 |
NUT, CLIP M5 Price: $3.60 |
| 23 |
8JW-F1996-00-00 |
REINFORCEMENT SUB FRAME FRONT 2 Price: $41.99 |
| 24 |
8JW-F1995-00-00 |
REINFORCEMENT SUB FRAME FRONT 1 Price: $40.99 |
| 25 |
8JP-RA251-00-00 |
SCREW, M5X1.0X16 Price: $0.55 |
| 26 |
8LN-F5718-00-00 |
PROTECTOR, DISC BRAKE Price: $48.99 |
| 27 |
8JP-RA244-00-00 |
SCREW, M5X0.8X20 Price: $0.60 |
| 28 |
8JP-RA179-00-00 |
BOLT, FLANGE M6X1.0X12 Price: $2.25 |
| 29 |
8JP-F5717-00-00 |
PROTECTOR, DISC BRAKE Price: $18.49 |
| 30 |
8MG-H258A-00-00 |
EXTENSION, WIRE HARNESS Price: $19.49 |
| 31 |
8JP-RA261-00-00 |
SCREW, M6X1.0X20 Price: $0.75 |
| 32 |
8JP-RA354-00-00 |
NUT, CLIP M6 Price: $1.30 |
| 35 |
8LN-K7595-00-00 |
FLAP Price: $43.99 |
| 36 |
8JP-RA524-00-00 |
RIVET, 15 Price: $2.30 |
| 37 |
8LN-RA525-00-00 |
RIVET, 16 Price: $1.45 |
| 38 |
8JP-F2556-00-00 |
SUPPORT, FUEL TANK 2 Price: $28.99 |
| 39 |
8JP-F2555-00-00 |
SUPPORT, FUEL TANK 1 Price: $27.99 |
| 40 |
8MJ-K8261-00-00 |
PLATE, BODY PROTECT 1 Price: $41.99 |
| 41 |
8MJ-F4141-00-00 |
PROTECTOR, FUEL TANK Price: $29.99 |
| 42 |
8ND-F817R-00-00 |
LABEL, LOAD LIMIT Price: $20.99 |
| 43 |
8ND-K8341-00-00 |
FRAME, LUGGAGE RAC Price: $240.99 |
| 44 |
8ND-F117E-00-00 |
BRACKET, TAILLIGHT Price: $56.99 |
| 45 |
8KC-RA290-00-00 |
SCREW Price: $2.25 |
| 46 |
8JP-H4500-00-00 |
TAILLIGHT ASSY Price: $73.99 |
| 47 |
8ML-RA514-00-00 |
RIVET, 5 Price: $0.60 |
| 48 |
8ML-RA400-00-00 |
WASHER, PLAIN Price: $3.45 |
| 49 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 50 |
8JP-RA1B4-10-00 |
BOLT, FLANGE Price: $3.25 |
| 51 |
8LN-K7531-00-00 |
BRACKET, FRONT Price: $30.99 |
| 52 |
8LN-K7532-00-00 |
BRACKET, FRONT (R.H) Price: $30.99 |
| 53 |
8LN-K7533-00-00 |
BRACKET, REAR (L.H) Price: $30.99 |
| 54 |
8LN-K7534-00-00 |
BRACKET, REAR (R.H) Price: $30.99 |
| 56 |
8ND-F8100-00-00 |
TOOL KIT Price: $86.99 |
| 57 |
8ND-F817S-00-00 |
LABEL, PULLING LOA Price: $18.49 |
| 58 |
8JP-K7762-70-00 |
LABEL, WARNING 2 (ENGLISH) Price: $3.75 |
| 59 |
8JP-K7762-S0-00 |
LABEL, WARNING 2 (FRENCH) Price: $3.35 |
| 60 |
8ND-F1926-00-00 |
REINFORCEMENT, FOO Price: $50.99 |
| 61 |
8ND-F1927-00-00 |
REINFORCEMENT, RR. Price: $50.99 |
| 62 |
8KT-H2589-00-00 |
PROTECTER, WIRE HARNESS Price: $19.99 |
| 63 |
8ND-RAB15-00-00 |
CLAMP 13 Price: $13.49 |
| 64 |
8ND-RA525-00-00 |
RIVET, 16 Price: $1.35 |
| 65 |
8ND-RAB16-00-00 |
CLAMP 16 Price: $19.99 |
| 66 |
8ND-F194X-00-00 |
BRACKET,1 Price: $21.99 |
