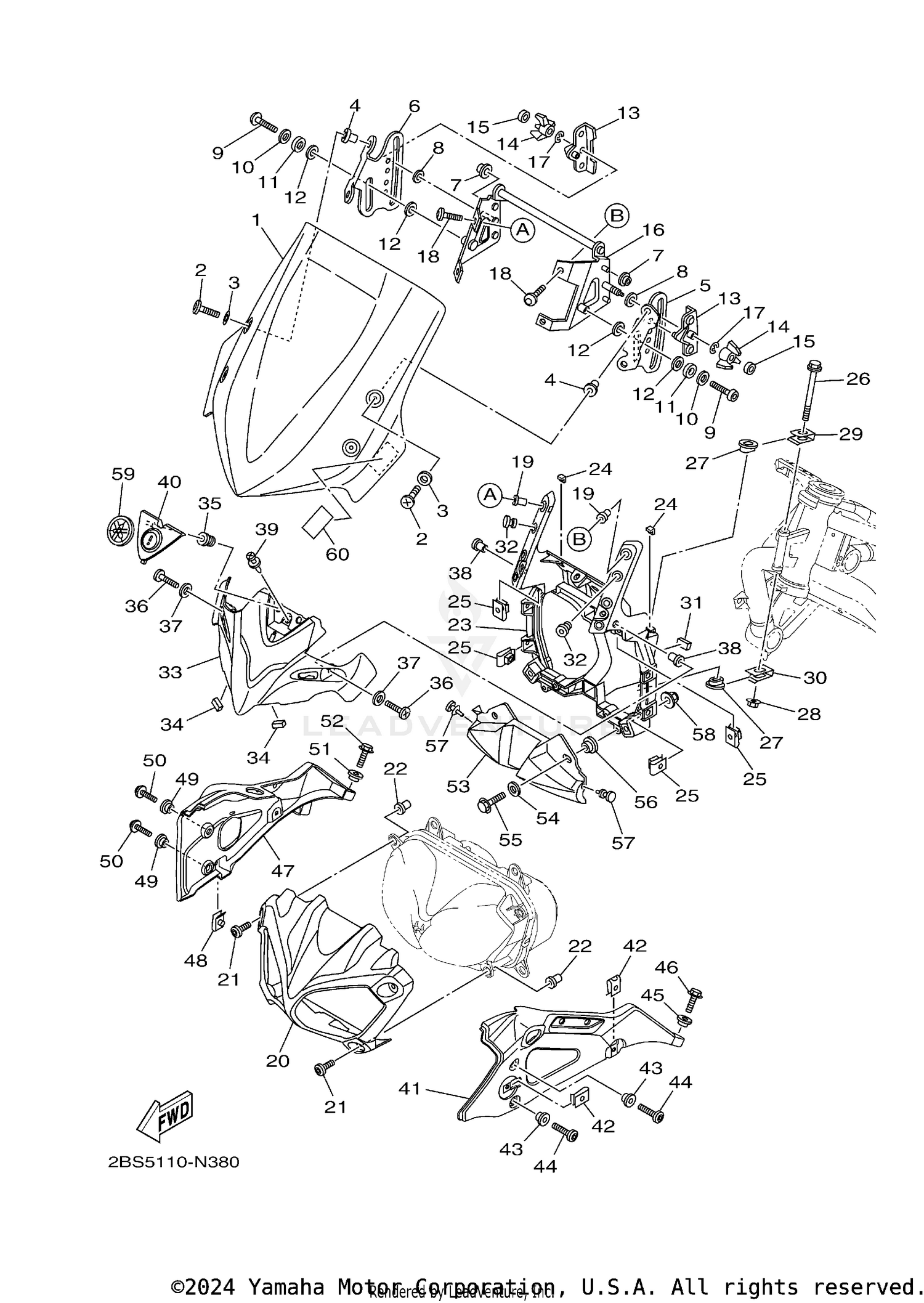

| Ref | Part Number | Description |
|---|
| 1 |
2BS-28381-20-00 |
WINDSHIELD Price: $482.99 |
| 2 |
90154-05011-00 |
SCREW, BINDING Price: $4.95 |
| 3 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 4 |
90179-05003-00 |
NUT Price: $6.49 |
| 5 |
2BS-2831U-00-00 |
STAY, SIDE 1 Price: $41.99 |
| 6 |
2BS-2832U-00-00 |
STAY, SIDE 1 Price: $38.99 |
| 7 |
90386-07MA2-00 |
BUSH Price: $3.55 |
| 8 |
90202-07015-00 |
WASHER, PLATE (122-21725-00) Price: $9.49 |
| 9 |
92017-06016-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 10 |
90201-06021-00 |
WASHER, PLATE Price: $1.30 |
| 11 |
90430-12072-00 |
GASKET Price: $6.70 |
| 12 |
90201-123F2-00 |
WASHER, PLATE Price: $11.49 |
| 13 |
2BS-2831E-00-00 |
STAY, GUIDE 1 Price: $8.49 |
| 14 |
2BS-26383-00-00 |
NUT, ADJUSTING Price: $21.99 |
| 15 |
2BS-28349-00-00 |
CAP Price: $4.80 |
| 16 |
2BS-2831R-00-00 |
STAY, MAIN 1 Price: $149.99 |
| 17 |
99080-03600-00 |
CIRCLIP This part replaces 99002-03600-00. Price: $3.55 |
| 18 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 19 |
90179-05523-00 |
NUT Price: $7.49 |
| 20 |
23P-2835G-00-00 |
BODY, FRONT UPPER 1 Price: $68.99 |
| 21 |
90111-06038-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.65 |
| 22 |
90179-06520-00 |
NUT Price: $9.49 |
| 23 |
23P-28356-01-00 |
STAY 1 Price: $166.99 |
| 24 |
90520-02005-00 |
DAMPER, PLATE Price: $6.49 |
| 25 |
90183-060A1-00 |
NUT, SPRING Price: $10.49 |
| 26 |
90105-085A5-00 |
BOLT, FLANGE Price: $8.49 |
| 27 |
5PS-28373-01-00 |
COLLAR Price: $17.99 |
| 28 |
95707-08500-00 |
NUT,FLANGE (JN5) Price: $1.95 |
| 29 |
23P-28336-00-00 |
PLATE Price: $8.49 |
| 30 |
23P-28397-00-00 |
PLATE 2 Price: $14.49 |
| 31 |
23P-28344-00-00 |
TAPE Price: $7.49 |
| 32 |
90338-10132-00 |
PLUG Price: $3.80 |
| 33 |
2BS-283M3-00-00 |
DEFLECTOR Price: $28.99 |
| 34 |
1HX-28227-00-00 |
DAMPER, 2 Price: $10.99 |
| 35 |
90480-10003-00 |
GROMMET Price: $9.49 |
| 36 |
90154-05011-00 |
SCREW, BINDING Price: $4.95 |
| 37 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 38 |
90179-05003-00 |
NUT Price: $6.49 |
| 39 |
90269-06081-00 |
RIVET Price: $8.49 |
| 40 |
2BS-83559-00-00 |
COVER, METER Price: $8.49 |
| 41 |
23P-2837L-00-00 |
PANEL, CONSOLE 1 Price: $63.99 |
| 42 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 43 |
90387-06048-00 |
COLLAR Price: $9.49 |
| 44 |
90111-06051-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 45 |
90387-08080-00 |
COLLAR Price: $10.49 |
| 46 |
95814-08016-00 |
BOLT, FLANGE This part replaces 95822-08016-00. Price: $10.49 |
| 47 |
23P-2837M-00-00 |
PANEL, CONSOLE 2 Price: $65.99 |
| 48 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 49 |
90387-06048-00 |
COLLAR Price: $9.49 |
| 50 |
90111-06051-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 51 |
90387-08080-00 |
COLLAR Price: $10.49 |
| 52 |
95814-08016-00 |
BOLT, FLANGE This part replaces 95822-08016-00. Price: $10.49 |
| 53 |
2BS-28365-01-00 |
COVER This part replaces 2BS-28365-00-00. Price: $11.99 |
| 54 |
90201-061A5-00 |
WASHER, PLATE Price: $8.49 |
| 55 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95807-06025-00. Price: $1.75 |
| 56 |
90387-06200-00 |
COLLAR Price: $8.49 |
| 57 |
90480-04166-00 |
GROMMET Price: $12.49 |
| 58 |
90176-06016-00 |
NUT, CAP Price: $4.20 |
| 59 |
8GC-2836B-02-00 |
TUNING FORK MARK Price: $43.99 |
