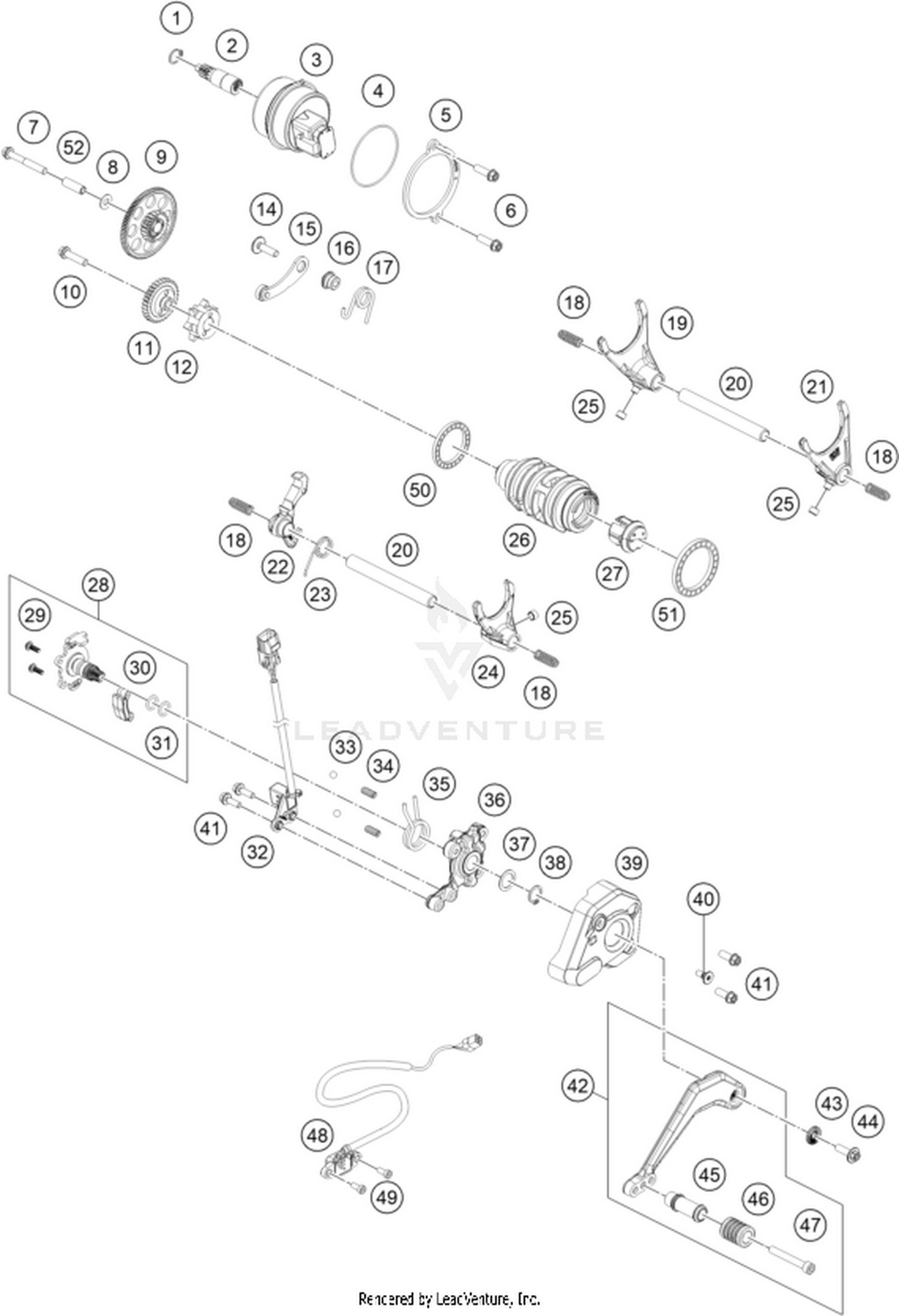

34 SHIFTING MECHANISM
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A62634027000 | Actuator shaft Price: Call Us |
| 3 | A62634045000 | Actuator Price: Call Us |
| 4 | 0770005615000 | O-ring 56x1.5 NBR70 Price: Call Us |
| 5 | A62634045010 | Shift drum actuator Price: Call Us |
| 6 | 0025060206S | HH collar screw M6x20 TX30 Price: Call Us |
| 7 | 0000250604500S | Hex coll. screw M6x45 ISA30 se Price: Call Us |
| 9 | A62634040000 | Double gear Price: Call Us |
| 10 | 0025060256S | SK-BUNDSCHRAUBE M6X25 ISA30 Price: Call Us |
| 11 | A62634012010 | Gear wheel shift drum Price: Call Us |
| 12 | A62634015000 | Shift star cmpl. Price: Call Us |
| 14 | 0900000602201S | Collar screw M6x22 Price: Call Us |
| 15 | 61434024000 | LOCKING LEVER CPL. Price: Call Us |
| 16 | A62634029000 | Bearing pin for detent arm Price: Call Us |
| 17 | 0102701400300 | Detent arm spring Price: Call Us |
| 18 | 58038023400 | Compression spring L=25mm D=0. Price: Call Us |
| 19 | 61734001000 | Shift fork 1/4 gear Price: Call Us |
| 20 | 59034020000 | SHIFT RAIL 11,8X105MM Price: Call Us |
| 21 | 61734002000 | Shift fork 2/3 gear Price: Call Us |
| 22 | A62634126000 | Locking pawl Price: Call Us |
| 23 | 0102701500200 | Locking pawl spring Price: Call Us |
| 24 | 61734003000 | Shift fork 5/6 gear Price: Call Us |
| 25 | 50334018100 | SHIFTING ROLLER 6X8X5,2 Price: Call Us |
| 26 | A62634012000 | Shift drum cmpl. Price: Call Us |
| 27 | 79234012020 | Magnet bracket cmpl. Price: Call Us |
| 29 | 0081040121 | EJOT Delta PT K40x12 Price: Call Us |
| 30 | A62634050000 | Magnet bracket Price: Call Us |
| 31 | 0036011020000 | O--Ring 10x2 NBR 70 Price: Call Us |
| 32 | 63534051000 | Shift assistant sensor Price: Call Us |
| 37 | 0009881405000 | Shim ring DIN988 14x20x0.5 Price: Call Us |
| 38 | 0004711410001 | Lock ring DIN471 14x1 Price: Call Us |
| 40 | 69013099150 | Screw, reservoir Price: Call Us |
| 41 | 0025050166S | HH Collar Screw M5x16 ISA30 SS Price: Call Us |
| 42 | A62634031033C1 | Gear shift lever cmpl. Price: Call Us |
| 43 | 50233041500 | PAIR NORDLOCK WASHER M6 Price: Call Us |
| 44 | 0024060206S | HH collar screw M6x20 TX30 Price: Call Us |
| 45 | A63934032000 | Gear shift lever tip Price: Call Us |
| 46 | 61034035000 | RUBBER FOR SHIFT LEVER 05 Price: Call Us |
| 47 | 0912060453 | AH SCREW DIN0912-M 6X45 Price: Call Us |
| 48 | A60011023000 | Gear position sensor Price: Call Us |
| 49 | 0984050143S | CYL. SCREW DIN6912 M5X14 8.8 Price: Call Us |
| 50 | 0625618050 | BALL BEARING 61805 C3 Price: Call Us |
| 51 | 0625068080 | GROOVED BALL BEARING 6808 JRC3 Price: Call Us |
