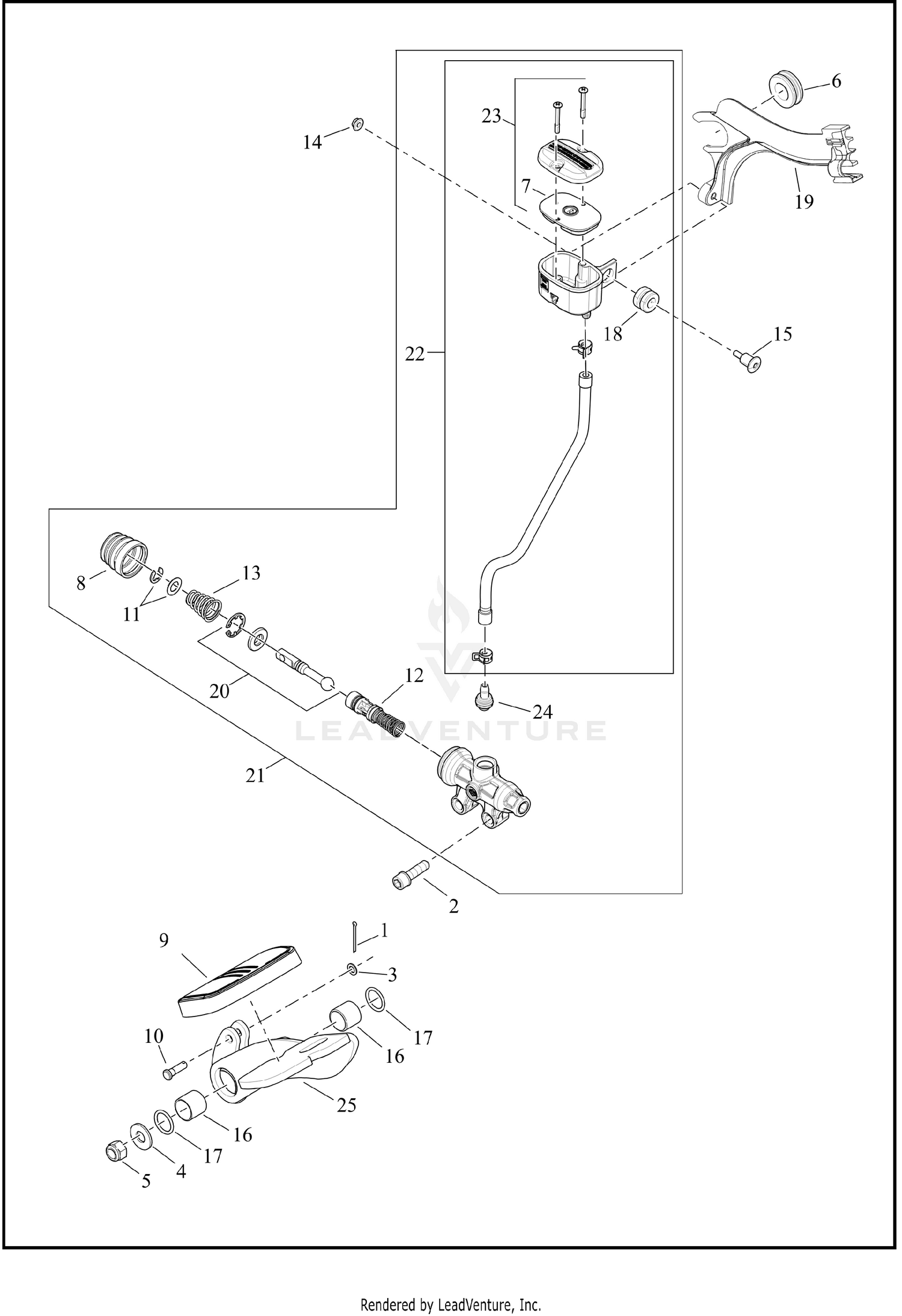

| Ref | Part Number | Description |
|---|
| 1 |
515 |
PIN,COTTER Price: $0.59 |
| 2 |
2479 |
SCREW,HEX SOCKET HEAD CAP, SEMS Price: $7.07 |
| 3 |
6220W |
WASHER Price: $1.22 |
| 4 |
6416 |
WASHER,PLAIN,TYPE-A Price: $0.55 |
| 5 |
7825 |
NUT HEX LOCK Price: $1.22 |
| 6 |
11445 |
GROMMET Price: $2.11 |
| 7 |
11902 |
GASKET,COVER,MSTR CYL Price: $7.66 |
| 8 |
12102 |
DUST BOOT Price: $6.36 |
| 9 |
50503116 |
GUARD,HEEL PAD,BRAKEPEDAL Price: $9.05 |
| 10 |
42460-80B |
PIN,CLEVIS Price: $2.41 |
| 11 |
42889-06 |
RETENT SPRING, MASTER CYLINDER Price: $4.71 |
| 12 |
42932-08A |
KIT-REPAIR,MSTR CYL,TOURING(PO) Price: $43.03 |
| 13 |
42934-08 |
SPRING,PEDAL RETURN Price: $6.80 |
| 14 |
7492 |
NUT,KEPS,HEX/METRIC Price: $0.59 |
| 15 |
10500114 |
SCREW,CUST,M5,SHOULDERED,RSVR Price: $12.14 |
| 16 |
11000050 |
BUSHING(PO) Price: $6.95 |
| 17 |
11900021 |
O-RING,X Price: $0.70 |
| 18 |
12100124 |
GROMMET,14MM Price: $1.34 |
| 19 |
41600379 |
BRKT,BRK MTG,RESERVOIR MOUNT Price: $40.59 |
| 20 |
41700195 |
PUSHROD KIT,RR MSTR CYL Price: $11.23 |
| 24 |
41700582 |
KIT,BRK,OUTLET,MA CYL,RR Price: $6.80 |
