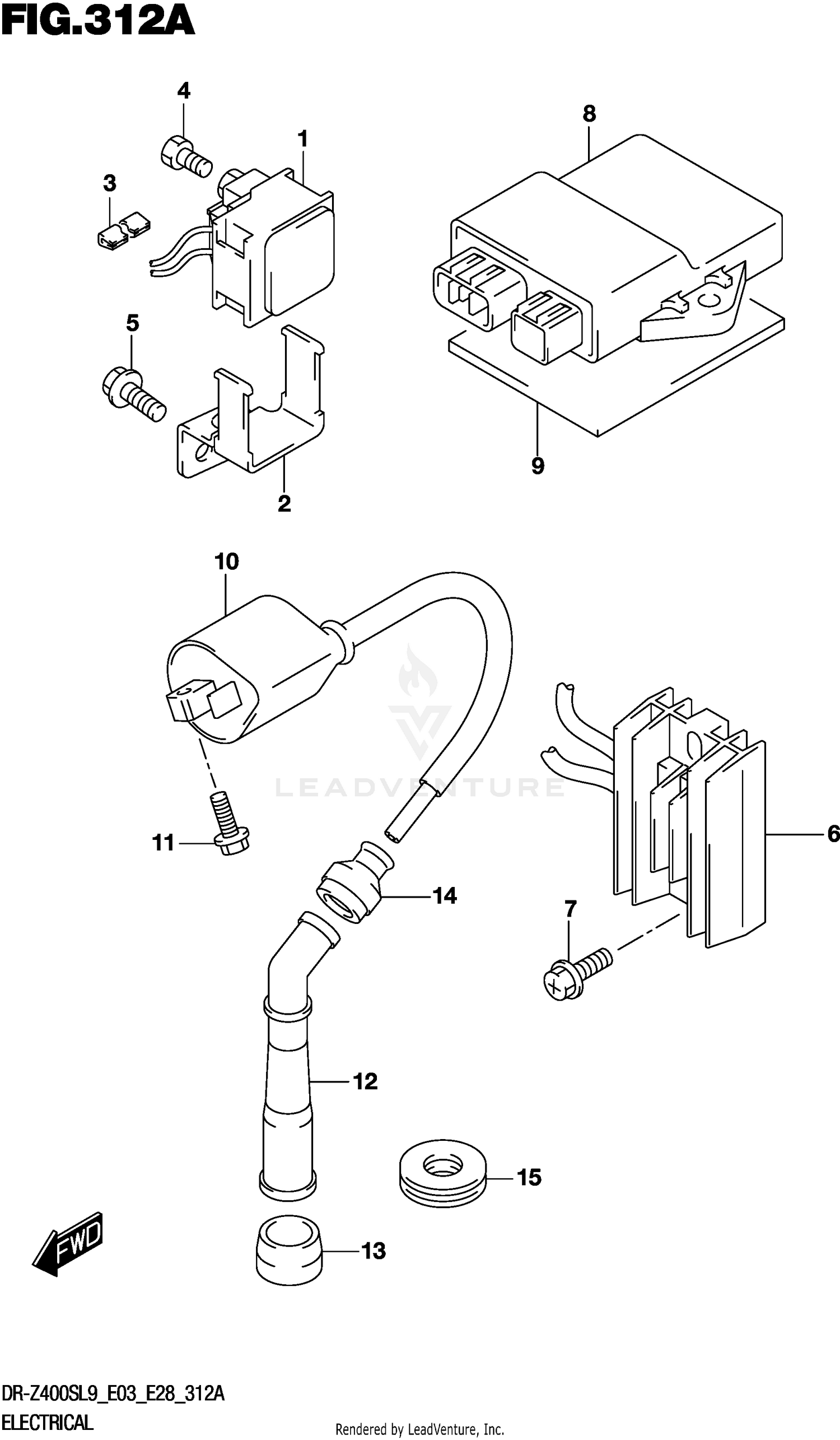

ELECTRICAL
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-29F01 | RELAY ASSY,STARTING MOTOR This part replaces 31800-29F00. Price: $78.00 |
| 2 | 31811-29F00 | BRACKET STARTING MOTOR RELAY Price: $7.69 |
| 3 | 31812-29F00 | PROTECTOR STARTING MOTOR LEAD Price: $6.13 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 01550-0612A | BOLT Price: $2.37 |
| 6 | 32800-29F00 | RECTIFIER ASSY Price: $281.26 |
| 7 | 02162-0620B | SCREW Price: $2.56 |
| 8 | 32900-29F40 | CDI UNIT Price: $835.10 |
| 9 | 33652-36000 | CUSHION (30X50X3) Price: $2.75 |
| 10 | 33410-09F00 | COIL ASSY IGNITION Price: $118.02 |
| 11 | 01547-0616B | BOLT Price: $2.94 |
| 12 | 33510-48B10 | CAP,SPARK PLUG Price: $39.25 |
| 13 | 33541-23E10 | SEAL,SPARK PLUG Price: $8.32 |
| 14 | 33542-38B00 | SEAL, HIGH TENSION Price: $5.36 |
