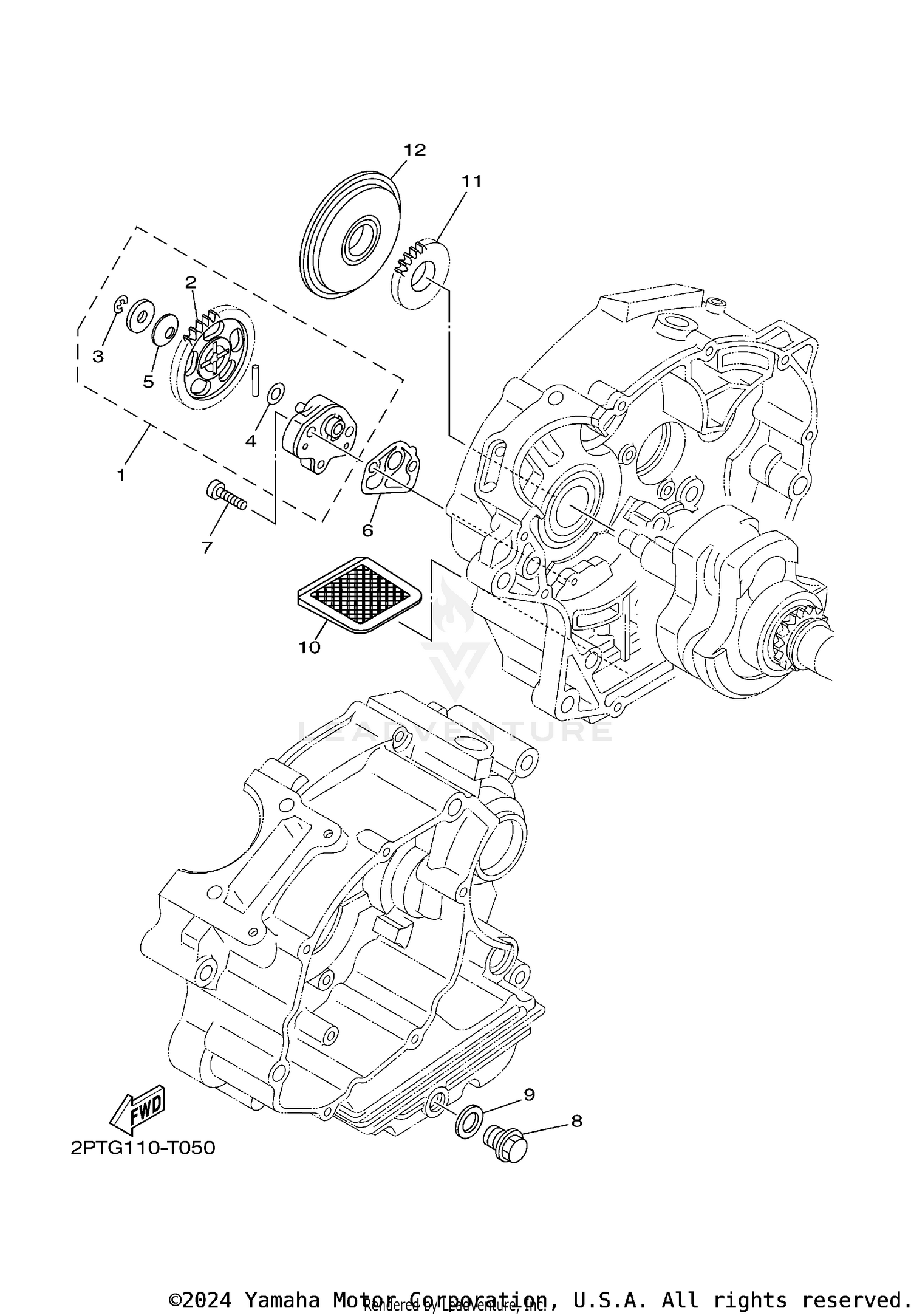

OIL PUMP
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5VL-E3300-01-00 | OIL PUMP ASSY Price: $186.99 |
| 2 | 5VL-E3325-00-00 | GEAR, PUMP DRIVEN Price: $9.49 |
| 3 | 93430-05823-00 | CIRCLIP Price: $2.35 |
| 4 | 90201-07641-00 | WASHER, PLATE Price: $5.49 |
| 5 | 90208-07052-00 | WASHER, CONICAL SPRING Price: $4.75 |
| 6 | 5HH-E3329-00-00 | GASKET, PUMP COVER Price: $0.45 |
| 7 | 90155-06002-00 | SCREW, FLAT FILLISTE This part replaces 90155-06800-00. Price: $0.70 |
| 8 | 90340-12097-00 | PLUG, STRAIGHT SCREW Price: $3.35 |
| 9 | 90430-12207-00 | GASKET This part replaces 90430-12227-00. Price: $8.49 |
| 10 | 4S9-E3411-00-00 | STRAINER, OIL This part replaces 4LS-E3411-00-00. Price: $4.55 |
| 11 | 1B2-E3324-00-00 | GEAR, PUMP DRIVE Price: $25.99 |
