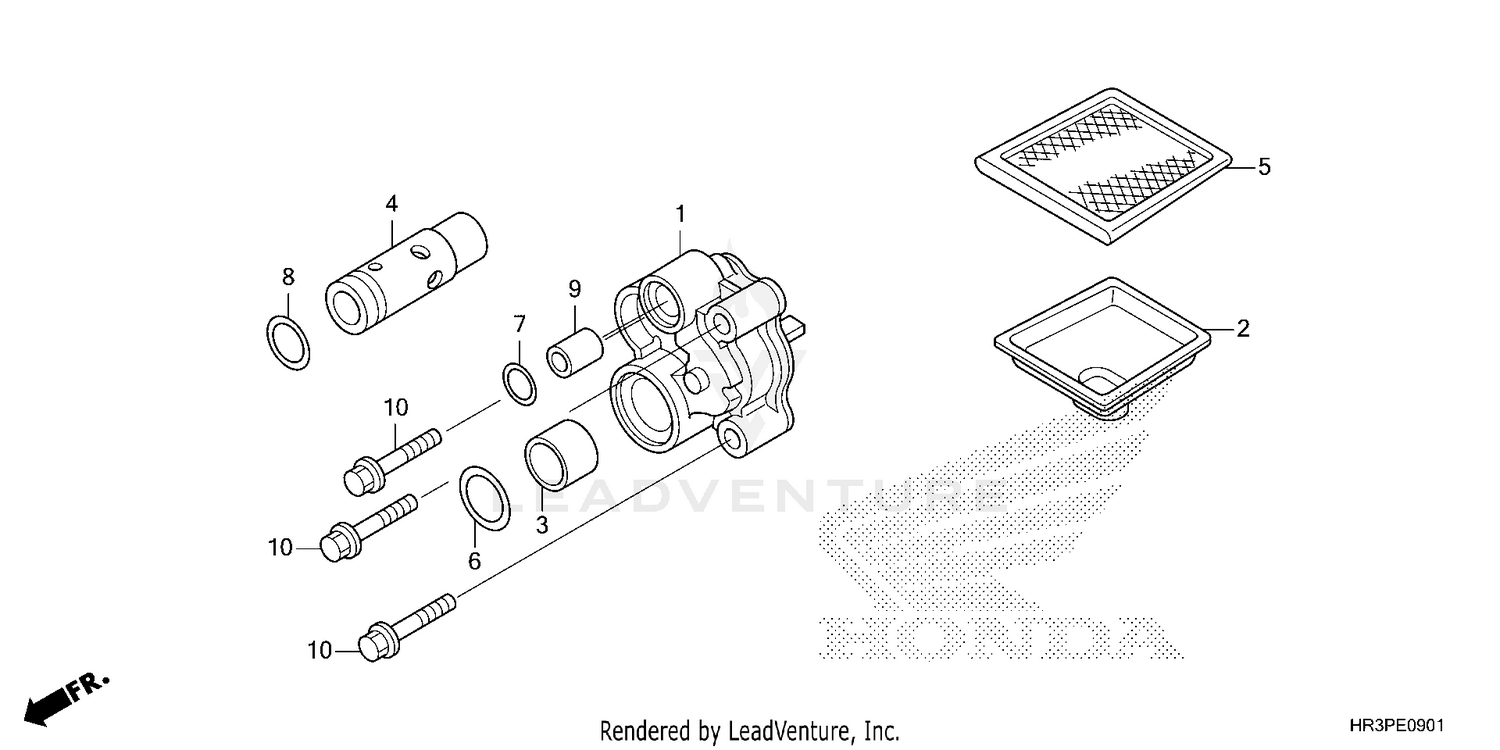

OIL PUMP (2)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 15100-HR3-A40 | PUMP ASSY., OIL Price: $75.22 |
| 2 | 15153-HR0-F00 | STRAINER, OIL Price: $8.22 |
| 3 | 15155-HP0-A00 | COLLAR, O-RING Price: $3.78 |
| 4 | 15220-HP5-600 | VALVE ASSY., RELIEF Price: $31.02 |
| 5 | 15421-HR3-A40 | SCREEN, OIL FILTER Price: $14.11 |
| 6 | 91302-377-000 | O-RING (15X2.5) (Honda Code 0386995) Price: $6.67 |
| 7 | 91304-HA5-003 | O-RING (10X2) (ARAI) Price: $4.93 |
| 8 | 91313-MG7-004 | O-RING (14.8X2.2) This part replaces 91313-MB0-003. Price: $4.62 |
| 9 | 94301-10160 | PIN, DOWEL (10X16) (Honda Code 0058206) Price: $2.58 |
