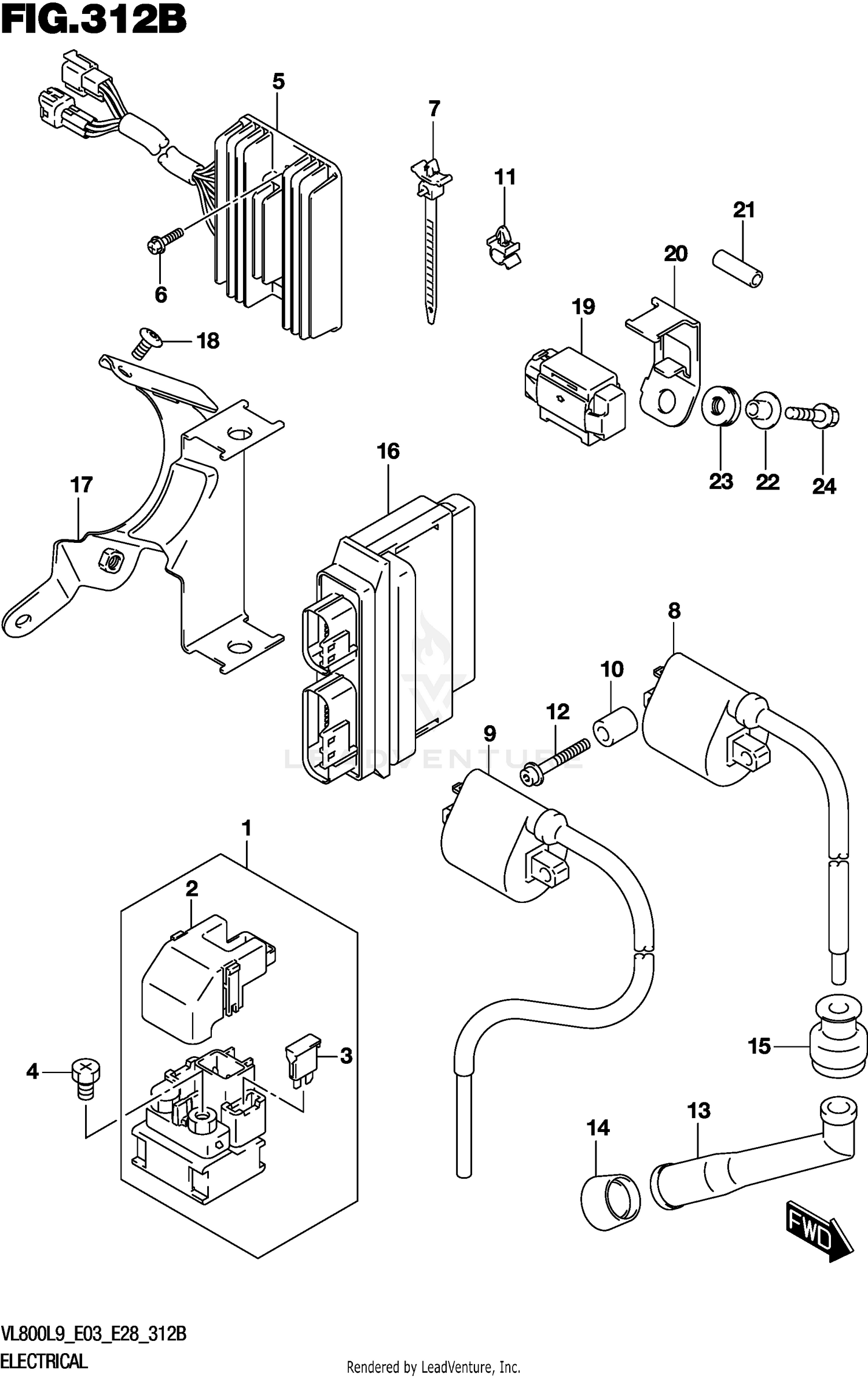

| Ref | Part Number | Description |
|---|
| 1 |
31800-21E30 |
RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20. Price: $83.16 |
| 4 |
09128-06013 |
SCREW (6X8) Price: $1.50 |
| 5 |
32800-47H00 |
RECTIFIER ASSY Price: $325.09 |
| 6 |
02162-0620B |
SCREW Price: $2.56 |
| 7 |
09407-11402 |
CLAMP (L:90) Price: $2.20 |
| 8 |
33410-17G01 |
COIL ASSY, IGNITION Price: $92.65 |
| 9 |
33420-41F11 |
COIL ASSY,IGNITION This part replaces 33420-41F10. Price: $93.36 |
| 10 |
09180-06195 |
SPACER (6.4X10X18) Price: $4.54 |
| 11 |
09403-07308 |
CLAMP Price: $2.18 |
| 12 |
09106-05033 |
BOLT (5X35) Price: $3.68 |
| 13 |
33510-11410 |
CAP ASSY, SPARK PLUG (CENTER) Price: $32.06 |
| 14 |
33541-47D00 |
SEAL,SPARK PLUG Price: $9.67 |
| 15 |
33542-38B00 |
SEAL, HIGH TENSION Price: $5.36 |
| 16 |
32920-39GH0 |
CONTROL UNIT Price: $1,564.75 |
| 17 |
44880-43H00 |
BRACKET,FI CONT UNIT Price: $21.50 |
| 18 |
09139-06108 |
SCREW (6X12) Price: $2.48 |
| 19 |
33960-06G10 |
SENSOR ASSY, FUEL CUT Price: $111.08 |
| 20 |
33961-41F00 |
BRACKET,FUEL CUT SENSOR Price: $3.58 |
| 22 |
09180-06325 |
SPACER (6.2X8.4X6.9) Price: $4.68 |
| 23 |
09320-08516 |
CUSHION (8X18X5.8) This part replaces 09320-06017. Price: $2.58 |
