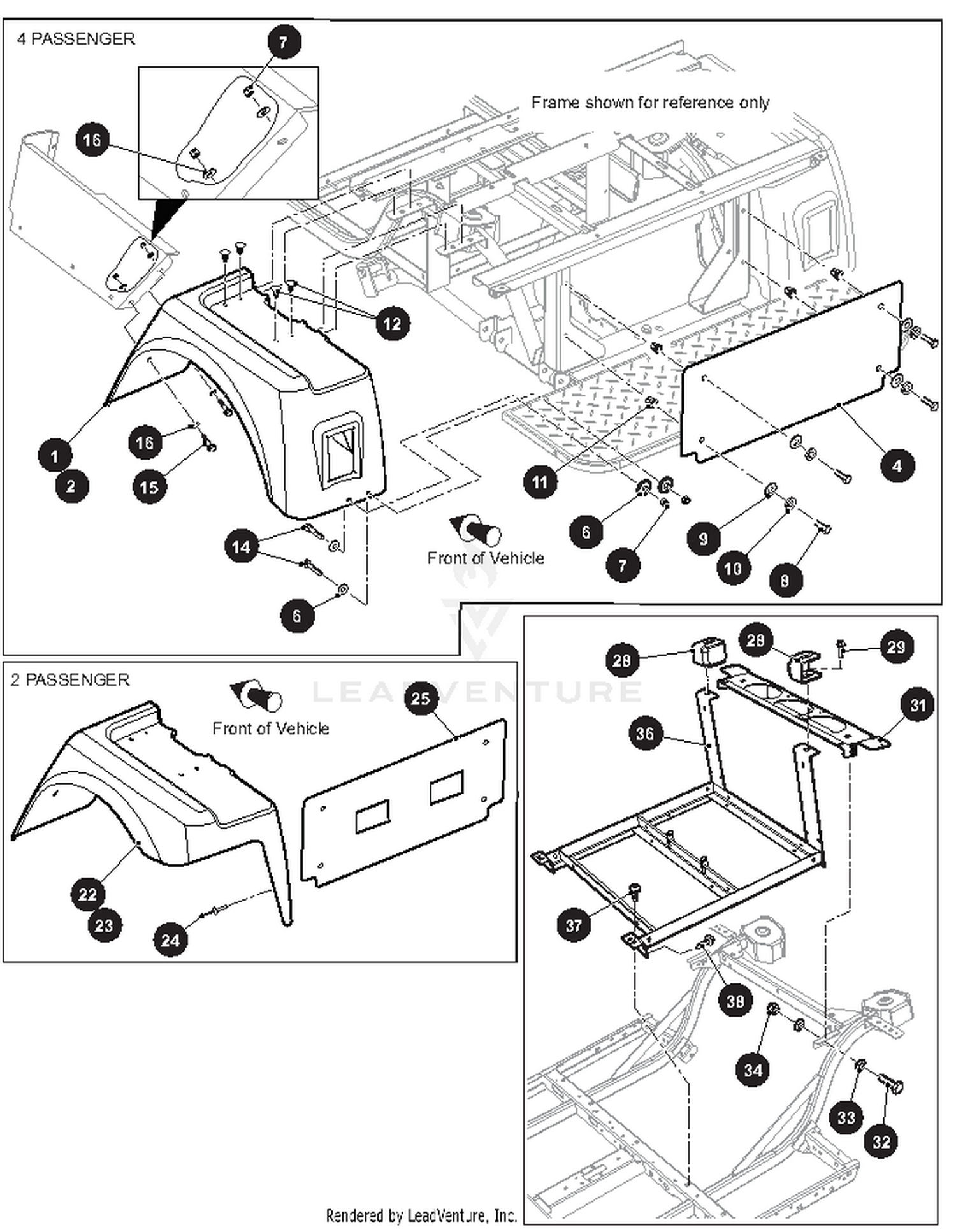

| Ref | Part Number | Description |
|---|
| 1 |
629186G01 |
FENDER,REAR LH Price: $117.79 |
| 2 |
629186G05 |
FENDER FLARE REAR,4P RH Price: $154.99 |
| 4 |
629417G03 |
BRACKET,REAR CLOSEOUT Price: $91.99 |
| 6 |
00793G2 |
FLAT WASHER, 1/4" Price: $1.99 |
| 7 |
14390G4 |
LOCK NUT,1/4"-20 Price: $1.99 |
| 8 |
00427G2 |
HEX HEAD BOLT, 3/8-16 X 1 1/4 Price: $3.99 |
| 9 |
00643G1 |
FLAT WASHER, 3/8 X 1.0 X .063 Price: $0.99 |
| 11 |
641848 |
NUT,INSERT,HEX,3/8-16 THREAD Price: $1.79 |
| 12 |
16816G2 |
RATCHET RIVET, .25X.887 Price: $0.99 |
| 14 |
303459 |
HEX HEAD BOLT, 1/4-20X1 1/2" Price: $0.99 |
| 15 |
00414G6 |
HEX HEAD BOLT, 1/4-20 X 3/4 Price: $2.99 |
| 16 |
00642G7 |
FLAT WASHER, 1/4" Price: $2.99 |
| 22 |
629186G03 |
SVC - FENDER,REAR,TRUCK-LH Price: $119.04 |
| 23 |
629186G05 |
FENDER FLARE REAR,4P RH This part replaces 629186G06. Price: $154.99 |
| 24 |
10570G11 |
BREAK RIVET, 3/16", DOMED Price: $3.99 |
| 25 |
629417G04 |
SVC-BRACKET,REAR CLOSEOUT,CUT OUT Price: $89.21 |
| 28 |
629351 |
BRKT,FRAME,SEAT Price: $24.12 |
| 29 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 31 |
71262G04 |
SEAT BACK SUPPORT Price: $109.99 |
| 32 |
00438G8 |
HEX HEAD BOLT, 5/16-18 X 1 Price: $2.99 |
| 33 |
00642G8 |
FLAT WASHER, 5/16" Price: $2.99 |
| 34 |
11098G6 |
LOCK NUT, 5/16"-18 Price: $2.99 |
| 36 |
652254G03 |
BATTERY RACK Price: $210.99 |
| 37 |
70200G01 |
TRUSS HEAD TORX SCREW, 3/8-16X3/4 Price: $3.99 |
