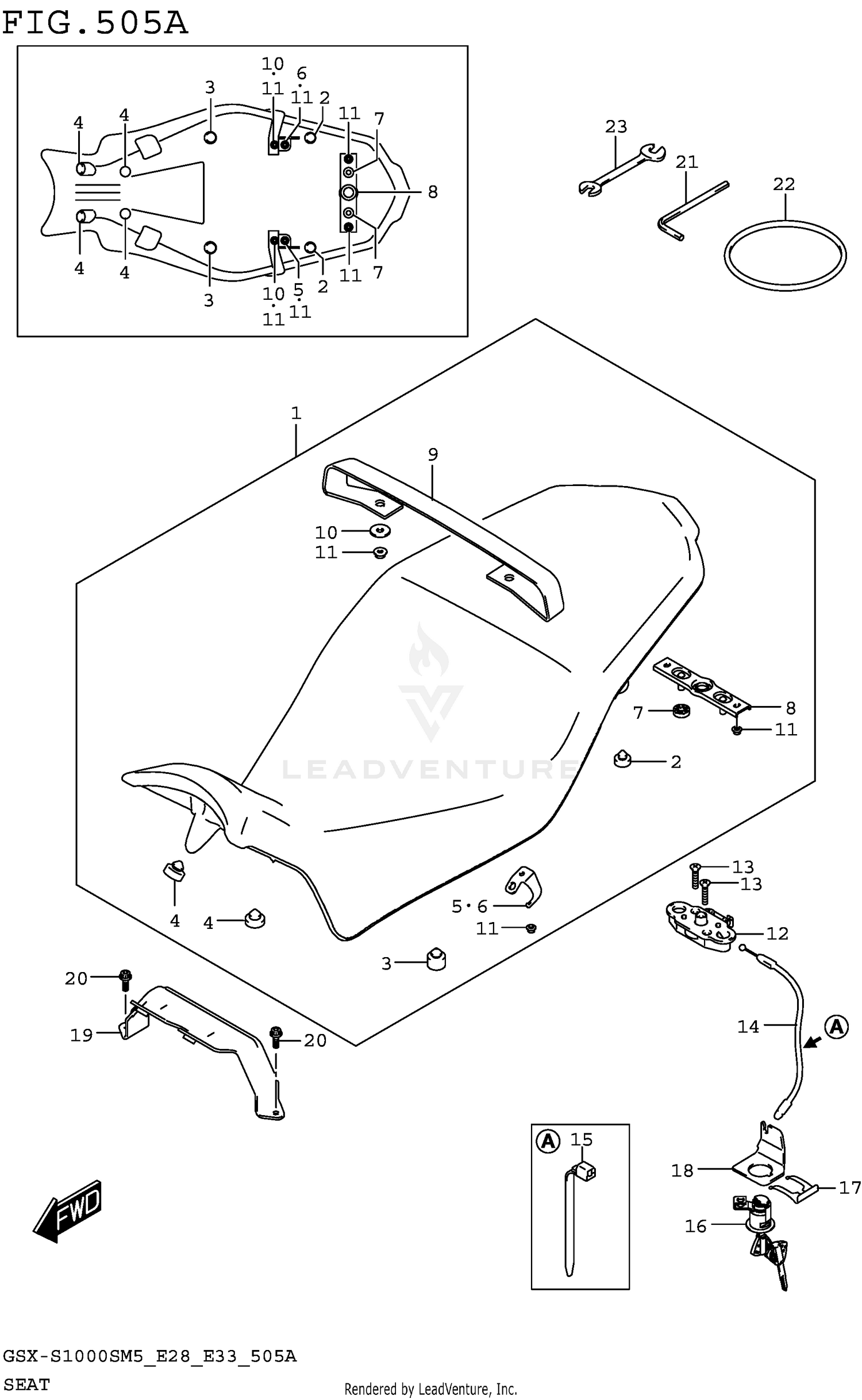

SEAT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 45100-07L03-CCS | SEAT ASSY (BLACK/GLAY) Price: Call Us |
| 7 | 33652-20C00 | PROTECTOR (50X50X5) This part replaces 33652-21G00. Price: $3.69 |
| 10 | 09160-06088 | WASHER (6.5X20X1.6) Price: $2.02 |
| 11 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 12 | 45220-47H00 | BRACKET,SEAT SUPPORT Price: $149.46 |
| 13 | 02122-0630A | SCREW Price: $2.12 |
| 14 | 45280-07L00 | CABLE, SEAT LOCK Price: $12.19 |
| 15 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 16 | 95700-14810 | LOCK SET,SEAT Price: $132.54 |
| 17 | 45289-11F00 | PLATE,SEAT LOCK ASSY Price: $7.66 |
| 18 | 45288-14F00 | GUIDE,SEAT LOCK CABLE Price: $6.63 |
| 19 | 45130-07L00 | BRACKET, SEAT Price: $33.03 |
| 20 | 07120-0612A | BOLT Price: $3.02 |
| 21 | 96514-17K00 | SPANNER,HEXAGON (5) Price: $5.15 |
| 22 | 09280-57003 | O RING (D:3.5,ID:56.5) Price: $5.54 |
