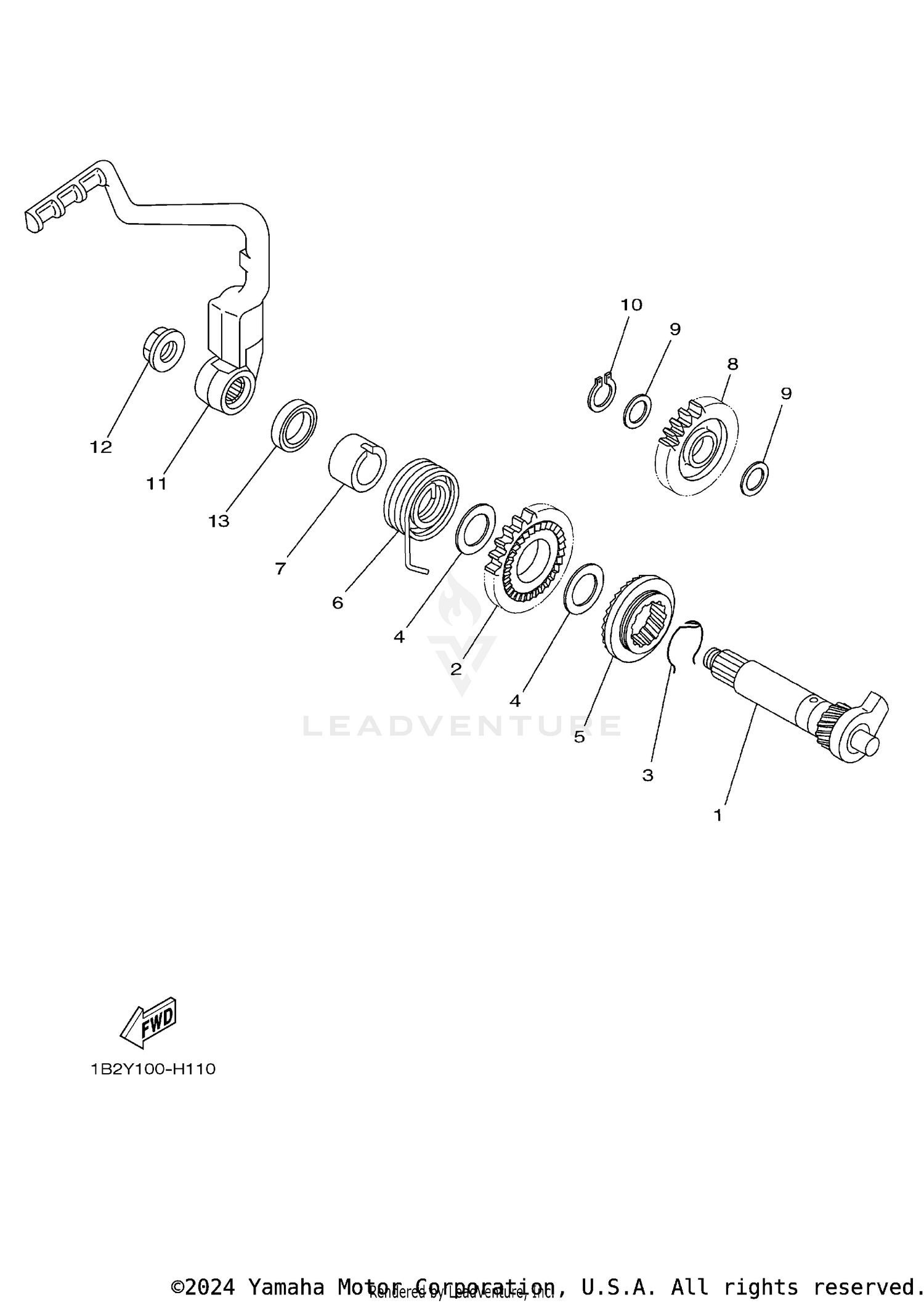

STARTER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5LX-15660-00-00 | KICK AXLE ASSY Price: $120.99 |
| 2 | 5LX-15641-00-00 | GEAR, KICK Price: $73.99 |
| 3 | 90468-26048-00 | CLIP Price: $9.49 |
| 4 | 90201-202L3-00 | WASHER, PLATE ( 0.5T) Price: $9.49 |
| 5 | 5YY-E5671-00-00 | WHEEL,RATCHET This part replaces 5LX-E5671-00-00. Price: $32.99 |
| 6 | 90508-26667-00 | SPRING, TORSION Price: $11.49 |
| 7 | 3C1-E5666-00-00 | SPACER This part replaces 5LX-E5666-00-00. Price: $11.49 |
| 8 | 5LX-15651-00-00 | GEAR, KICK IDLE Price: $65.99 |
| 9 | 90201-177G4-00 | WASHER, PLATE Price: $10.49 |
| 10 | 99009-17400-00 | CIRCLIP Price: $5.49 |
| 11 | 5HP-15620-10-00 | KICK CRANK ASSY Price: $254.99 |
| 12 | 90179-12659-00 | NUT This part replaces 90179-12813-00. Price: $9.49 |
