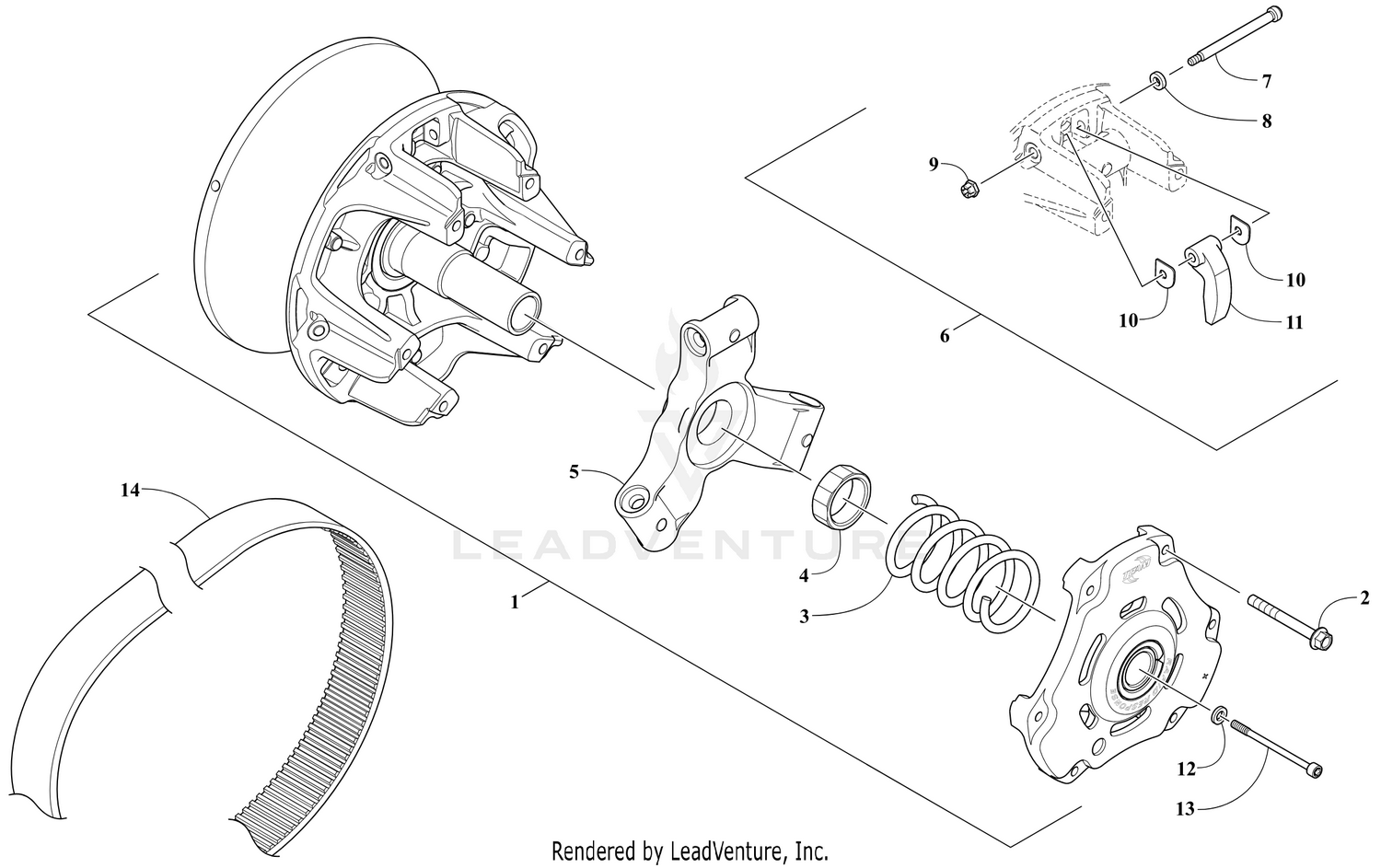

DRIVE CLUTCH [106119]
![DRIVE CLUTCH [106119]](https://cdn.datamanager.arinet.com/image/ARCT/01aa8899-01e5-4f31-8a0c-4714399ecd49/Max)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0646-950 | Screw, Shoulder Price: $10.85 |
| 3 | 0646-473 | Spring, Drive Clutch Price: $109.95 |
| 4 | 0646-982 | Nut, Jam Price: $36.95 |
| 5 | 0646-956 | Spider Price: $442.95 |
| 7 | 0823-396 | Screw, Shoulder Price: $13.28 |
| 8 | 2623-091 | Washer Price: $6.06 |
| 9 | 0823-399 | Nut, Lock Hex Price: $10.85 |
| 10 | 0646-880 | Washer, Thrust Price: $18.31 |
| 11 | 0646-872 | Arm, Cam Price: $64.95 |
| 12 | 1623-649 | Washer, Clutch Bolt Price: $6.29 |
| 13 | 1623-792 | Bolt, Clutch Price: $27.95 |
