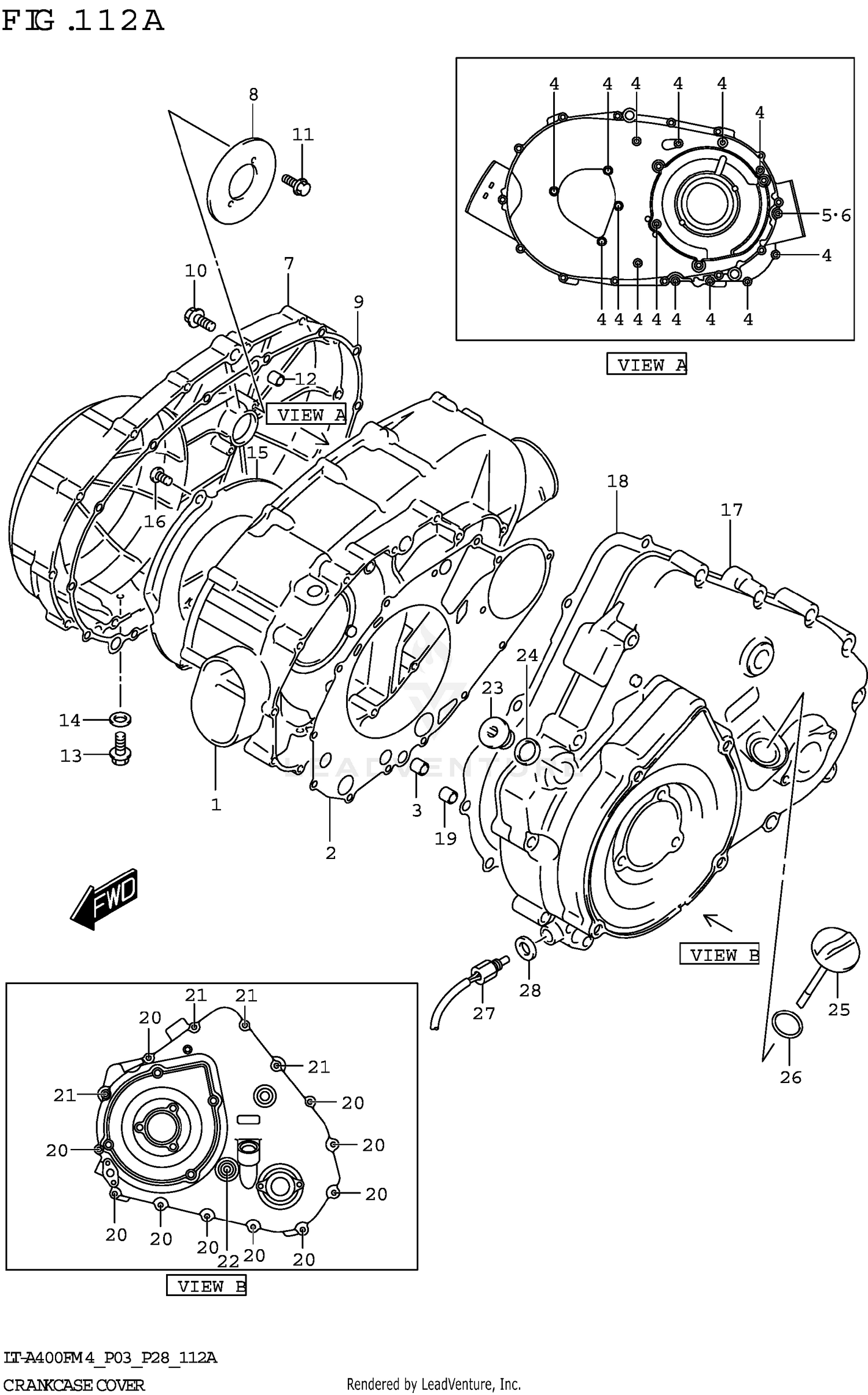

CRANKCASE COVER
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11341-38F00 | COVER,CLUTCH Price: $461.89 |
| 3 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 4 | 01547-0640A | BOLT Price: $2.79 |
| 6 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 7 | 11371-27H00 | COVER,V-BELT Price: $460.65 |
| 8 | 11372-27H00 | PLATE,V-BELT COVER Price: $8.22 |
| 10 | 01547-0635A | BOLT Price: $2.79 |
| 11 | 01547-0616A | BOLT Price: $2.45 |
| 12 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 13 | 01550-0812A | BOLT Price: $2.79 |
| 14 | 09168-08029 | GASKET (8.2X16X1) Price: $2.79 |
| 15 | 11343-38F00 | PLATE,AIR INTAKE Price: $14.96 |
| 16 | 02112-0612A | SCREW Price: $1.73 |
| 17 | 11351-27H40 | COVER, MAGNETO Price: $393.82 |
| 19 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 20 | 01547-0640A | BOLT Price: $2.79 |
| 21 | 01547-0650A | BOLT Price: $2.83 |
| 22 | 09103-08040 | BOLT,8X140 (8X140) Price: $5.80 |
| 23 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 24 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 25 | 11971-38F00 | GAUGE,OIL LEVEL Price: $12.08 |
| 26 | 09280-17003 | O-RING (D:3.1,ID:16.8) Price: $1.99 |
| 27 | 13640-32G01 | SENSOR,ENGINE TEMP Price: $62.57 |
