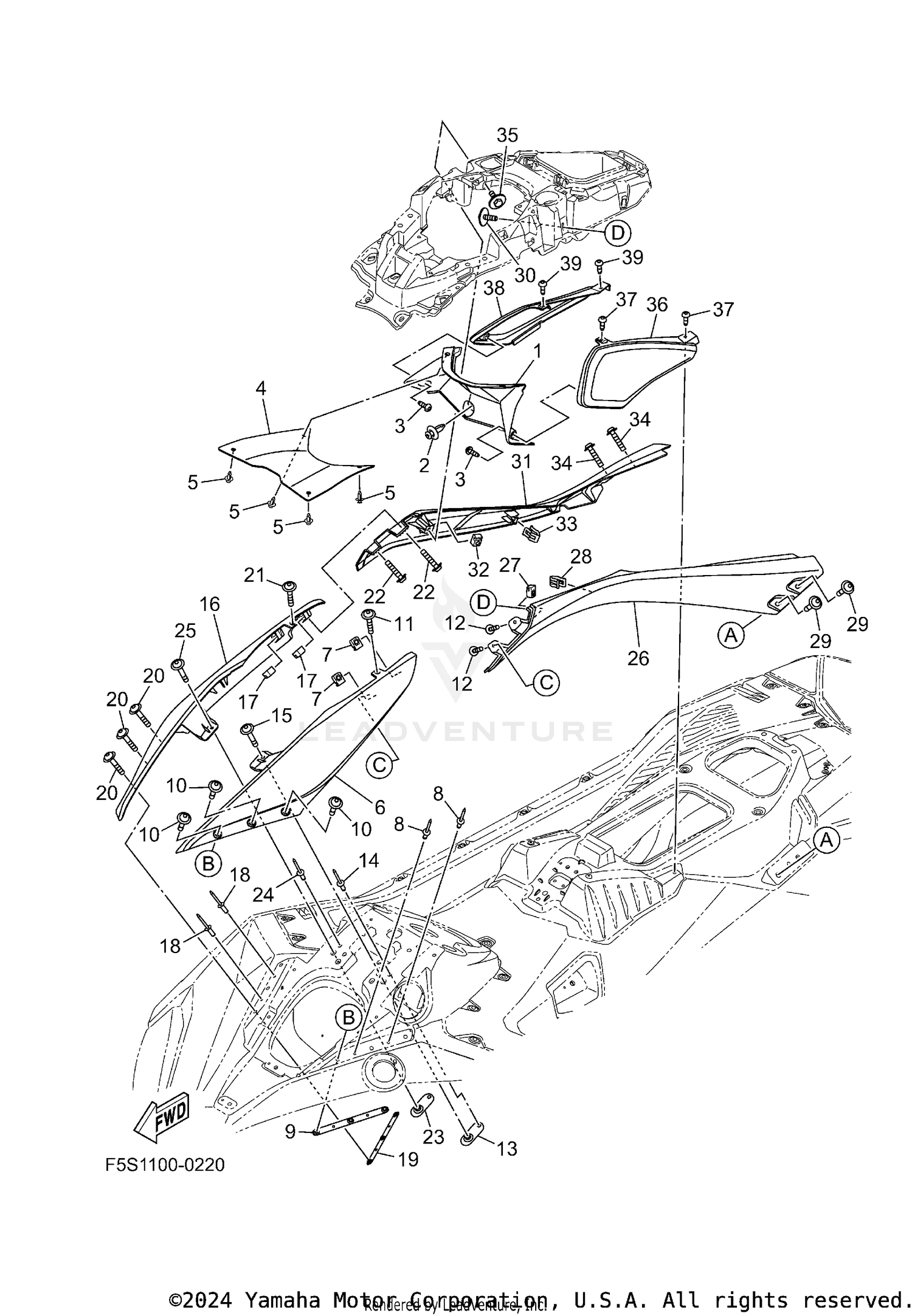

ENGINE HATCH 3
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | F5P-U4785-00-00 | COVER,GLOVE BOX Price: $11.99 |
| 2 | F4P-U1454-00-00 | RIVET Price: $2.99 |
| 3 | F2S-U13C1-00-00 | SCREW Price: $6.99 |
| 4 | F5P-U4755-00-00 | PLATE,GLOVE BOX Price: $17.99 |
| 5 | F4P-U1454-00-00 | RIVET Price: $2.99 |
| 6 | F5P-U377B-01-00 | COVER, SIDE 1 Price: $62.99 |
| 7 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 8 | F4P-U516R-01-00 | RIVET 1 Price: $10.99 |
| 9 | F5M-U0511-00-00 | BRACKET 1 Price: $41.99 |
| 10 | F5G-U6829-00-00 | SCREW Price: $1.10 |
| 11 | F5G-U6829-09-00 | SCREW Price: $0.99 |
| 12 | F5G-U6829-09-00 | SCREW Price: $0.99 |
| 13 | F2X-U5175-00-00 | PLATE, FIX Price: $5.99 |
| 14 | F4P-U516R-01-00 | RIVET 1 Price: $10.99 |
| 15 | F5G-U6829-00-00 | SCREW Price: $1.10 |
| 16 | F5P-U377C-01-00 | COVER, SIDE 2 Price: $62.99 |
| 17 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 18 | F4P-U516R-01-00 | RIVET 1 Price: $10.99 |
| 19 | F5M-U0511-00-00 | BRACKET 1 Price: $41.99 |
| 20 | F5G-U6829-00-00 | SCREW Price: $1.10 |
| 21 | F5G-U6829-09-00 | SCREW Price: $0.99 |
| 22 | F5G-U6829-09-00 | SCREW Price: $0.99 |
| 23 | F2X-U5175-00-00 | PLATE, FIX Price: $5.99 |
| 24 | F4P-U516R-01-00 | RIVET 1 Price: $10.99 |
| 25 | F5G-U6829-00-00 | SCREW Price: $1.10 |
| 26 | F5P-U3663-10-00 | FRAME Price: $20.99 |
| 27 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 28 | F3Y-U153K-00-00 | CLIP Price: $5.99 |
| 29 | F5G-U6829-00-00 | SCREW Price: $1.10 |
| 30 | F3X-U13B4-00-00 | BOLT Price: $5.99 |
| 31 | F5P-U3664-10-00 | FRAME Price: $20.99 |
| 32 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 33 | F3Y-U153K-00-00 | CLIP Price: $5.99 |
| 34 | F5G-U6829-00-00 | SCREW Price: $1.10 |
| 35 | F3X-U13B4-00-00 | BOLT Price: $5.99 |
| 36 | F5P-U353C-00-00 | PAD,KNEE 1 Price: $31.99 |
| 37 | F2S-U13C1-00-00 | SCREW Price: $6.99 |
| 38 | F5P-U353D-00-00 | PAD,KNEE 2 Price: $31.99 |
