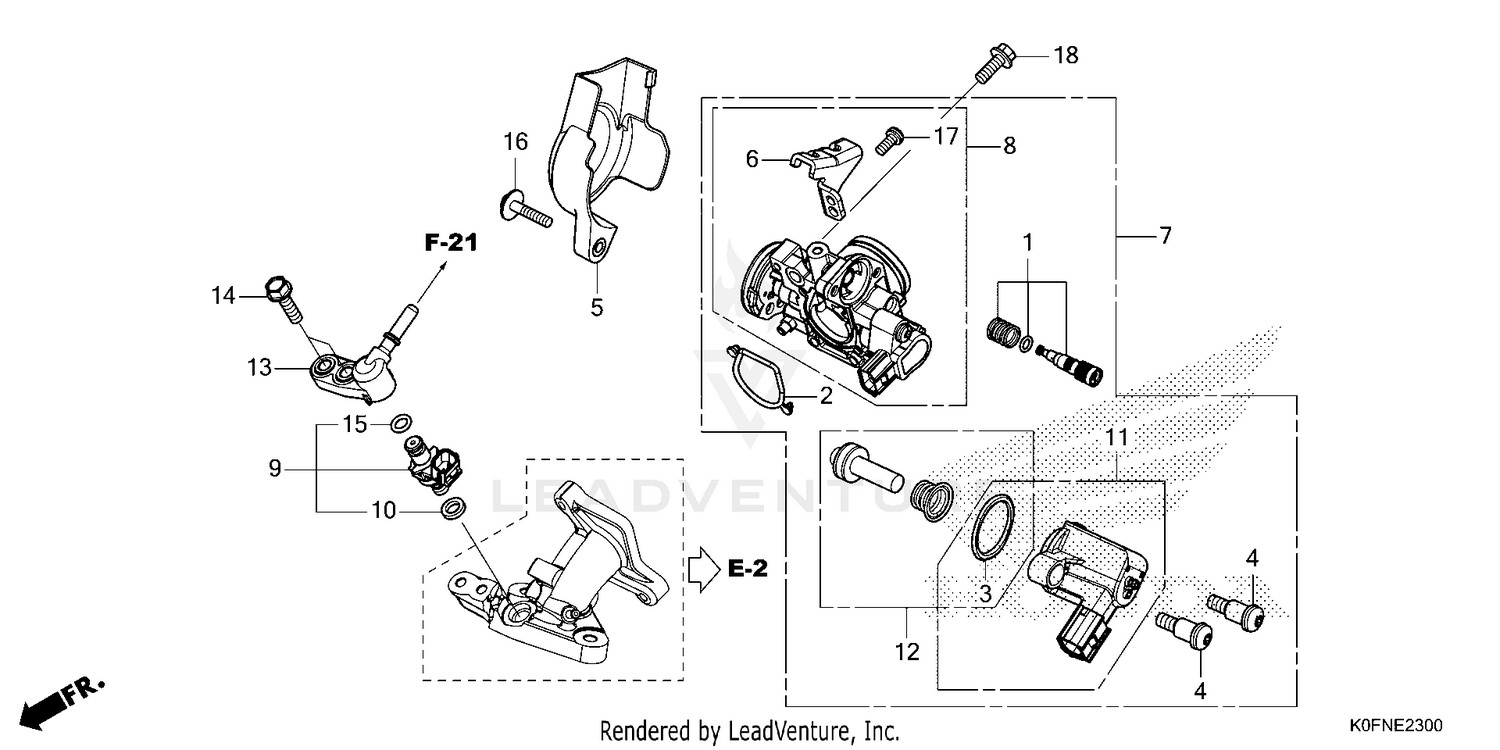

THROTTLE BODY
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16016-K03-H11 | SCREW SET Price: $2.20 |
| 2 | 16075-KYZ-711 | O-RING Price: $3.89 |
| 3 | 16077-KVB-S51 | O-RING (1.9X20.4) Price: $1.56 |
| 4 | 16081-KPH-701 | SCREW, TORX (5X8.7) Price: $3.80 |
| 5 | 16157-K26-G00 | COVER, THROTTLE Price: $1.91 |
| 6 | 16169-K18-901 | STAY, WIRE Price: $15.60 |
| 7 | 16400-K26-G11 | BODY ASSY., THROTTLE (GQYTB A) Price: $141.11 |
| 8 | 16410-K26-G11 | BODY SET Price: $89.76 |
| 9 | 16450-K76-T61 | INJECTOR ASSY., FUEL Price: $47.56 |
| 10 | 16472-KPC-D50 | RING, SEAL (Honda Code 8954000) Price: $2.56 |
| 11 | 16480-KVB-S51 | SOLENOID Price: $55.02 |
| 12 | 16485-GGZ-J01 | SEAT SET Price: $5.11 |
| 13 | 17560-K26-G00 | JOINT, INJECTOR Price: $46.96 |
| 14 | 90001-K26-900 | BOLT, FLANGE (6X22) Price: $6.93 |
| 15 | 91301-GGL-J01 | O-RING (6.3X2.2) Price: $12.67 |
| 16 | 93414-05025-08 | BOLT-WASHER (5X25) Price: $1.05 |
| 17 | 93892-05012-08 | SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
