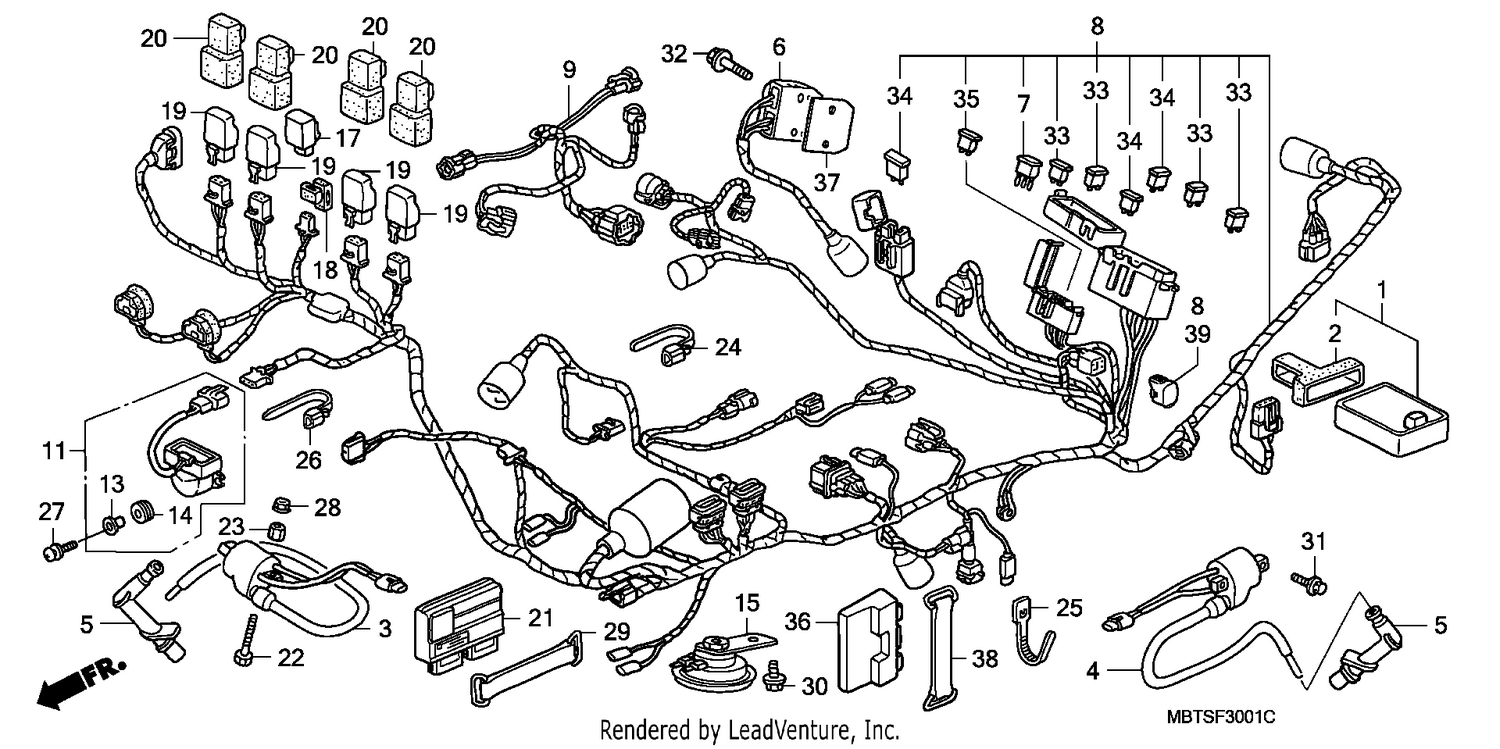

WIRE HARNESS (XL1000VA)

WIRE HARNESS (XL1000VA)

Parts (35)

RefPart NumberDescription
1 30450MBB640 CONVERTER UNIT, C.D.I. Price: Call Us
2 30455MR7000 SUSPENSION, C.D.I. CONVERTER Price: Call Us
3 30510MBTD21 COIL COMP., FR. IGNITION Price: Call Us
4 30520MBTD21 COIL COMP., RR. IGNITION Price: Call Us
5 30700MBB640 CAP ASSY., NOISE SUPPRESSOR Price: Call Us
6 31600MBTD51 RECTIFIER ASSY., REGULATE Price: Call Us
7 31730MAS601 DIODE ASSY., THREE WAY (SUMITOMO) Price: Call Us
8 32100MBTD80 HARNESS, WIRE Price: Call Us
9 32101MBTD20 SUB HARNESS Price: Call Us
11 35160MBWD21 SENSOR ASSY., BANK ANGLE Price: Call Us
13 35162MN5003 COLLAR Price: Call Us
14 35163MN5003 GROMMET Price: Call Us
15 38120MBTD11 HORN COMP. (LOW) Price: Call Us
17 38301MBWD21 RELAY COMP., WINKER (DENSO) Price: Call Us
18 38306GE8008 SUSPENSION, WINKER RELAY (DENSO) Price: Call Us
19 38501GN2014 RELAY COMP., STARTER (MITSUBA) Price: Call Us
20 38506GC7611 SUSPENSION, STARTER RELAY (MITSUBA) Price: Call Us
21 38770MBTD51 PGM-FI UNIT Price: Call Us
22 90117MBTD21 BOLT, HEX., 6X40 Price: Call Us
23 90282MAT000 NUT, 6X19 Price: Call Us
24 90650KW3000 BAND, WIRE Price: Call Us
25 90650MBT611 BAND, WIRE Price: Call Us
26 90652KT1771 BAND, WIRE (BLACK) Price: Call Us
27 938910402008 SCREW-WASHER, 4X20 Price: Call Us
28 9405006080 NUT, FLANGE, 6MM Price: Call Us
29 9501217001 BAND F, BATTERY Price: Call Us
30 957010801207 BOLT, FLANGE, 8X12 Price: Call Us
31 958010602000 BOLT, FLANGE, 6X20 Price: Call Us
32 957010603000 BOLT, FLANGE, 6X30 Price: Call Us
33 9820041000 FUSE, MINI (10A) Price: Call Us
34 9820042000 FUSE, MINI (20A) Price: Call Us
35 9820043000 FUSE, MINI (30A) Price: Call Us
36 38600MBTD51 ABS CONTROL UNIT Price: Call Us
37 31601MBTD50 COVER, REGULATOR RECTIFIER Price: Call Us
38 80109MBTD50 BAND, ABS UNIT Price: Call Us
