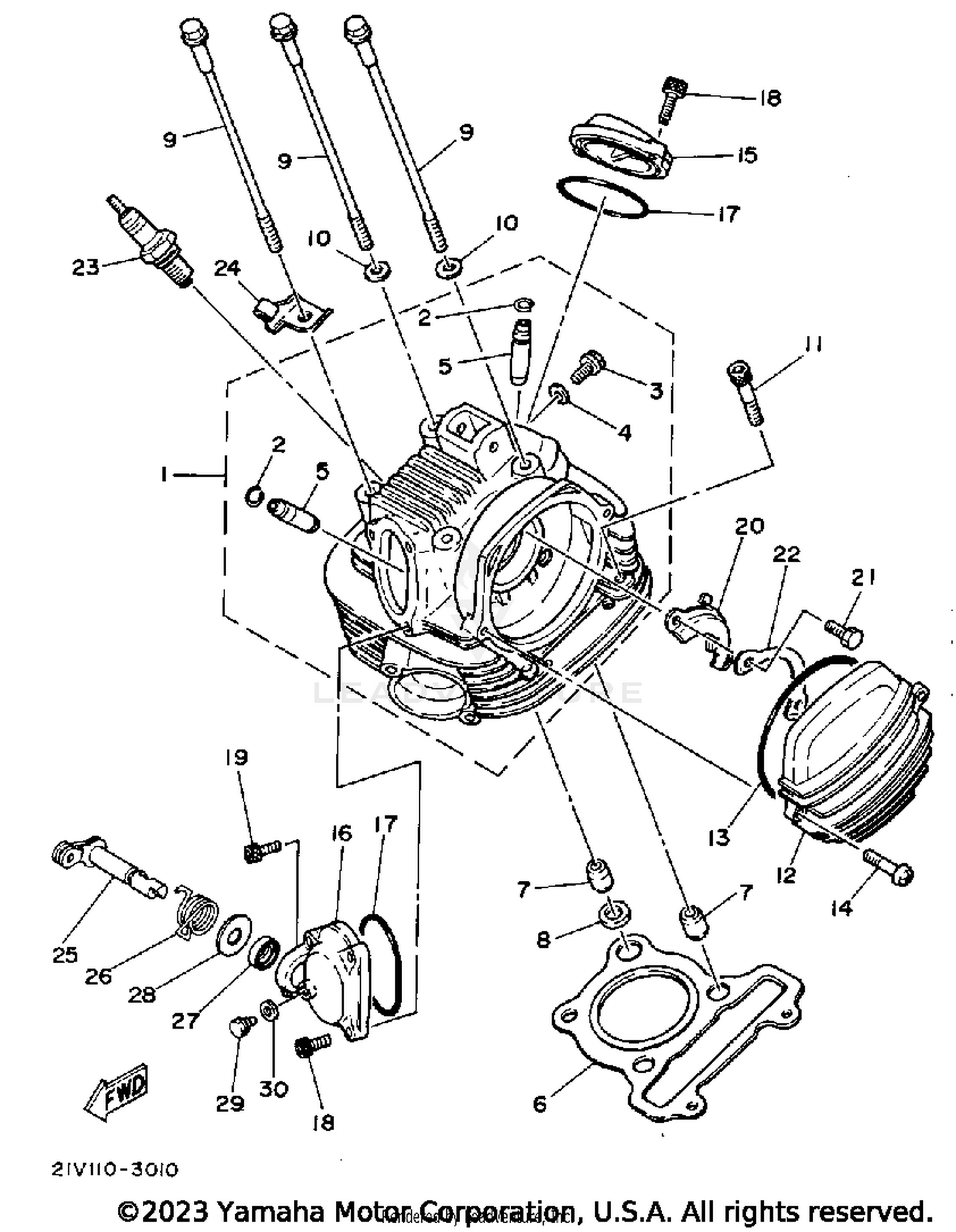

| Ref | Part Number | Description |
|---|
| 1 |
15A-11110-04-00 |
CYLINDER HEAD ASSY This part replaces 15A-11110-01-00. Price: $736.99 |
| 2 |
93440-10085-00 |
CIRCLIP Price: $9.49 |
| 3 |
90153-06029-00 |
SCREW, HEXAGON This part replaces 90153-06045-00. Price: $11.49 |
| 4 |
90430-06014-00 |
GASKET Price: $8.60 |
| 6 |
1NU-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $50.99 |
| 7 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 8 |
90430-14131-00 |
GASKET Price: $9.49 |
| 9 |
90105-08160-00 |
BOLT, FLANGE This part replaces 90105-08195-00. Price: $8.49 |
| 10 |
90201-080L7-00 |
WASHER, PLATE This part replaces 90201-08609-00. Price: $4.05 |
| 11 |
91317-08045-00 |
BOLT This part replaces 91316-08045-00. Price: $9.49 |
| 12 |
15A-11185-00-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $76.99 |
| 13 |
93211-05471-00 |
O-RING Price: $16.49 |
| 14 |
98517-06020-00 |
SCREW,PAN HEAD This part replaces 98516-06020-00. Price: $2.35 |
| 15 |
15A-11186-00-00 |
COVER, CYLINDER HEAD SIDE 2 Price: $41.99 |
| 16 |
21V-11187-01-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $77.99 |
| 17 |
93210-57634-00 |
O-RING Price: $15.49 |
| 18 |
91317-06018-00 |
BOLT This part replaces 91316-06018-00. Price: $9.49 |
| 19 |
91317-06018-00 |
BOLT This part replaces 90109-06717-00. Price: $9.49 |
| 20 |
91317-06018-00 |
BOLT This part replaces 90109-06717-00. Price: $9.49 |
| 21 |
97013-06012-00 |
BOLT (661) Price: $6.49 |
| 22 |
90215-06184-00 |
WASHER, LOCK Price: $11.49 |
| 24 |
36X-12283-01-00 |
BRACKET, DECOMPRESSION This part replaces 36X-12283-00-00. Price: $5.99 |
| 25 |
36X-12288-02-00 |
CAM, DECOMPRESSION This part replaces 36X-12288-00-00. Price: $23.99 |
| 26 |
90508-16428-00 |
SPRING, TORSION Price: $2.45 |
| 27 |
93102-12321-00 |
OIL SEAL (SD 12-22-5 HS) Price: $13.49 |
| 28 |
90201-12588-00 |
WASHER, PLATE Price: $8.49 |
| 29 |
90109-06418-00 |
BOLT Price: $10.49 |
