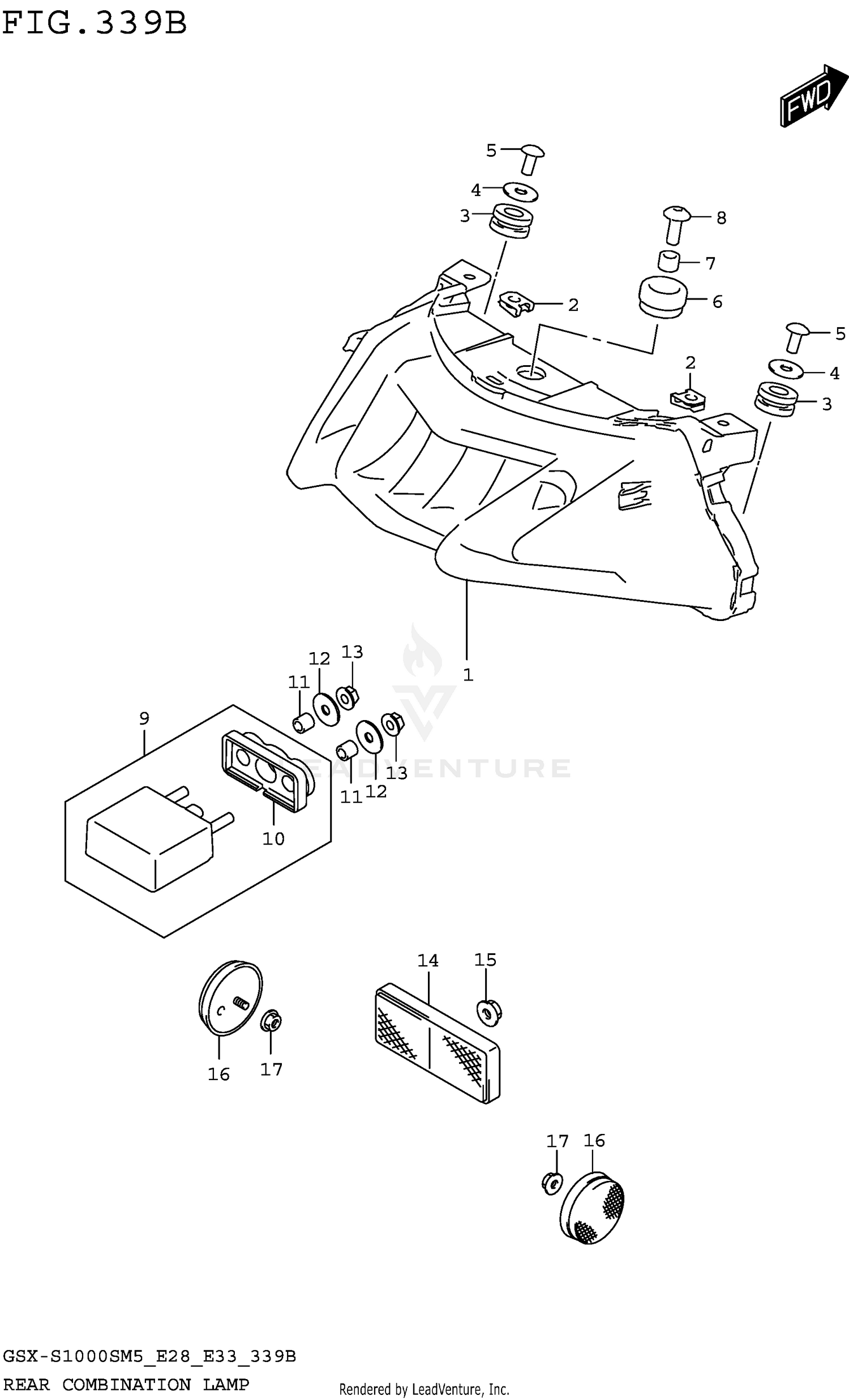

REAR COMBINATION LAMP (GSX-S1000SRQM5_E33)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-07L00 | LAMP ASSY, REAR COMB Price: $575.19 |
| 2 | 09148-05045 | NUT (M5) Price: $2.85 |
| 3 | 09320-10073 | CUSHION Price: $2.39 |
| 4 | 09160-05045 | WASHER (5.5X18X1.0) Price: $2.35 |
| 5 | 03541-0512A | SCREW Price: $1.65 |
| 8 | 09139-06030 | SCREW (6X16) Price: $4.50 |
| 9 | 35910-17KA0 | LAMP ASSY,LICENSE Price: $198.39 |
| 11 | 09180-06263 | SPACER (6.5X9X9) Price: $2.48 |
| 12 | 09160-05045 | WASHER (5.5X18X1.0) Price: $2.35 |
| 13 | 08316-1005A | NUT Price: $2.64 |
| 14 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
| 15 | 08316-1005A | NUT Price: $2.64 |
| 16 | 35970-13K00 | REFLECTOR ASSY, REAR SIDE Price: $17.59 |
