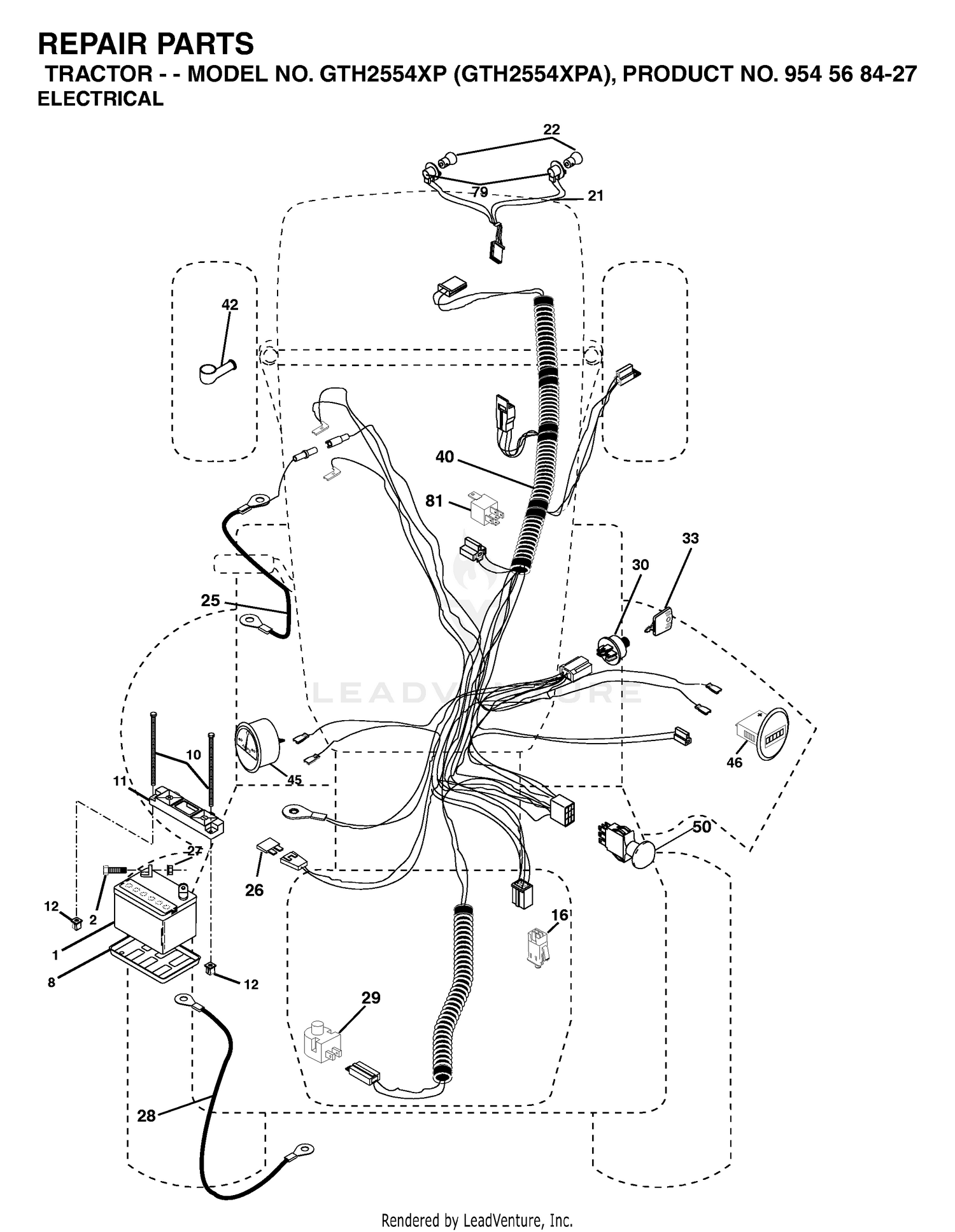

| Ref | Part Number | Description |
|---|
| 1 |
3269-5 |
RIVET-POP Price: $1.29 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
95-8707 |
COVER-DASH Price: $194.77 |
| 3 |
95-8763 |
BRACKET-HOLD DOWN, COVER Price: $13.94 |
| 4 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 5 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 6 |
95-8764-0P |
SUPPORT-MAGNET This part replaces 95-8764-03. Price: $35.03 |
| 7 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 8 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $5.99 |
| 8 |
95-8765 |
BRACKET-STRIKE, MAGNET Price: $9.32 |
| 9 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 10 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 10 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $8.99 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
532150109 |
BATTERY HOLDDOWN FRONT MOUNT Price: $4.99 |
| 12 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 12 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145769. Price: $8.99 |
| 13 |
95-8684 |
PAD-BUMPER Price: $27.13 |
| 14 |
3289-4 |
SCREW-FH Price: $3.27 |
| 15 |
104-4628 |
LINK-BRAKE, PARKING Price: $18.33 |
| 16 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
94-3829 |
PIN-CLEVIS Price: $2.10 |
| 18 |
104-4817 |
LEVER-BRAKE Price: $143.45 |
| 19 |
87-4710 |
SPACER-BRAKE, PARKING Price: $4.27 |
| 20 |
32105-9 |
SCREW Price: $0.54 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 21 |
95-8900 |
SWITCH Price: $95.42 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 24 |
3296-9 |
NUT-HEX Price: $0.25 |
| 25 |
321-10 |
SCREW-HH Price: $1.29 |
| 25 |
532185461 |
CABLE.4GA.RED.W/16GA.RED.WIRE Price: $19.99 |
| 26 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 26 |
532108824 |
FUSE HYT Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532170697 |
CABLE, GROUND Price: $19.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
532188034 |
HARNESS.IGNITION.VGT.NO.RELAY Price: $129.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED Price: $4.99 |
| 45 |
532177500 |
RP AMMETER.ROUND.SILVER.DELTA Price: $54.99 |
| 46 |
532177501 |
RP HOURMETER SNAP-IN Price: $124.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
