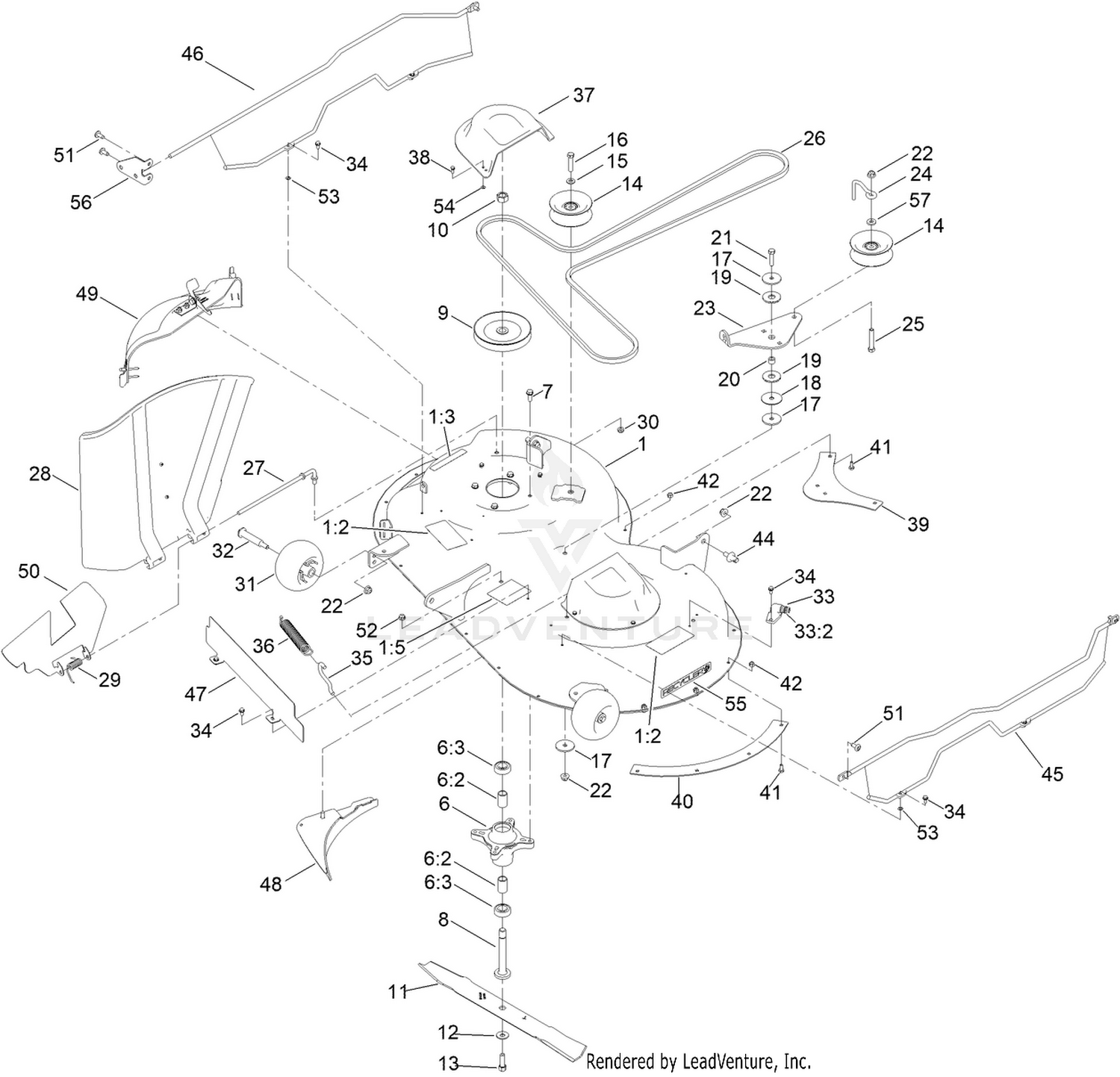

42 Inch Deck and Decal Assembly
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 139-3214 | SPINDLE ASM Price: $51.71 |
| 7 | 32144-41 | SCREW-TAPTITE Price: $4.79 |
| 8 | 117-7268 | SHAFT-SPINDLE Price: $19.98 |
| 9 | 139-2433 | PULLEY Price: $26.14 |
| 10 | 139-2578 | NUT-HEX Price: $0.90 |
| 11 | 117-5376-03 | BLADE-MULCH Price: $20.79 |
| 12 | 3290-465 | WASHER-BELLEVILLE Price: $2.89 |
| 13 | 26-0671 | SCREW-HH Price: $7.99 |
| 14 | 132-9420 | PULLEY-IDLER, FLAT Price: $25.16 |
| 15 | 115-1166 | WASHER-FLAT Price: $3.08 |
| 16 | 138-0722 | SCREW-HH Price: $0.80 |
| 17 | 139-1726 | WASHER-REBOUND Price: $1.46 |
| 18 | 120-2229 | WASHER Price: $1.27 |
| 19 | 114-0463 | WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 20 | 115-4986 | SPACER Price: $1.39 |
| 21 | 137-3070 | SCREW-HH Price: $3.34 |
| 22 | 119-4042 | NUT-HF, NI Price: $0.69 |
| 23 | 138-7262 | ARM-IDLER Price: $12.02 |
| 24 | 138-7270 | GUIDE-BELT, IDLER Price: $1.69 |
| 25 | 139-2589 | SCREW-HH Price: $0.90 |
| 26 | 119-8819 | V-BELT Price: $40.48 |
| 27 | 137-2019 | ROD-PIVOT Price: $8.15 |
| 28 | 137-7046 | DEFLECTOR Price: $50.30 |
| 29 | 138-7268 | SPRING-TORSION Price: $1.69 |
| 30 | 121-4600 | NUT-HEX Price: $0.78 |
| 31 | 1-603299 | ROLLER-SCALP, ANTI Price: $21.99 |
| 32 | 139-2551 | BOLT-SHOULDER Price: $3.74 |
| 33 | 133-9289 | FITTING-WASHOUT Price: $3.86 |
| 34 | 32144-4 | SCREW-HWH Price: $1.29 |
| 35 | 138-7267 | HOOK-SPRING, RETURN Price: $1.12 |
| 36 | 138-7265 | SPRING EXTENSION Price: $4.88 |
| 37 | 108-7889 | COVER-BELT Price: $21.61 |
| 38 | 139-1713 | SCREW-TAPTITE Price: $0.21 |
| 39 | 137-2036-03 | BAFFLE-BLOWOUT, REAR Price: $11.94 |
| 40 | 137-2037-03 | BAFFLE-BLOWOUT, SIDE Price: $6.91 |
| 41 | 137-3041 | SCREW-HH Price: $0.39 |
| 42 | 137-3088 | NUT-HEX Price: $0.39 |
| 44 | 139-5871 | PIN-DECK Price: $1.66 |
| 45 | 140-0368 | LEFT GUARD ASM Price: $31.32 |
| 46 | 140-0369 | RIGHT GUARD ASM Price: $31.32 |
| 47 | 137-2039-03 | SHIELD-FROUNT Price: $14.79 |
| 48 | 137-7034-03 | BAFFLE-CLIPPING Price: $36.97 |
| 50 | 138-2555-03 | DEFLECTOR INSERT Price: $17.19 |
| 51 | 138-9753 | SCREW Price: $0.39 |
| 52 | 119-4041 | NUT-HF Price: $0.48 |
| 53 | 1-803037 | NUT-RETAINING Price: $1.39 |
| 54 | 132-0900 | NUT-RETAINING Price: $0.36 |
| 55 | 119-2368 | DECAL-RECYCLER Price: $3.60 |
| 56 | 140-5183-01 | PLATE-MOUNT, GUARD Price: $9.51 |
