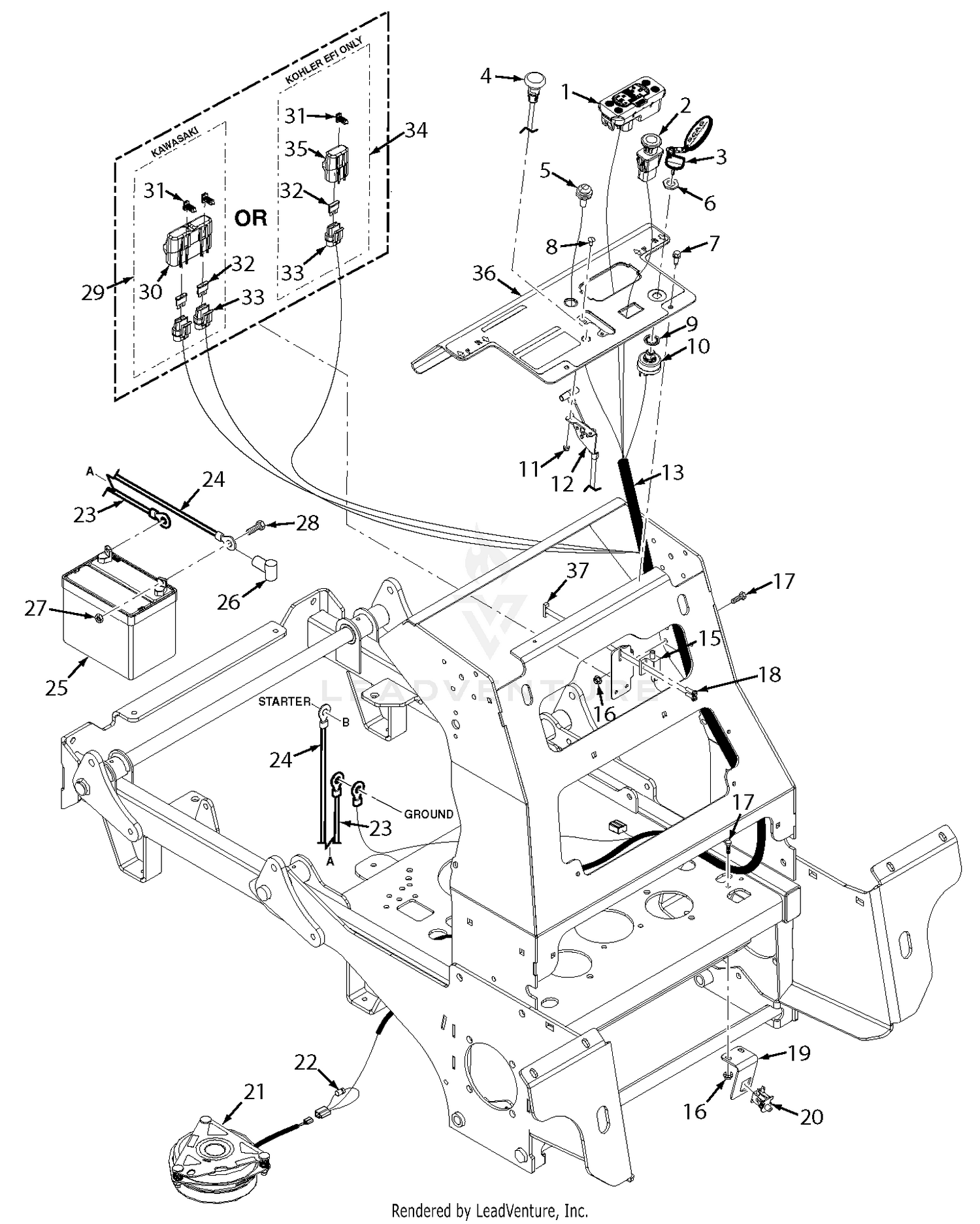

| Ref | Part Number | Description |
|---|
| 1 |
484721 |
Tiger Eye, Cluster Gauge Price: Call Us |
| 2 |
463034 |
SEALED PTO SWITCH KIT This part replaces 483957. Price: Call Us |
| 3 |
462069 |
Key Assy., w/Fob Price: Call Us |
| 4 |
483976 |
Choke Control (excludes EFI models) Price: Call Us |
| 5 |
481182 |
Indicator Light (EFI models only) Price: Call Us |
| 6 |
48017-04 |
Nut, Special 5/8-32 Price: Call Us |
| 7 |
04011-14 |
Screw, 1/4-20 x 3/4" Taptite Price: Call Us |
| 8 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 9 |
48017-03 |
Lockwasher, 5/8" Internal Tooth Price: Call Us |
| 10 |
48798 |
Switch, Key Price: Call Us |
| 11 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 12 |
483975 |
Throttle Control Price: Call Us |
| 13 |
485822 |
Wire Harness, SVRII-EFI Price: Call Us |
| 13 |
485875 |
Wire Harness, SVRII Price: Call Us |
| 14 |
427269 |
Bracket, Neutral Switch Price: Call Us |
| 15 |
481637 |
Switch, N/O Price: Call Us |
| 16 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 17 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 18 |
04010-12 |
Screw, #10-32 x 3/4" Taptite Price: Call Us |
| 19 |
427249 |
Switch Bracket, Operator Presence Price: Call Us |
| 20 |
48717 |
Switch Price: Call Us |
| 21 |
462166 |
Clutch w/Tag GT2.5-FE02 (48 / 52) Price: Call Us |
| 21 |
462339 |
Clutch w/Tag GT3.5--FE05 (61) Price: Call Us |
| 22 |
483958 |
Diode, 600V - 6A Price: Call Us |
| 23 |
48029-24 |
Battery Cable, 39" Black Price: Call Us |
| 24 |
48029-30 |
Battery Cable, 44" Red w/Braid Price: Call Us |
| 25 |
483665 |
Battery, 350 CCA (not available through Scag) Price: Call Us |
| 26 |
48126 |
Rubber Boot Price: Call Us |
| 27 |
04020-02 |
Nut, 1/4-20 Price: Call Us |
| 28 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 30 |
483571 |
Cover, Sealed Double Price: Call Us |
| 31 |
482588 |
Clip, Wire Price: Call Us |
| 32 |
48298 |
Fuse, 20 Amp Price: Call Us |
| 33 |
483629 |
Fuse Holder Price: Call Us |
| 35 |
483643 |
Cover, Sealed Single Price: Call Us |
| 36 |
463352 |
Control Panel with Decal This part replaces 462970. Price: Call Us |
