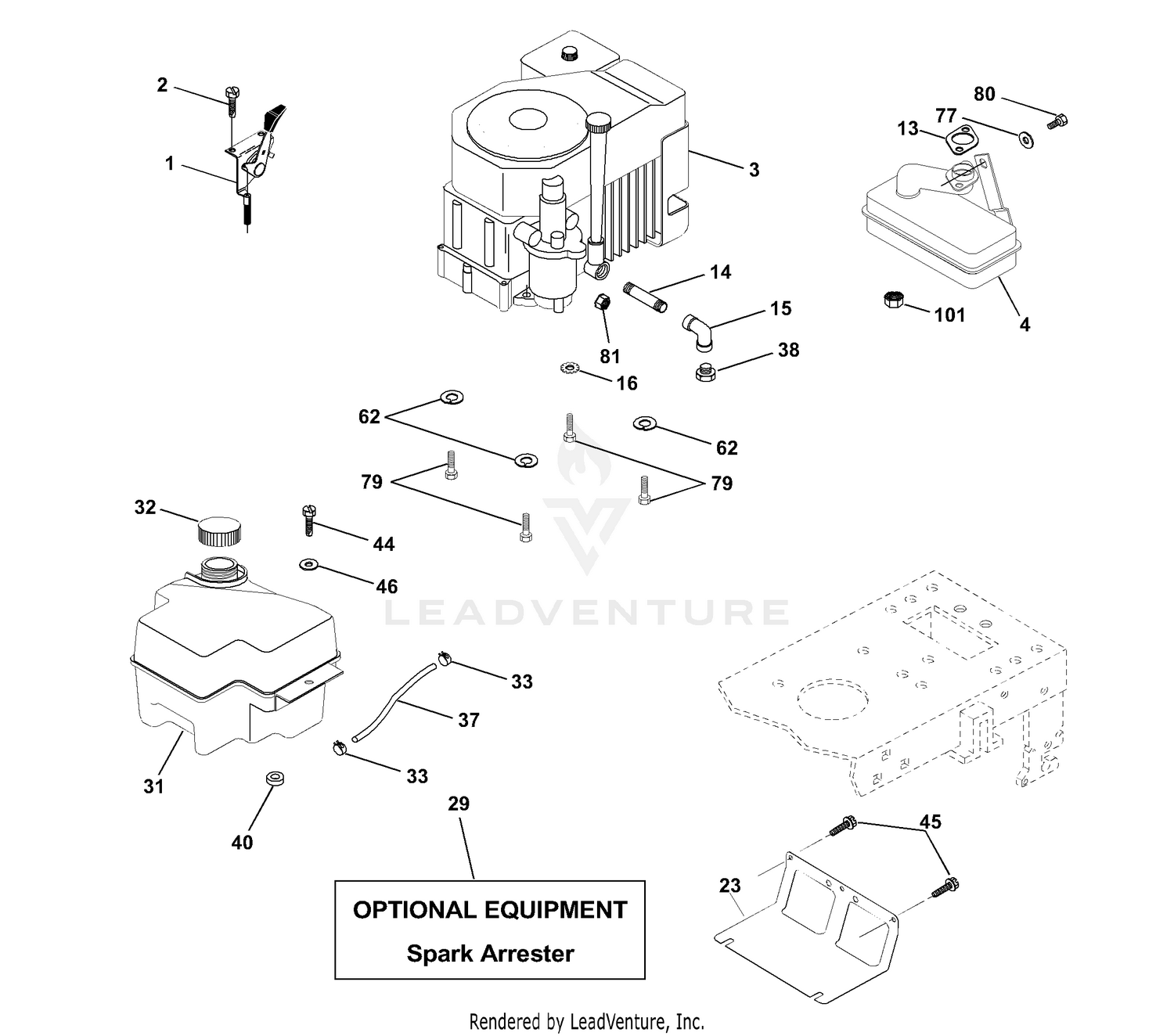

Engine

Engine

Parts (22)

RefPart NumberDescription
1 141296 Control Th/ch 27 LH Flag Price: Call Us
2 17720410 Screw Hex Thd Cut 1/4-20x5/8 T Price: Call Us
4 159420 Muffler Price: Call Us
13 12-041-03 Gasket Eng Price: Call Us
14 13280328 Nipple Pipe Price: Call Us
15 13200300 Elbow Std 90 Degree 3/8-18 Npt Price: Call Us
16 11050500 Washer Lock Ext Tooth 5/16 Price: Call Us
23 169837 Shield Brn/Dbr Guard Price: Call Us
29 137180 Kit Spark Arrestor (Flat Scrn) Price: Call Us
31 161911 Tank Fuel Front 2 00 Price: Call Us
32 140527 Cap Asm Fuel W/sym Vented Price: Call Us
33 123487X Clamp Hose Black Price: Call Us
35 17000612 Screw Price: Call Us
37 137040 Line Fuel 20" Price: Call Us
40 124028X Bushing Snap Nyl Blk Fuel Line Price: Call Us
44 17670412 Screw Hexwsh Thdrol 1/4-20x3/4 Price: Call Us
46 19091416 Washer 9/32 X 7/8 X 16 Ga Price: Call Us
62 10040500 Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us
77 19101216 Washer 5/16 x 3/4 x 16 Ga. Price: Call Us
79 M740108025 Bolt Hex Price: Call Us
80 74760508 Bolt Hex Hd 5/16-18 x 1/2 Price: Call Us
81 73510400 Nut Flange 1/4-20 Starter Nut Price: Call Us
