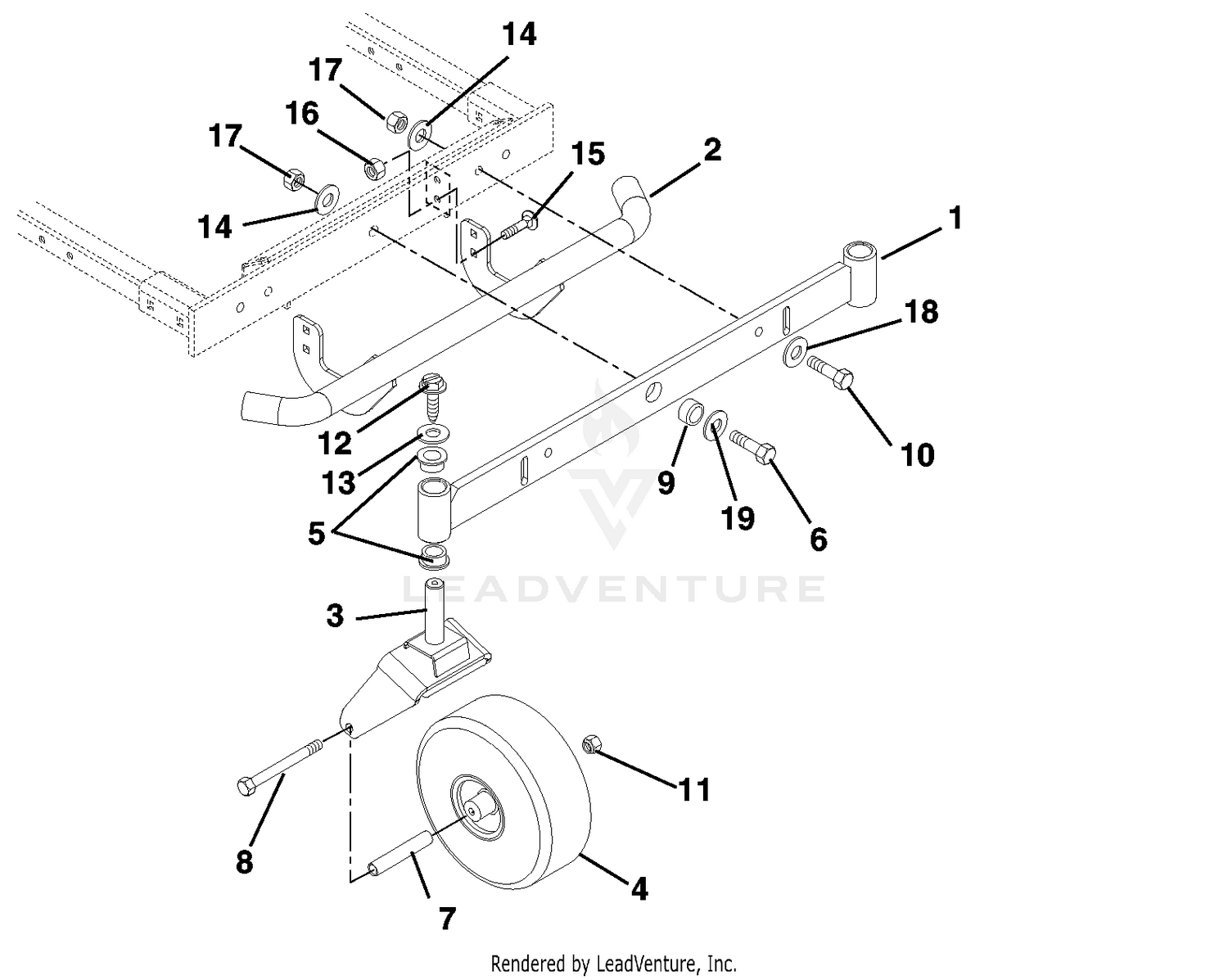

| Ref | Part Number | Description |
|---|
| 1 |
01600851 |
WMT, FRONT AXLE Price: $237.55 |
| 2 |
01589551 |
BUMPER-ZOOM Price: $149.95 |
| 3 |
01547051 |
FORK - CASTER Price: $120.45 |
| 4 |
07100124 |
TIRE/WHEEL ASSY, 11X4-5 This part replaces 01588100. Price: $72.95 |
| 5 |
05500934 |
BSHG-FLG 1.00X1.25X1.50X1.50 This part replaces 05533600. Price: $6.95 |
| 7 |
09105200 |
BUSH.,CASTER FORK Price: $34.95 |
| 8 |
05901907 |
BLT, HEX .50-13X6.50 GR5 ZCC This part replaces 05964400. Price: $6.95 |
| 9 |
01600400 |
BUSHING, AXLE PIVOT Price: $3.45 |
| 10 |
05979900 |
BLT-SHLDR .75 .625-11X2.12SHCS Price: $8.80 |
| 11 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 12 |
07400128 |
SCR,TAP .375-16X1.25HWH TR ZCC This part replaces 07417100. Price: $2.95 |
| 13 |
06401106 |
WSHR, FLT .380X1.50X.125 ZCC This part replaces 06443400. Price: $3.45 |
| 14 |
06400829 |
WSHR-FLT .640X1.75X.250 This part replaces 06435200. Price: $3.95 |
| 15 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 16 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 18 |
06401140 |
WSHR-FL-STL 0.812X1.469X0.134 ZCC This part replaces 06439000. Price: $1.45 |
