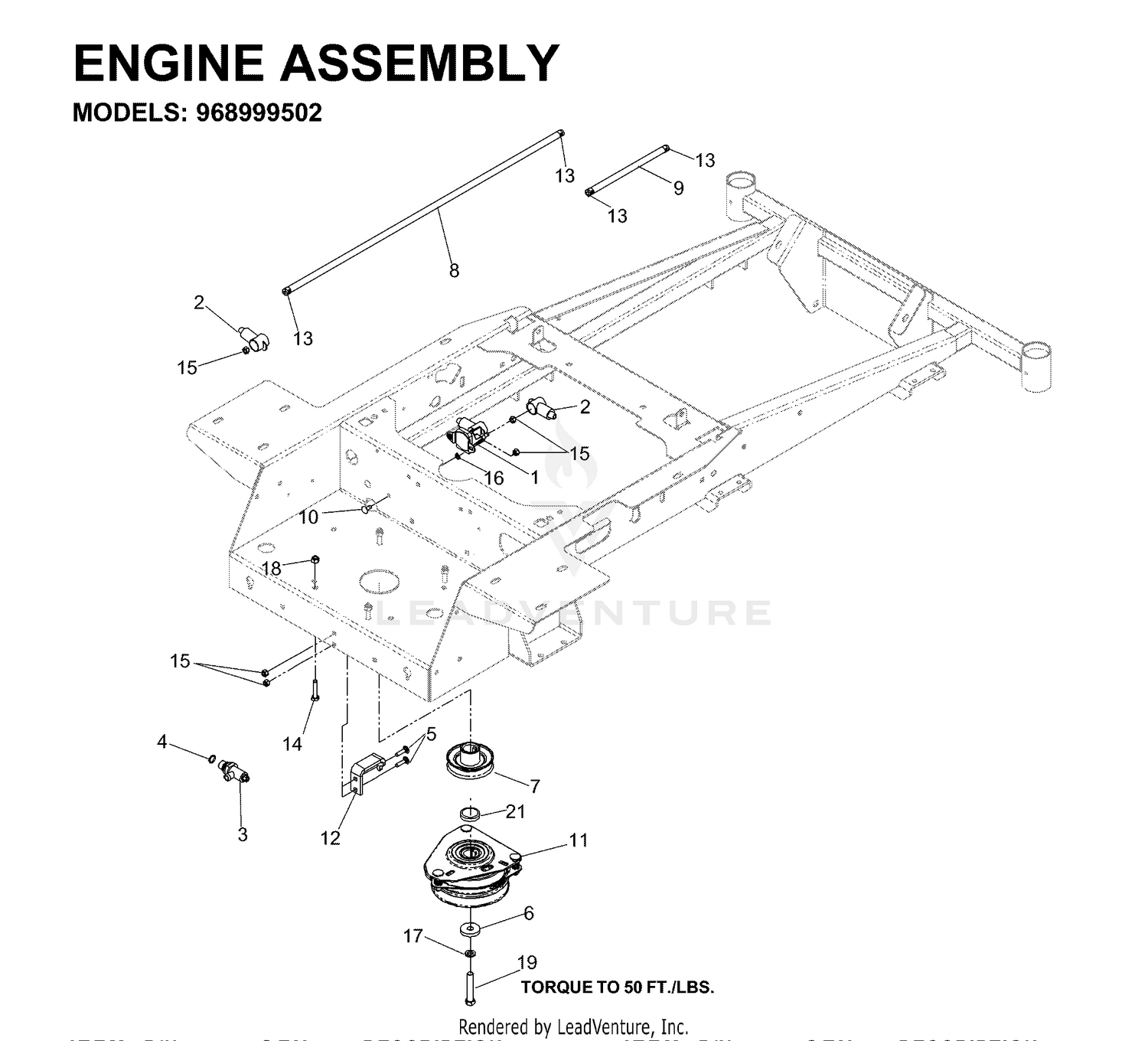

ENGINE 2

ENGINE 2

Parts (20)

RefPart NumberDescription
1 539101714 SOLENOID Price: $22.99
2 539102759 INSULATOR Price: $3.99
3 539109587 VALVE ASSEMBLY Price: $12.99
4 539109618 O-RING Price: $3.99
5 592807801 BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99
6 532126197 WASHER This part replaces 539110064. Price: $6.99
8 539107765 HOSE, FUEL .25 ID X 26" This part replaces 539110424. Price: $6.99
9 587044805 HOSE.1/4".LOW.PERM.FUEL.LN.5" This part replaces 539110425. Price: $2.99
10 539111786 RHSSNB, 1/4-20X5/8 Price: $1.99
11 539113977 CLUTCH, 90 FT/LBS Price: $279.99
12 539112249 CLUTCH TIE DOWN Price: $44.99
13 539912222 HOSE CLAMP Price: $2.99
14 596582201 Bolts This part replaces 539976935. Price: $2.99
15 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99
16 539990053 WASHER 1/4 INT TOOTH Price: $2.99
17 596238901 Washers This part replaces 539990247. Price: $2.99
18 596583702 Nuts This part replaces 539990717. Price: $2.99
19 581332804 CLUTCH BOLT7/16-20X3.5 GR524HR This part replaces 539976944. Price: $6.99
20 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99
21 539114541 SPACER, ENGINE, PULLEY Price: $4.99
