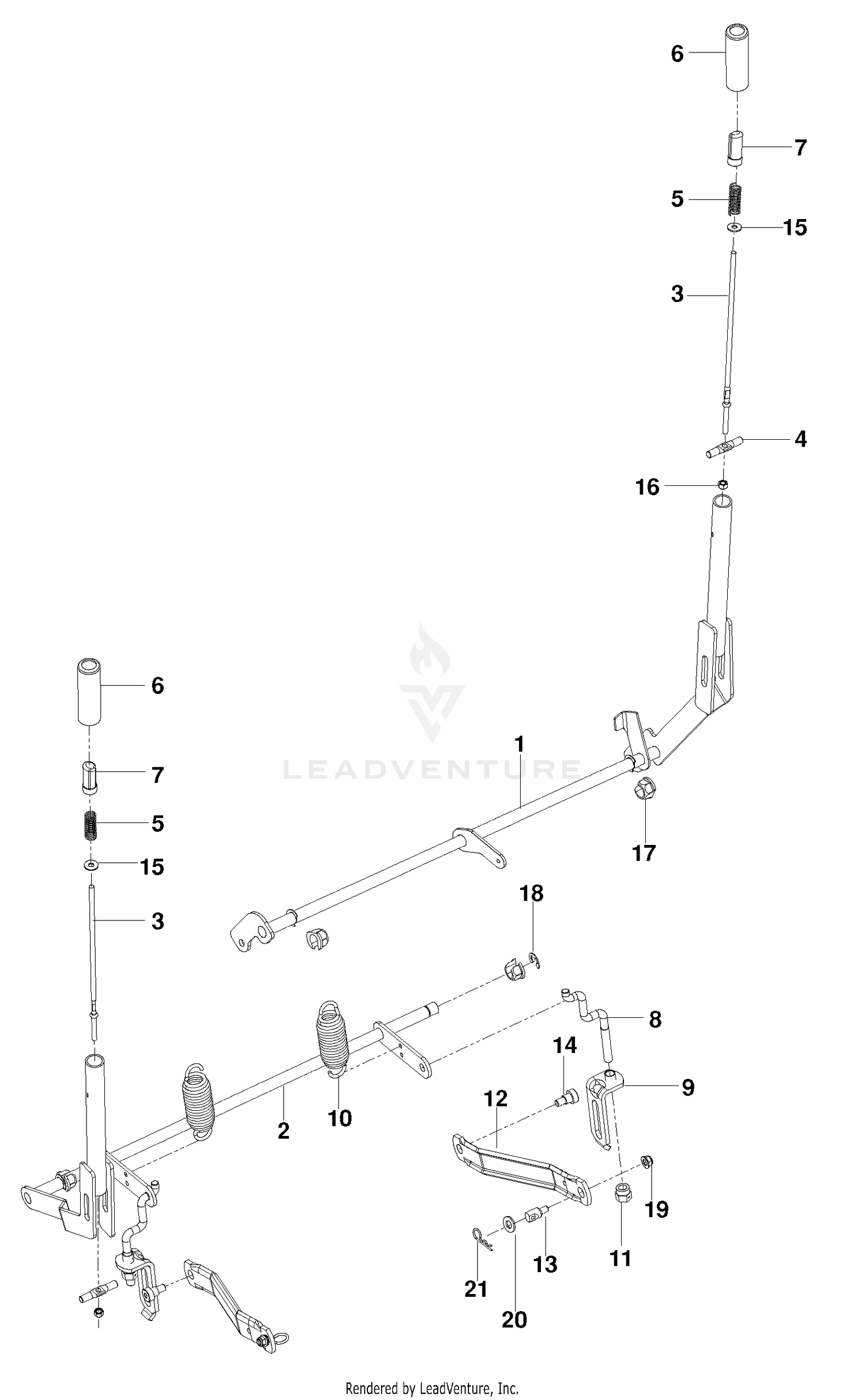

| Ref | Part Number | Description |
|---|
| 1 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 1 |
522710802 |
SHAFT.ASSY.BRAKE.WLDMT.BLACK Price: $199.00 |
| 2 |
574216602 |
SHAFT, LIFT, BLACK Price: $139.99 |
| 2 |
58-5460 |
VALVE-SELECTOR Price: $479.05 |
| 3 |
340-22 |
FITTING-TEE Price: $90.38 |
| 3 |
510422902 |
Rods This part replaces 510422901. Price: $4.99 |
| 4 |
237-65 |
O-RING Price: $2.50 |
| 4 |
583629301 |
ROD.LATCH.RELEASE This part replaces 516008801. Price: $4.99 |
| 5 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 5 |
510030702 |
Springs This part replaces 510030701. Price: $3.99 |
| 6 |
237-80 |
O-RING Price: $6.10 |
| 6 |
510207201 |
GRIP, HANDLE, BLACK 4" Price: $5.99 |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
510207301 |
BUTTON, PUSH, BLACK Price: $4.99 |
| 8 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 8 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE This part replaces 525847201. Price: $9.99 |
| 9 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE This part replaces 522858601. Price: $9.99 |
| 9 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 10 |
48-9530 |
NUT Price: $1.78 |
| 10 |
596482001 |
Springs This part replaces 539118762. Price: $6.99 |
| 11 |
323-6 |
SCREW-HH Price: $0.66 |
| 11 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 12 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 13 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 13 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 14 |
340-93 |
TEE-ADAPTER Price: $57.05 |
| 14 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 15 |
105-9271-01 |
BRACKET-BUMPER This part replaces 60-1050. Price: $84.53 |
| 15 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 16 |
48-3280 |
STOP-BUMP Price: $35.14 |
| 16 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 17 |
510184901 |
PLASTIC NUT Price: $4.99 |
| 17 |
60-0090 |
PIN-PIVOT Price: $93.25 |
| 18 |
539105069 |
E-RING 5/8 Price: $2.99 |
| 18 |
60-0190 |
STRIP Price: $36.98 |
| 19 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 19 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
539976982 |
WASHER 5/8 FLAT Price: $3.99 |
| 21 |
60-0100 |
PIN-PIVOT Price: $94.46 |
| 23 |
68-6480 |
BUSHING-FLANGE Price: $3.19 |
| 24 |
82-9570 |
DISCONTINUED Price: Call Us |
| 25 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 26 |
58-4380 |
PIN Price: $25.11 |
| 27 |
60-1280 |
PIN Price: $3.53 |
| 28 |
115-8011 |
CYLINDER-HYD This part replaces 84-6210. Price: $784.12 |
| 36 |
237-42 |
O-RING Price: $2.78 |
| 37 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 38 |
237-22 |
O-RING Price: $2.43 |
| 39 |
3285-11 |
PIN-GROOVE Price: $1.70 |
| 40 |
58-2720 |
PIN Price: $49.81 |
| 41 |
82-9540 |
DISCONTINUED X-REF Price: Call Us |
| 42 |
58-9210 |
CAM Price: $92.20 |
| 43 |
60-0080 |
BUSHING Price: $14.79 |
| 44 |
53-5940 |
SCREW Price: $2.90 |
| 45 |
60-1340 |
ROD-PUSH Price: $85.25 |
| 46 |
58-3570 |
SPRING Price: $16.80 |
| 47 |
117-8981 |
BUSHING-RUBBER This part replaces 59-7140. Price: $13.27 |
| 48 |
58-9630 |
SLEEVE Price: $123.35 |
| 49 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 50 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 51 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 52 |
61-3610 |
WARNING DECAL Price: $16.67 |
| 53 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 54 |
3217-6 |
NUT-HEX Price: $1.19 |
