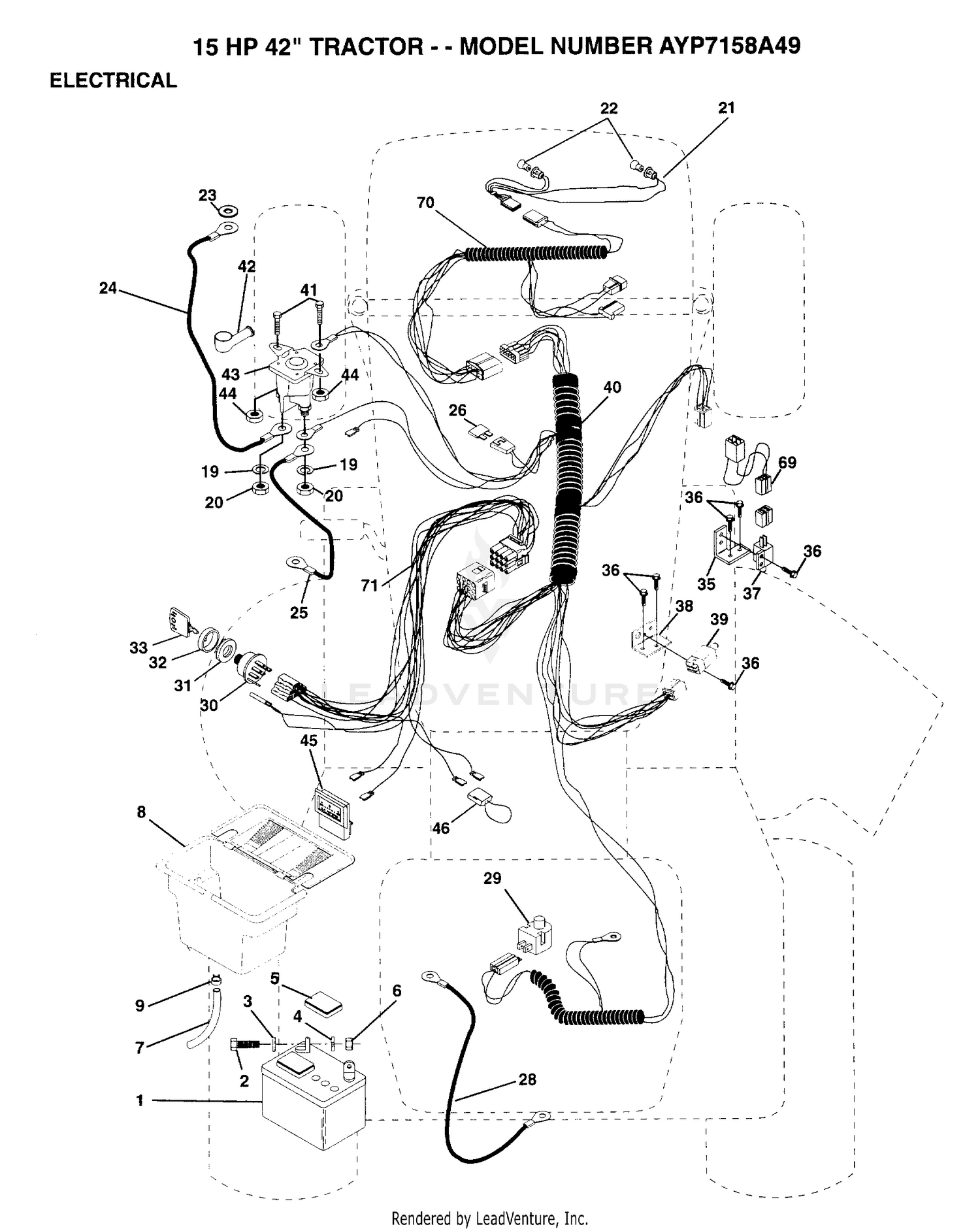

| Ref | Part Number | Description |
|---|
| 1 |
121265X |
SUB= 123899X Price: Call Us |
| 1 |
138-8207 |
DAMPER This part replaces 105-7280. Price: $181.45 |
| 2 |
105-7239 |
ROD-THREADED Price: $40.86 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
103-1167 |
JOINT-BALL END, LH Price: $30.99 |
| 3 |
19091016 |
WASHER Price: Call Us |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 4 |
108-5208 |
RH LEVER AND GRIP ASM Price: $66.24 |
| 5 |
108-5209 |
LH LEVER AND GRIP ASM Price: $91.15 |
| 6 |
120-5562-03 |
LEVER-CONTROL, MOTION This part replaces 108-9833-03. Price: $81.51 |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 7 |
109238X |
TUBE T Price: Call Us |
| 7 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 8 |
105-7199 |
END-ROD, ISOLATED Price: $93.34 |
| 8 |
129965 |
SUB= 156417 Price: Call Us |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 9 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 11 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 13 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 14 |
11050400 |
LOCKWASHER Price: Call Us |
| 14 |
99-3410 |
SWITCH Price: $95.63 |
| 15 |
322-9 |
SCREW-HH Price: $3.09 |
| 16 |
32120-46 |
RING-RETAINING Price: $1.99 |
| 17 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 18 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 20 |
139-1728 |
BOLT-HH FT This part replaces 9114524. Price: $1.29 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 22 |
322-6 |
SCREW-HH Price: $0.45 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 23 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 23 |
11150400 |
LOCKWASHER Price: Call Us |
| 24 |
108-9830 |
SHAFT-PIVOT Price: $40.68 |
| 24 |
132202 |
SUB= 146147 Price: Call Us |
| 25 |
105-3455 |
BUSHING Price: $2.89 |
| 26 |
105-3481 |
WASHER-THRUST Price: $1.19 |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 27 |
32152-6 |
NUT-LOCK, CONE Price: $7.99 |
| 28 |
108-9829-03 |
LEVER-DAMPER Price: $24.06 |
| 28 |
4207J |
CABLE T Price: Call Us |
| 29 |
108-9831 |
HUB-CONTROL Price: $124.06 |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
3219-3 |
NUT-HEX Price: $0.34 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
122147X |
KEY Price: Call Us |
| 33 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 34 |
1-303105 |
YOKE-ADJUSTABLE Price: $11.99 |
| 35 |
1-603737 |
BOLT-RETURN, NEUTRAL Price: $7.99 |
| 35 |
108236X |
BRACKET LT Price: Call Us |
| 36 |
1-603735 |
BUSHING-FLANGED Price: $5.69 |
| 36 |
17021008 |
SCREW Price: Call Us |
| 37 |
104445X |
SWITCH-INTER. GT Price: Call Us |
| 37 |
3219-2 |
NUT-HEX Price: $0.37 |
| 38 |
140336 |
BRACKET SWITCH IN Price: Call Us |
| 38 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 39 |
1-603807 |
SPRING-RETURN, NEUTRAL Price: $3.29 |
| 39 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 40 |
140707 |
HARNESS IGN B&S Price: Call Us |
| 40 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 41 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 42 |
3220-16 |
NUT-HEX JAM, LH Price: $1.79 |
| 43 |
138406 |
SUB= 146154 Price: Call Us |
| 43 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 45 |
121433X |
SUB= 122822X Price: Call Us |
| 46 |
141940 |
PROTECTION LOOP Price: Call Us |
| 69 |
140660 |
ADAPTER.HARN.SERV Price: Call Us |
| 70 |
141164 |
HARNESS ENGINE Price: Call Us |
