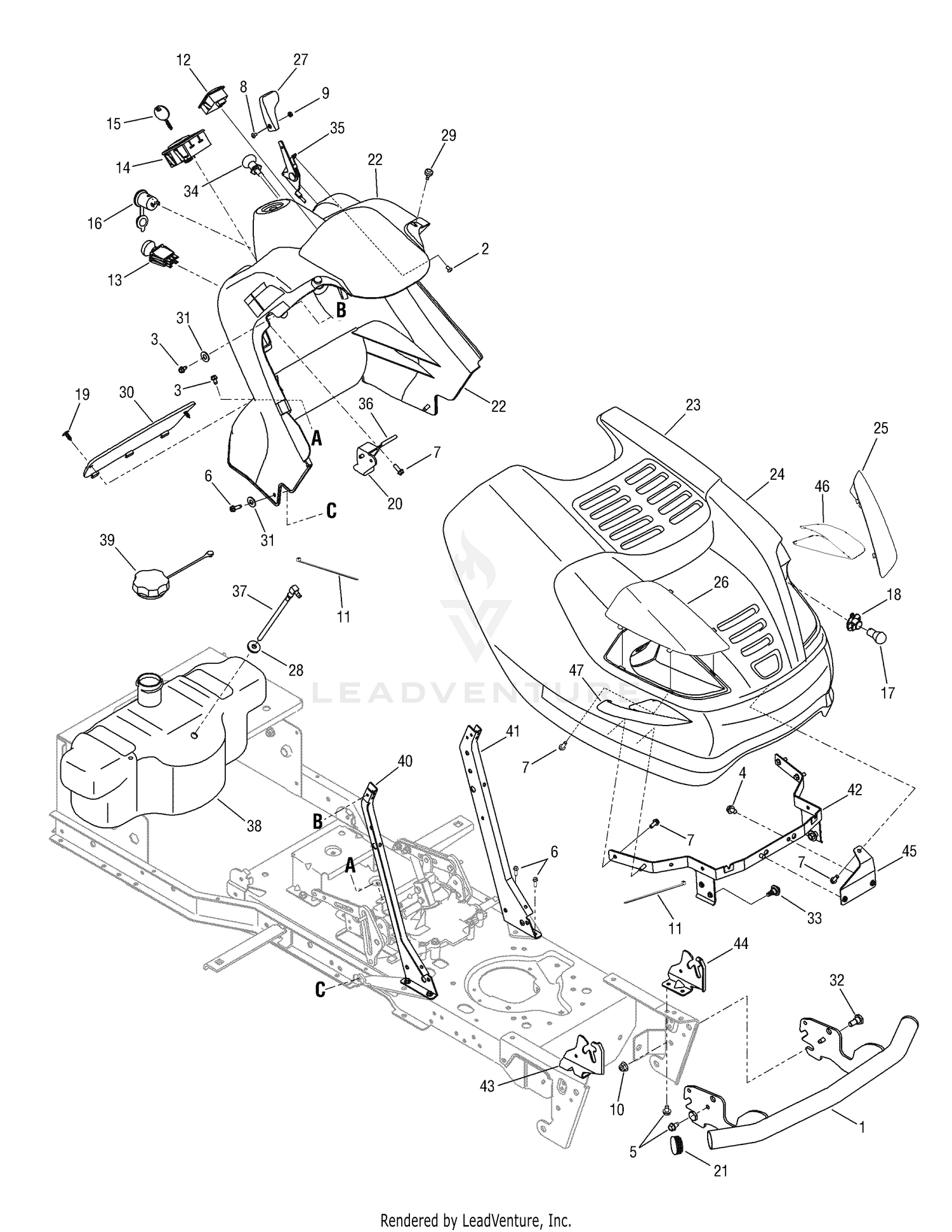

| Ref | Part Number | Description |
|---|
| 1 |
603001228 |
BOLT, D722, CAM END Price: $1.99 |
| 1 |
683-04219B-0637 |
Bumper Assembly, Universal This part replaces 683-04219A. Price: $53.16 |
| 1 |
93-7557 |
DISCONTINUED Price: Call Us |
| 2 |
32152-10 |
LOCKNUT Price: $0.81 |
| 2 |
603001232 |
CIRCLIP, EXTERNAL Price: $1.99 |
| 2 |
710-0192 |
Screw, Truss Hd. Mach., 10-24 x .375 Price: $3.08 |
| 3 |
603001233 |
STOPPER, FUEL, C/SHAFT Price: $2.99 |
| 3 |
710-0599 |
Screw, Hex Wash Hd. Tapp, 1/4-20 x .5 Price: $3.86 |
| 4 |
70-2780 |
PISTON Price: $133.22 |
| 4 |
710-0604A |
Screw, Hex Wash Hd. Tapp, 5/16-18 x .625 Price: $3.96 |
| 5 |
603001222 |
GEAR, INJECTION PUMP Price: $299.99 |
| 5 |
710-0607 |
Screw, Hex Wash Hd. Tapp, 5/16-18 x .5 Price: $6.06 |
| 6 |
603001223 |
BALL, INJECTION PUMP Price: $2.99 |
| 6 |
710-0642 |
Screw, Hex Wash Hd. Tapp, 1/4-20 x .75 Price: $4.05 |
| 7 |
603001224 |
SLEEVE, GOVERNOR Price: $49.99 |
| 7 |
710-0895 |
Screw, Hex Wash Hd. Tapp, 1/4-15 x .75 Price: $5.82 |
| 8 |
603001225 |
BALL, GOVERNOR Price: $2.99 |
| 8 |
710-3217 |
Screw, Truss Hd. Mach., #8-32 x .375 Price: $5.94 |
| 9 |
603001226 |
CASE, GOVERNOR BALL Price: $27.99 |
| 9 |
712-0142 |
Nut, Hex, 8-32 Price: $3.90 |
| 9 |
98-7353 |
DISCONTINUED Price: Call Us |
| 10 |
603001227 |
CIR-CLIP, GOV. SLEEVE Price: $2.99 |
| 10 |
712-04065 |
Nut, Hex Flange Insert Lock, 3/8-16 GrF Price: $3.68 |
| 11 |
603001229 |
BEARING, BALL, LEFT Price: $84.99 |
| 11 |
725-0157 |
Tie, Cable Price: $3.46 |
| 11 |
93-7991 |
COLLAR Price: $73.29 |
| 12 |
603001230 |
KEY, FEATHER, SHORT CAMSHAFT Price: $2.99 |
| 12 |
75-2120 |
SHAFT W/CLEVIS Price: $252.67 |
| 12 |
925-04022B |
Meter, Indicator This part replaces 725-04022B. Price: $129.03 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 13 |
603001231 |
CAMSHAFT, FUEL, SHORT Price: $279.99 |
| 13 |
925-04258A |
PTO SWITCH (YELLOW KNOB) TEXT SYM This part replaces 725-04258. Price: $52.26 |
| 14 |
925-06119C |
IGNITION MODULE SWITCH RMC (MAN PTO BLK) This part replaces 725-04227B. Price: $102.50 |
| 15 |
925-1745A |
Universal Key Switch This part replaces 725-2054A. Price: $15.91 |
| 16 |
725-2003 |
Receptacle, 12V Power Price: $37.53 |
| 17 |
925-0963 |
Headlight Bulb This part replaces 725-0963. Price: $6.73 |
| 18 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 19 |
726-3046 |
Clip, Ratchet Price: $3.71 |
| 20 |
731-04213 |
Lever, Dash Brake Price: $11.40 |
| 21 |
731-05368 |
Cap, Bumper Price: $5.11 |
| 22 |
731-05406 |
DASH Not Available Price: |
| 23 |
731-05434 |
HOOD Not Available Price: |
| 24 |
931-05435 |
HOOD PLENUM This part replaces 731-05435. Price: $79.45 |
| 25 |
731-05525 |
LENS (LH) Not Available Price: |
| 26 |
731-05526 |
Lense, Head Light RH Price: $14.24 |
| 27 |
931-3161A |
Knob, Throttle This part replaces 731-3161A. Price: $17.34 |
| 28 |
935-0149 |
Fuel Tank Bushing This part replaces 735-0149. Price: $2.43 |
| 29 |
735-0271A |
Bumper Price: $7.84 |
| 30 |
735-04076 |
ACCESSORY NET Not Available Price: |
| 31 |
736-0463 |
Washer, Flat, .25 x .63 x .0515 Price: $3.91 |
| 32 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 33 |
738-04091A |
Screw, Shoulder, .43 x .29:TT5/16-18 Price: $3.50 |
| 36 |
747-1155 |
BRAKE/CRUISE PIVOT ROD Not Available Price: |
| 37 |
751-10442 |
Fitting, Fuel Pick Up Price: $28.57 |
| 38 |
951-08858 |
FUEL TANK (2.82 GAL) This part replaces 751-10692. Price: $169.99 |
| 39 |
951-12428 |
Fuel Cap This part replaces 751-10703. Price: $37.82 |
| 40 |
783-04285F-0637 |
DASH SUPPORT Not Available This part replaces 783-04285F. Price: |
| 41 |
783-04323F-0637 |
DASH SUPPORT Not Available This part replaces 783-04323F. Price: |
| 42 |
783-04606C |
Hood Pivot Bracket This part replaces 783-04606B. Price: $34.80 |
| 43 |
783-04840 |
Bracket, Hood Pivot RH Price: $16.32 |
| 44 |
783-04841 |
HOOD PIVOT BRACKET Not Available Price: |
| 45 |
783-05162-0637 |
HOOD SUPPORT BRACKET Not Available This part replaces 783-05162. Price: |
| 46 |
777X42426 |
LABEL-RIDER:RT51:LENS DR LFT Not Available Price: |
