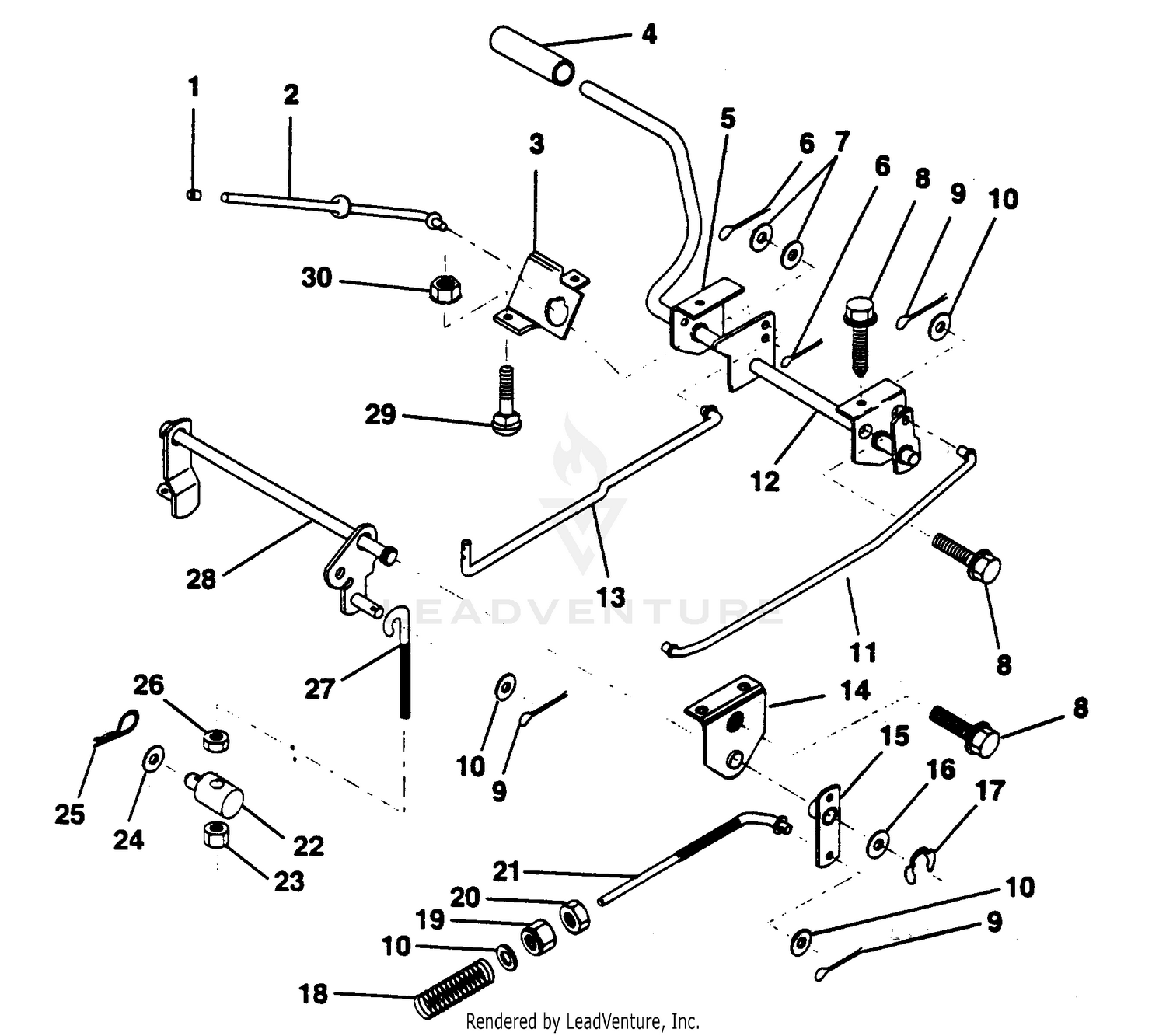

| Ref | Part Number | Description |
|---|
| 1 |
3231-4 |
SCREW-CARR Price: $3.59 |
| 1 |
532071673 |
Cap, Plunger Price: $3.99 |
| 2 |
106-3246-01 |
DEFLECTOR Price: $59.99 |
| 2 |
532123436 |
Rod, Parking Brake Price: $4.99 |
| 3 |
106-3248-03 |
STRAP-DISCHARGE Price: $26.99 |
| 3 |
532123437 |
Bracket, Parking Brake Price: $4.46 |
| 4 |
108-5029 |
DEFLECTOR-RUBBER Price: $57.99 |
| 4 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 5 |
108-4059-01 |
PLATE-HINGE, REAR Price: $25.99 |
| 5 |
532122504 |
Bracket, Clutch/Brake Pedal, L.H. Price: $3.08 |
| 6 |
106-3253-01 |
PLATE-HINGE, FRONT Price: $46.99 |
| 6 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 7 |
819131016 |
Washer 13/32 x 5/8 x 16 Ga. Price: $3.99 |
| 8 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 9 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 10 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 11 |
532123543 |
Rod, Brake Front Price: $8.38 |
| 12 |
532139933 |
Assembly, Clutch/Brake Pedal Price: $21.38 |
| 13 |
532123394 |
Rod, Clutch Price: $7.99 |
| 14 |
532121978 |
Bracket, Lift, Shaft Price: $2.38 |
| 15 |
532133332 |
Assembly, Brake, Pivot, Arm Price: $6.71 |
| 16 |
819251816 |
Washer 25/32 x 1-1/8 x 16 Ga. Price: $3.99 |
| 17 |
812000034 |
Ring, Klip Price: $2.99 |
| 18 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 19 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 20 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 21 |
532131461 |
CLUTCH KIT This part replaces 532131460. Price: $13.99 |
| 22 |
532144585 |
Trunnion, Lift This part replaces 532127378. Price: $7.99 |
| 23 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 24 |
819132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: $2.99 |
| 25 |
532004921 |
Retainer Spring This part replaces 532124961. Price: $3.99 |
| 26 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 27 |
532127369 |
Link, Threaded Price: $9.99 |
| 28 |
532140776 |
Assembly, Rear Mower Lift Price: $40.26 |
| 29 |
872110506 |
Bolt, Carriage 5/16-18 UNC x 3/4 Price: $3.99 |
