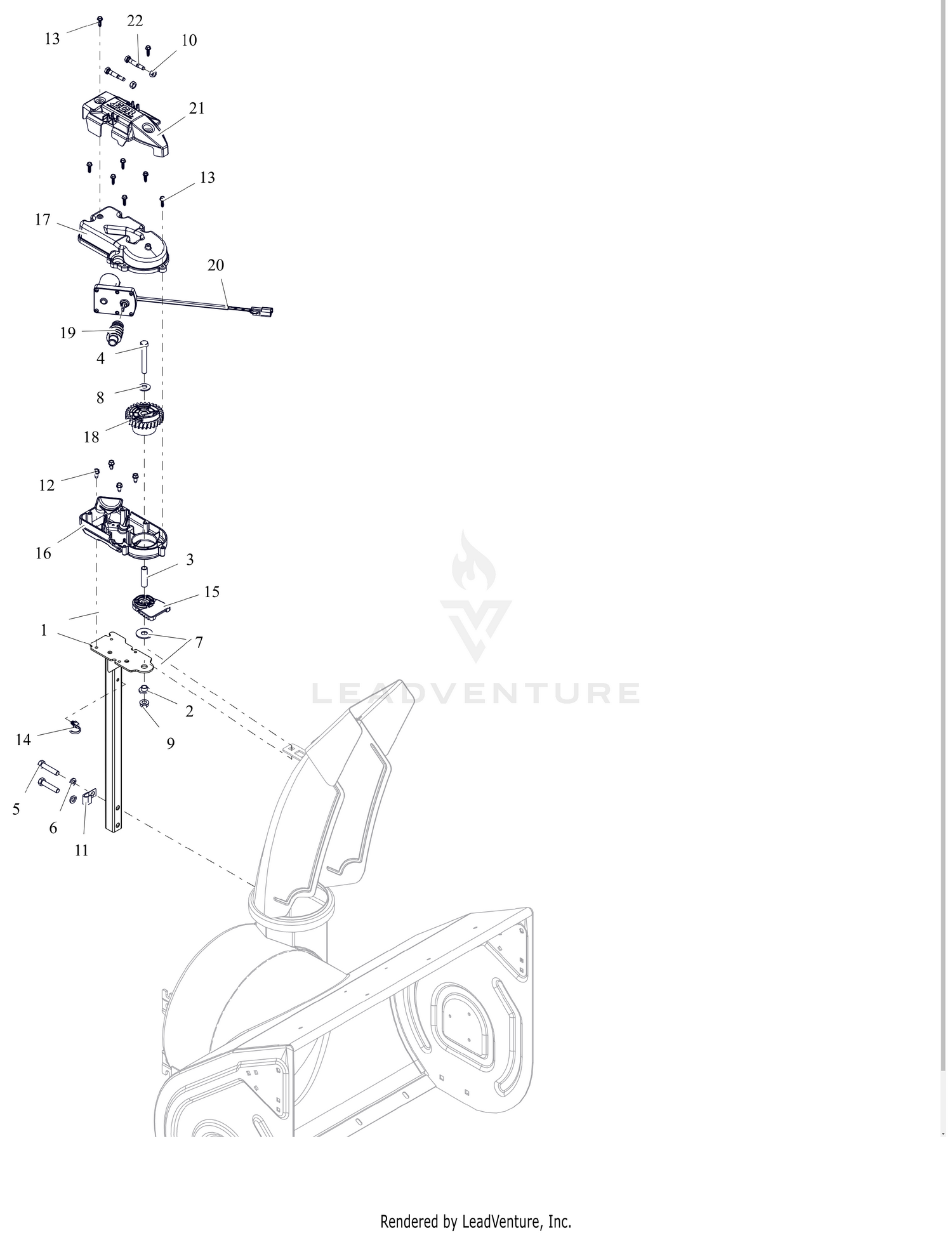

| Ref | Part Number | Description |
|---|
| 1 |
09429551 |
PEDESTAL- ELEC SNOW CHUTE Price: $119.45 |
| 2 |
05500435 |
BSHG-FLG .385X.500X.875X.406 Price: $1.95 |
| 3 |
05501438 |
BSHG-SLV- .391X.500X.1.750 Price: $1.95 |
| 4 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC Price: $3.95 |
| 5 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC Price: $1.45 |
| 6 |
06300116 |
WSHR,LK-REG .375X.094 ZCC Price: $0.95 |
| 7 |
06400904 |
WSHR-FLT-NYL .515X1.375X.093 Price: $2.45 |
| 8 |
06401008 |
WSHR,FLT .438X1.00X.083 ZCC Price: $1.45 |
| 9 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 10 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC Price: $1.45 |
| 11 |
06909400 |
J-CLAMP Price: $3.45 |
| 12 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 13 |
06100232 |
SCR, PLASTITE #12X.75 ZCC Price: $0.95 |
| 14 |
07500040 |
CABLE TIE W/ TREE (.25 HOLE) Price: $3.45 |
| 15 |
09384300 |
ADAPTOR, CHUTE Price: $16.45 |
| 16 |
09384400 |
ENCLOSURE, CHUTE ROTATION (MALE) Price: $39.45 |
| 17 |
09384500 |
ENCLOSURE, CHUTE ROATATION (FEMALE) Price: $43.95 |
| 18 |
09384600 |
GEAR, HELICAL Price: $19.95 |
| 19 |
09384700 |
WORM, DRIVE Price: $9.95 |
| 20 |
09384800 |
MOTOR, E-CHUTE Price: $98.95 |
| 21 |
09425100 |
COVER- ELECTRIC CHUTE Price: $15.45 |
