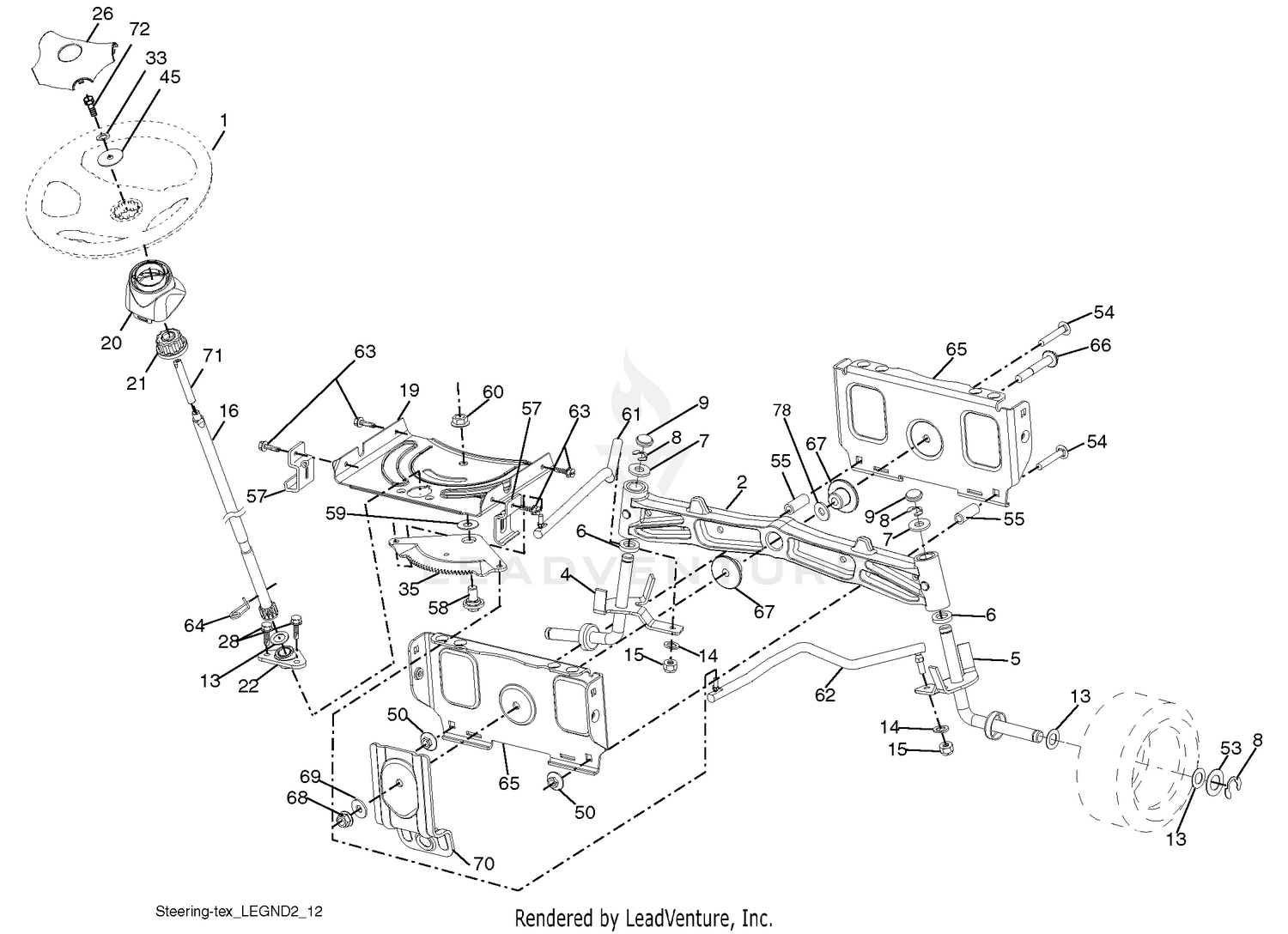

| Ref | Part Number | Description |
|---|
| 1 |
186093X428 |
Wheel, Steering Price: Call Us |
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
184706 |
Axle Asm., Front Price: Call Us |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
403087 |
Spindle Asm., LH Price: Call Us |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
108-1402 |
GEAR CASE ASM This part replaces 99-8381. Price: $859.88 |
| 5 |
403088 |
Spindle Asm., RH Price: Call Us |
| 6 |
6266H |
Bearing, Race Thrust Harden Price: Call Us |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 7 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 7 |
98-9372 |
O-RING Price: $1.66 |
| 8 |
12000029 |
Ring, Clip #T5304-75 Price: Call Us |
| 8 |
98-7547 |
O-RING Price: $0.92 |
| 9 |
121232X |
Cap, Spindle Price: Call Us |
| 9 |
98-9356 |
BOLT Price: $2.06 |
| 10 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 11 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 12 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 13 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 13 |
98-9437 |
BOLT Price: $1.05 |
| 14 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 14 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 15 |
73540600 |
Nut, Crown Lock 3/8-24 unf Price: Call Us |
| 15 |
98-9684 |
GASKET-CASE, GEAR Price: $2.18 |
| 16 |
408220 |
Shaft Steering Price: Call Us |
| 16 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 19 |
194729 |
Plate Steering Price: Call Us |
| 20 |
198375X428 |
Boot, Steering Price: Call Us |
| 21 |
186737 |
Adapter, Wheel Steering Price: Call Us |
| 22 |
194845 |
Bushing, Strg. Blk Price: Call Us |
| 26 |
186095X428 |
Insert, Wheel Steering Price: Call Us |
| 28 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 33 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 35 |
194732 |
Gear, Sector Plate Price: Call Us |
| 45 |
19113812 |
Washer 11/32 x 2-3/8 x 12 Ga. Price: Call Us |
| 50 |
73900600 |
Nut Lock Flg 3/8-16 unc Price: Call Us |
| 53 |
188967 |
Washer Hardened .793 x 1.637 x .060 Price: Call Us |
| 54 |
74760636 |
Bolt Hex HS 3/8-16 unc x 2-1/4 Price: Call Us |
| 55 |
414736 |
Spacer Brace Axle Price: Call Us |
| 57 |
407465 |
Bracket Upstop Price: Call Us |
| 58 |
194747 |
Bolt Shoulder Sector Pivot CFM Price: Call Us |
| 59 |
194748 |
Washer Thrust Sector Steering Price: Call Us |
| 60 |
73971000 |
Nut Flange Lock 5/8-11 Price: Call Us |
| 61 |
194740 |
Draglink, LH Price: Call Us |
| 62 |
194741 |
Draglink, RH Price: Call Us |
| 63 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 64 |
199849 |
Retainer Clip Spring Steering Price: Call Us |
| 65 |
194734 |
Brace Axle Front Price: Call Us |
| 66 |
71020748 |
Bolt Hex Fghd 7/16-14 x 3 Serr Price: Call Us |
| 67 |
194737 |
Bushing PM Front Axle Price: Call Us |
| 68 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 69 |
199162 |
Washer 1.5 x .505 x .118 Price: Call Us |
| 70 |
196197 |
Bracket Deck Susp. Front Price: Call Us |
| 71 |
196075 |
Shaft Ext. Steering Price: Call Us |
| 72 |
74780572 |
Bolt 5/16-18 x 4.5 Gr. 5 Price: Call Us |
