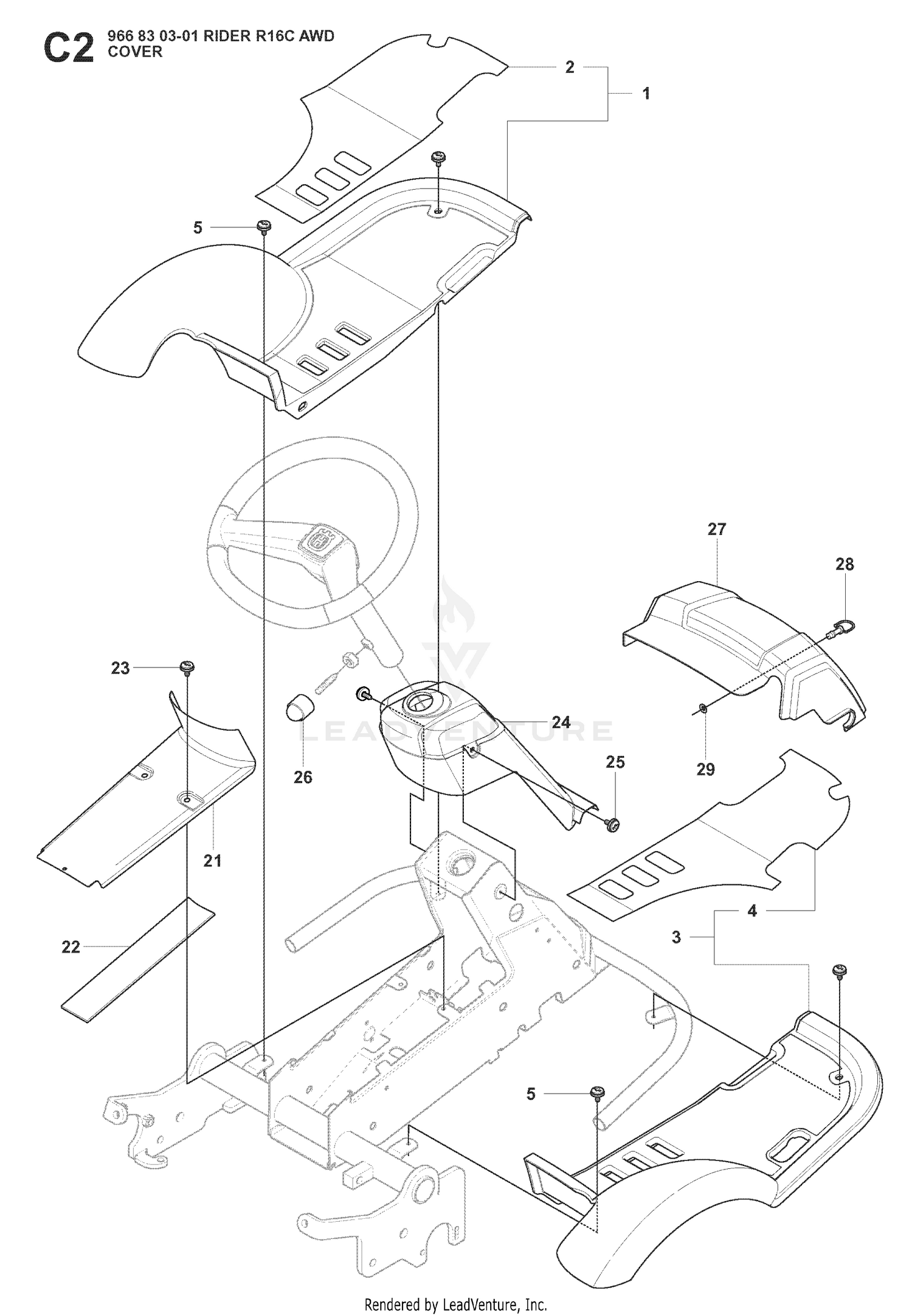

COVER 3
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-3809 | FRAME ASM Price: $6,114.03 |
| 1 | 544895901 | FOOT PLATE Price: $39.99 |
| 2 | 110-9041 | STEP-ALUMINUM Price: $158.64 |
| 2 | 544248401 | MAT Price: $7.99 |
| 3 | 127-2697-01 | BRACKET-STEP Price: $21.97 |
| 3 | 544895903 | FOOT PLATE Price: $44.99 |
| 4 | 323-36 | SCREW-HH Price: $3.05 |
| 4 | 544248403 | MAT Price: $7.99 |
| 5 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 5 | 544400501 | SCREW Price: $3.99 |
| 6 | 322-17 | SCREW-HH Price: $2.62 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 95-9495 | CAP Price: $5.02 |
| 9 | 3255-8 | WASHER-LOCK Price: $0.31 |
| 10 | 110-8972 | HOOK-LATCH Price: $8.25 |
| 11 | 110-9012 | CAPLUG Price: $3.94 |
| 12 | 110-9013 | CAPLUG Price: $3.94 |
| 13 | 32104-17 | SCREW-HWH Price: $0.99 |
| 14 | 147-3550 | BUMPER ASM This part replaces 110-8951-03. Price: $230.25 |
| 15 | 120-6274 | MOUNT-ENGINE Price: $30.17 |
| 16 | 2410-42 | CAP-END Price: $11.62 |
| 17 | 3231-21 | SCREW-CARR Price: $0.76 |
| 18 | 3234-29 | SCREW-HHF Price: $1.84 |
| 19 | 3230-1 | BOLT-CARR Price: $1.49 |
| 20 | 108-7584-01 | PLATE-GUIDE, ROD Price: $12.35 |
| 21 | 117-0155 | BRACKET-4WD, LH Price: $15.11 |
| 22 | 117-0154 | BRACKET-4WD, RH Price: $13.87 |
| 22 | 544427501 | MAT Price: $8.99 |
| 23 | 544400501 | SCREW Price: $3.99 |
| 24 | 544326501 | COVER Price: $24.99 |
| 25 | 544400501 | SCREW Price: $3.99 |
| 26 | 544433201 | PROTECTIVE COVER Price: $3.99 |
| 27 | 544374201 | NEEDS DESCRIPTION Price: Call Us |
| 28 | 525390601 | BOLT This part replaces 506963501. Price: $8.99 |
| 29 | 506963601 | WASHER Price: $2.99 |
