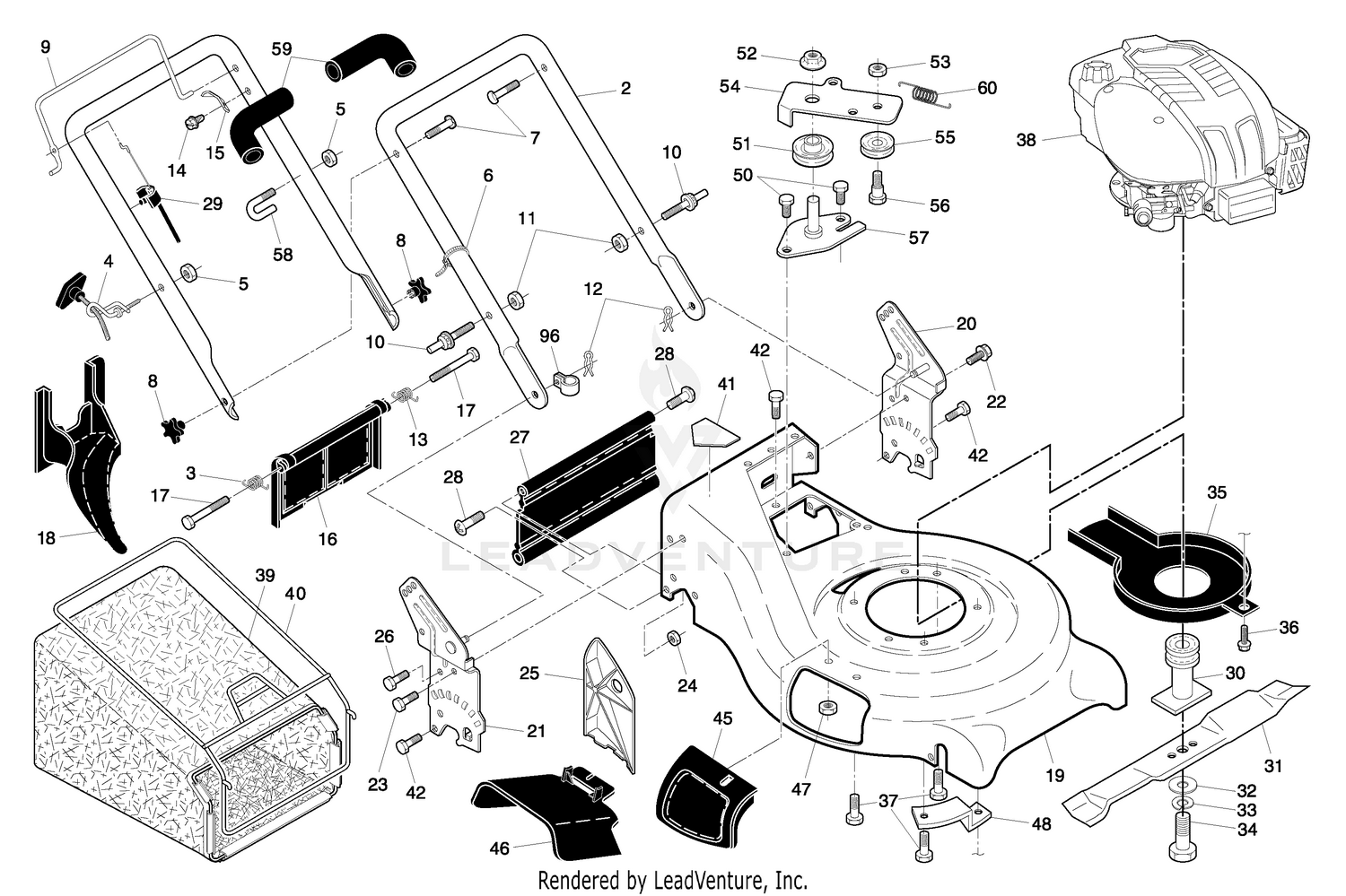

| Ref | Part Number | Description |
|---|
| 1 |
75-0540 |
TETHER AND BUTTON KIT This part replaces 2410-73. Price: $6.89 |
| 2 |
532197202 |
HANDLE.LOWER.21.GREY Price: $19.99 |
| 2 |
75-0540 |
TETHER AND BUTTON KIT Price: $6.89 |
| 3 |
532186053 |
SPRING.LH.REAR.DOOR.21.RWGD Price: $8.99 |
| 3 |
93-4365 |
CAP-OIL Price: $55.97 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 4 |
85-9510 |
DISCONTINUED Price: Call Us |
| 5 |
237-79 |
O-RING Price: $5.46 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 6 |
354-120 |
FITTING-ELBOW, 90 Price: $30.04 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 8 |
237-146 |
O-RING Price: $3.75 |
| 8 |
532185588 |
KNOB.HANDLE.STAR.HUSQ.GRAY Price: $5.99 |
| 9 |
23-8910 |
STEM-BARB-90 Price: $153.60 |
| 9 |
532197019 |
BAIL.DSTRT.FL.AW.CREAS.ORANGE Price: $14.99 |
| 10 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 10 |
532188821 |
BOLT Price: $4.99 |
| 11 |
85-7610 |
DISCONTINUED Price: Call Us |
| 11 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 12 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 13 |
532186052 |
SPRING.RH.REAR.DOOR.21.RWGD Price: $4.99 |
| 14 |
321-3 |
SCREW-HH Price: $0.28 |
| 14 |
532750634 |
SCREW Price: $2.99 |
| 15 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 15 |
61-3770 |
FILTER HEAD ASM Price: $132.08 |
| 16 |
354-78 |
FITTING-STR Price: $49.33 |
| 16 |
532190574 |
DOOR.REAR.PLASTIC.21.RWGD.BLAC Price: $36.99 |
| 17 |
532184193 |
BOLT Price: $4.99 |
| 17 |
85-7680 |
DISCONTINUED Price: Call Us |
| 18 |
23-9740 |
FILTER-OIL, HYDRAULIC Price: $13.14 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. Price: $32.99 |
| 19 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 19 |
532403816 |
KIT.HSG.21.RGD.4PT.ORA Price: $121.99 |
| 20 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 20 |
532403296 |
LH HANDLE BRACKET ASSEMBLY Price: $11.99 |
| 21 |
323-5 |
SCREW-HH Price: $0.41 |
| 21 |
532403297 |
BRKT.HANDLE.ASM.RWGD.21.RT.BLA Price: $11.99 |
| 22 |
322-2 |
SCREW-HH Price: $0.69 |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
85-8570-03 |
SHROUD-UPPER This part replaces 85-8570. Price: $19.18 |
| 25 |
14-7579 |
DISCONTINUED Price: Call Us |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 26 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
3274-86 |
SCREW-HSH Price: $1.76 |
| 27 |
532192876 |
SKIRT.21.RWGD.BLACK Price: $6.99 |
| 28 |
532088652 |
HINGE SCREW Price: $3.99 |
| 28 |
85-9590 |
HOSE-HYD Price: $74.97 |
| 29 |
237-22 |
O-RING Price: $2.43 |
| 29 |
532191221 |
SNAP-ON.ZONE.CABLE.ASS Price: $19.99 |
| 30 |
108-8457 |
COOLER-OIL This part replaces 85-9460. Price: $405.79 |
| 30 |
532421176 |
ADAPTER.BLADE/PULLEY.25M This part replaces 532189179. Price: $24.99 |
| 31 |
532189028 |
BLADE.21.PUSH/RWGD/FWG Price: $19.99 |
| 31 |
88-8120 |
SCREEN-COOLER, LH Price: $52.83 |
| 32 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 32 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 33 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 33 |
88-8110 |
SCREEN-COOLER, RH Price: $52.83 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 34 |
85-9670 |
NUT-T Price: $1.63 |
| 35 |
532188786 |
DEBRIS SHEILD Price: $6.99 |
| 35 |
85-9550 |
RUBBER CLAMP ASM Price: $5.56 |
| 36 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 36 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 37 |
92-2349 |
TUBE-VALVE TO COOLER Price: $61.15 |
| 38 |
77-3100 |
DECAL-WARNING Price: $7.89 |
| 38 |
84-6760 |
WARNING DECAL Price: $39.26 |
| 38 |
93-7272 |
DECAL-WARNING Price: $6.37 |
| 39 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 39 |
532401683 |
GBAG.44710247.SILVER. Price: $99.99 |
| 40 |
532194644 |
FRAME.CATCHER.21.RGD.AG Price: $49.99 |
| 40 |
92-8959 |
TANK-HYD Price: $723.53 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 42 |
532054583 |
SCREW Price: $4.99 |
| 45 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532190510. Price: $99.99 |
| 46 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532190512. Price: $8.99 |
| 47 |
532088349 |
NUT Price: $3.99 |
| 48 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $4.99 |
| 50 |
532057808 |
SCREW Price: $1.99 |
| 51 |
532193791 |
PULLEY.IDLER.V-BELT Price: $12.99 |
| 52 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 53 |
873930500 |
NUT.CENTERLOCK.5/16- This part replaces 532155552. Price: $3.99 |
| 54 |
532185898 |
IDLER ARM Price: $3.99 |
| 55 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 56 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 57 |
532193315 |
BRACKET.IDLER.ASM.EZ Price: $5.99 |
| 58 |
532182003 |
CLIP Price: $5.99 |
| 59 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 60 |
532406558 |
SPRING This part replaces 532182226. Price: $6.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
