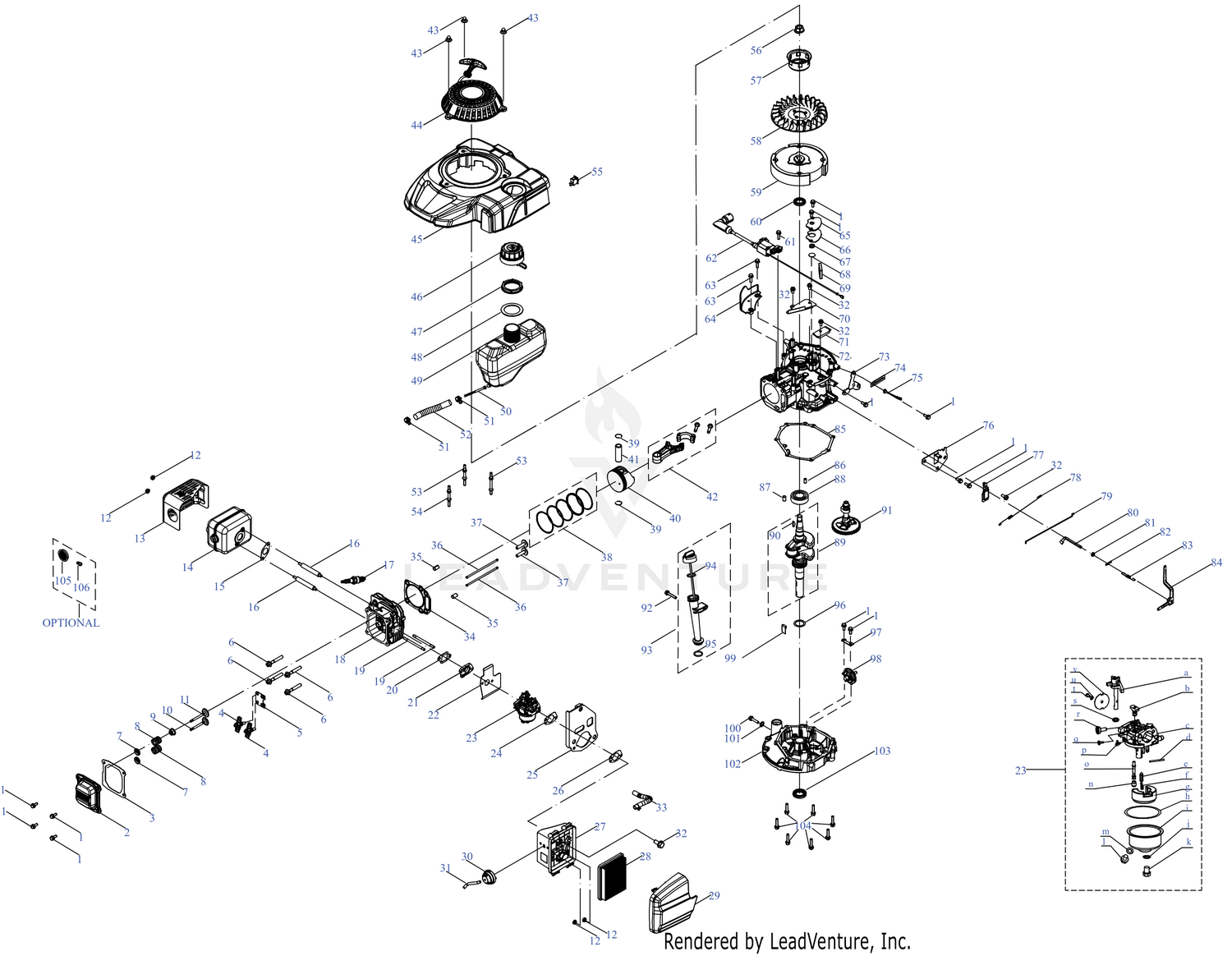

| Ref | Part Number | Description |
|---|
| a |
None |
Throttle Shaft |
| b |
None |
Idle Jet Assembly |
| c |
None |
Carburetor Body |
| d |
711-06043A |
FLOAT PIN This part replaces 711P06043. Price: $0.56 |
| e |
793P00165A |
NEEDLE VALVE This part replaces 793P00165. Price: $4.13 |
| f |
732P05251A |
NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| g |
731P09132A |
FLOAT Price: $4.45 |
| h |
721-04710A |
FLOAT BOWL O-RING This part replaces 721-04710. Price: $2.15 |
| i |
908-05001 |
FLOAT BOWL Price: $7.16 |
| j |
721-04709 |
FLOAT BOWL GASKET Price: $0.10 |
| k |
None |
Fuel Bowl Mounting Bolt |
| l |
None |
Fuel Drain Plug |
| m |
None |
Fuel Drain Plug Gasket |
| n |
None |
Main Jet |
| o |
None |
Emulsion Tube |
| p |
951-12019A |
PRIMER HOSE Price: $6.17 |
| q |
None |
Idle Mixture Screw |
| r |
None |
Idle Speed Adjusting Screw |
| s |
None |
Throttle/Choke Shaft Fiber O-Ring |
| t |
None |
Screw M3×6 Throttle Plate |
| u |
None |
Throttle Plate Lock Washer |
| v |
None |
Throttle Plate |
| 1 |
710-04916 |
BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 |
951-14609A |
VALVE COVER This part replaces 951-14609. Price: $14.42 |
| 3 |
951-11551 |
VALVE COVER GASKET Price: $9.14 |
| 4 |
951-11606A |
ROCKER ARM This part replaces 951-11606. Price: $29.12 |
| 5 |
951-11687A |
PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 6 |
910-06185 |
BOLT-M8 x 54 Price: $5.88 |
| 7 |
951-11977 |
VALVE SPRING RETAINER Price: $3.60 |
| 8 |
751P12004A |
VALVE SPRING This part replaces 951-12004. Price: $1.74 |
| 9 |
921-04237A |
INTAKE VALVE SEAL This part replaces 921-04237. Price: $7.20 |
| 10 |
951-14641 |
EXHAUST VALVE Price: $8.71 |
| 11 |
951-14640A |
INTAKE VALVE This part replaces 951-14640. Price: $8.71 |
| 12 |
712-05015 |
HEX NUT Price: $5.78 |
| 13 |
951-15566 |
MUFFLER SHIELD Price: $24.41 |
| 14 |
951-10403 |
MUFFLER Price: $72.42 |
| 15 |
951-14427A |
MUFFLER GASKET This part replaces 951-14427. Price: $6.38 |
| 16 |
710-05094 |
STUD M6-1 x 95 Price: $3.78 |
| 17 |
951-14437 |
SPARK PLUG Price: $7.34 |
| 18 |
951-14639 |
CYLINDER HEAD Price: $108.54 |
| 19 |
951-14826 |
CARBURETOR STUD-M6 x 87 Price: $6.34 |
| 20 |
951-14827 |
CARBURETOR GASKET Price: $7.20 |
| 21 |
951-11738A |
CARBURETOR INSULATOR This part replaces 951-11738. Price: $4.60 |
| 22 |
951-14424 |
CARBURETOR GASKET Price: $9.35 |
| 23 |
651P07175 |
CARBURETOR This part replaces 651-07175. Price: $40.82 |
| 24 |
951-14419A |
AIR FILTER BASE GASKET This part replaces 951-14419. Price: $7.08 |
| 25 |
908-05251 |
AIR FILTER BRACKET Price: $5.89 |
| 26 |
951-14422 |
CHOKE TEMP CONTROL BRACKET GSKT Price: $6.71 |
| 27 |
931-12770 |
AIR FILTER BASE WITH PRIMER Not Available Price: |
| 28 |
951-15245 |
AIR FILTER Price: $13.77 |
| 29 |
931-12768A |
AIR FILTER COVER This part replaces 931-12768. Price: $9.78 |
| 30 |
951-05177A |
PRIMER ASSEMBLY This part replaces 951-05177. Price: $12.83 |
| 31 |
735P05218 |
PRIMER HOSE This part replaces 735-05218. Price: $1.42 |
| 32 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 33 |
951-15567 |
BREATHER HOSE ASSEMBLY Price: $5.25 |
| 34 |
951-14431 |
CYLINDER HEAD GASKET Price: $14.44 |
| 35 |
715-04108 |
DOWEL PIN Price: $3.65 |
| 36 |
747P04862A |
PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 37 |
951-14432A |
TAPPET This part replaces 951-14432. Price: $7.49 |
| 38 |
951-14433A |
PISTON RING SET This part replaces 951-14433. Price: $34.45 |
| 39 |
951-11603 |
SNAP RING-PISTON PIN Price: $3.53 |
| 40 |
951-14434A |
PISTION This part replaces 951-14434. Price: $56.68 |
| 41 |
951-14435 |
PISTON PIN Price: $11.17 |
| 42 |
951-14436A |
CONNECTING ROD This part replaces 951-14436. Price: $61.10 |
| 43 |
712-04276A |
ACORN NUT M6-1 This part replaces 712-04276. Price: $5.38 |
| 44 |
951-05360A |
RECOIL STARTER ASSEMBLY This part replaces 951-05360. Price: $50.15 |
| 45 |
931-05437 |
ENGINE SHROUD ASSEMBLY Not Available Price: |
| 46 |
951-15255A |
FUEL CAP W/TETHER This part replaces 951-15255. Price: $23.25 |
| 47 |
931-10290A |
FUEL TANK NUT This part replaces 931-10290. Price: $4.85 |
| 48 |
951-14406A |
FUEL TANK GROMMET This part replaces 951-14406. Price: $9.68 |
| 49 |
931-12771A |
FUEL TANK This part replaces 931-12771. Price: $43.89 |
| 50 |
951-12296A |
FUEL FILTER This part replaces 951-12296. Price: $8.68 |
| 51 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 52 |
935-05215A |
FUEL HOSE This part replaces 935-05215. Price: $11.42 |
| 53 |
951-14397 |
STARTER/SHROUD REAR STUD Price: $8.66 |
| 54 |
951-14398 |
STARTER/SHROUD FRONT STUD Price: $8.66 |
| 55 |
925-06174 |
IGNITION SWITCH Price: $10.67 |
| 56 |
712-04287A |
FLYWHEEL NUT M14-1.5 This part replaces 712-04287. Price: $5.33 |
| 57 |
951-12161 |
STARTER CUP Not Available Price: |
| 58 |
951-10909B |
COOLING FAN This part replaces 951-10934. Price: $20.39 |
| 59 |
951-14596 |
FLYWHEEL Price: $90.77 |
| 60 |
951-11596A |
UPPER CRANKSHAFT SEAL This part replaces 951-11596. Price: $5.44 |
| 61 |
710-04918 |
BOLT M6-1 x 20 GR8.8 Price: $3.56 |
| 62 |
925-07035 |
IGNITION COIL Not Available Price: |
| 63 |
710-04919 |
BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 64 |
951-14597A |
ENGINE BRAKE COVER PLATE This part replaces 951-14597. Price: $7.10 |
| 65 |
951-14404 |
BREATHER COVER PLATE Price: $12.64 |
| 66 |
951-14405 |
BREATHER GASKET Price: $8.96 |
| 67 |
732-04718 |
BREATHER VALVE SPRING Price: $3.78 |
| 68 |
951-11614 |
BREATHER VALVE Price: $3.53 |
| 69 |
951-11730 |
BREATHER SCREEN Price: $4.75 |
| 70 |
951-14605 |
AIR VANE COVER PLATE Price: $5.43 |
| 71 |
908-05252 |
GROUND COVER PLATE Price: $3.32 |
| 72 |
951-14635 |
CRANKCASE Price: $168.31 |
| 73 |
908-05253 |
CHOKE CONTROL BRACKET Price: $4.49 |
| 74 |
951-11622A |
FLEXIBLE CLAMP This part replaces 951-11622. Price: $3.42 |
| 75 |
925-07036 |
GROUND WIRE Price: $3.25 |
| 76 |
908-05254 |
COMPONENT BRACKET Price: $5.71 |
| 77 |
908-05255 |
GOVERNOR SHIELD Price: $4.02 |
| 78 |
951-14409 |
THROTTLE LINKAGE SPRING Price: $7.61 |
| 79 |
951-14721 |
THROTTLE LINKAGE Price: $5.88 |
| 80 |
951-11621 |
GOVERNOR ARM SHAFT Price: $8.68 |
| 81 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 82 |
714-04078 |
COTTER PIN Price: $3.66 |
| 83 |
951-15570 |
GOVERNOR SPRING Price: $5.25 |
| 84 |
951-05160A |
GOVERNOR ARM ASSEMBLY Price: $5.37 |
| 85 |
951-14415 |
CRANKCASE COVER GASKET Price: $12.77 |
| 86 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 87 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 88 |
951-11369 |
BEARING Price: $30.42 |
| 89 |
951-14607 |
CRANKSHAFT ASSEMBLY Not Available Price: |
| 90 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 91 |
951-15571 |
CAMSHAFT ASSEMBLY Price: $35.99 |
| 92 |
710-04980 |
BOLT M6-1 x 35 GR8.8 Price: $3.42 |
| 93 |
951-05438 |
OIL DIPSTICK ASSEMBLY Price: $12.27 |
| 94 |
921-04795A |
O-RING This part replaces 921-04795. Price: $3.38 |
| 95 |
921-04697A |
O-RING This part replaces 921-04697. Price: $2.45 |
| 96 |
736-04491 |
THRUST WASHER Price: $3.78 |
| 97 |
951-11609 |
GOVERNOR GEAR MOUNTING PLATE Price: $4.44 |
| 98 |
951-05336A |
GEAR GOVERNOR This part replaces 951-05336. Price: $7.77 |
| 99 |
951-11733 |
OIL RETURN SEAL Price: $4.28 |
| 100 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 101 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 102 |
951-14418A |
CRANKCASE COVER This part replaces 951-14418. Price: $83.09 |
| 103 |
951-11545A |
LOWER CRANKSHAFT SEAL This part replaces 951-11545. Price: $9.07 |
| 104 |
710-04943 |
BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 105 |
951-10351A |
SPARK ARRESTOR This part replaces 951-10351. Price: $48.91 |
| 106 |
710-04983 |
SCREW M3.5 x 9.5 Price: $3.65 |
