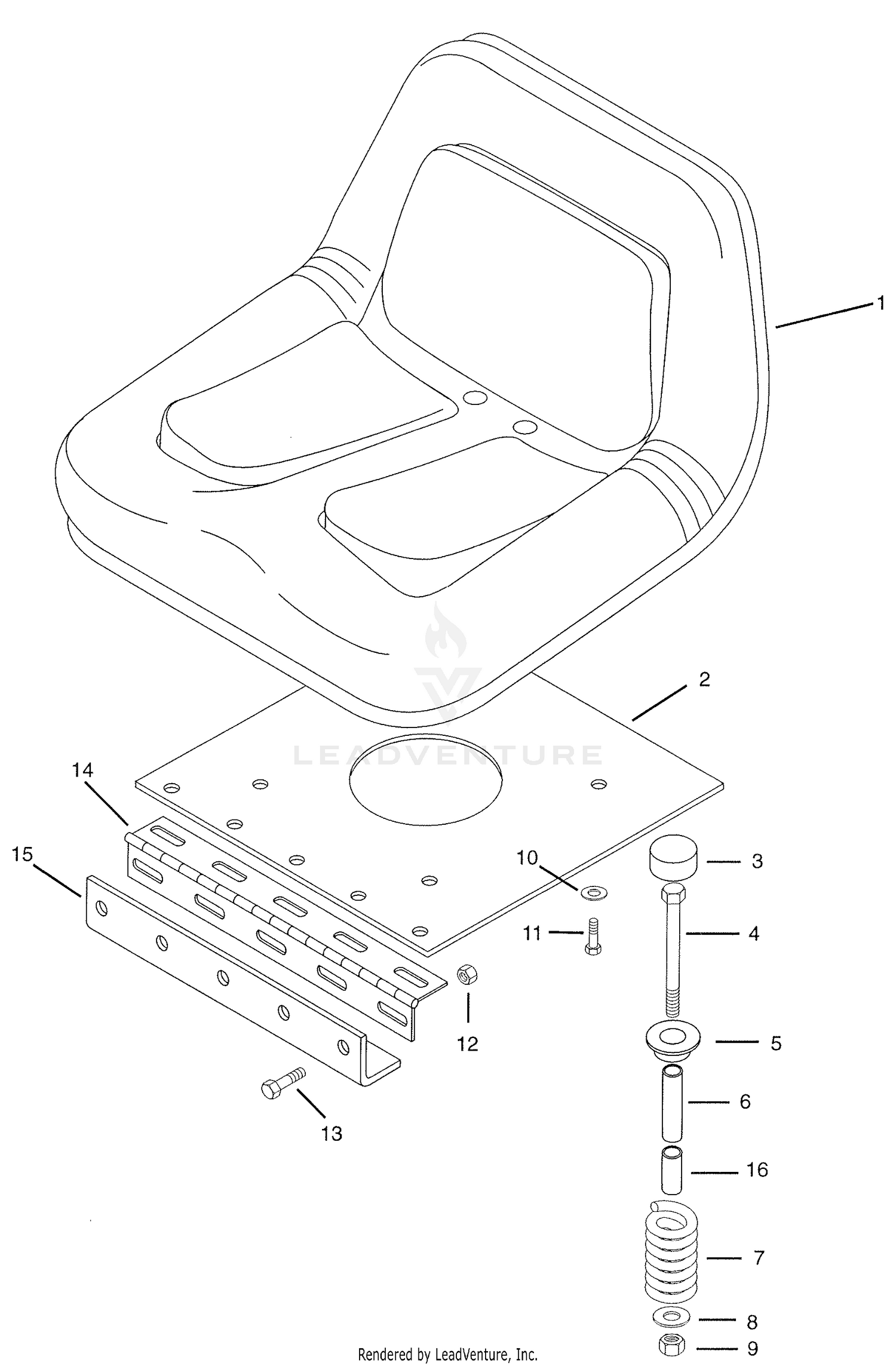

| Ref | Part Number | Description |
|---|
| 1 |
09112400 |
SEAT, V-560 HIGH BACK Price: $209.95 |
| 2 |
09106800 |
PLT,SEAT MTG Price: $45.55 |
| 3 |
07521100 |
MOLDED CAP 1.5OD,1.0ID,.44THK This part replaces 20078900. Price: $5.45 |
| 4 |
05901636 |
BLT,HEX .25-20X2.25 G5 ZCC This part replaces 05932700. Price: $2.45 |
| 5 |
21324300 |
CAP,VALVE SPRING Price: $10.20 |
| 6 |
09107900 |
BUSHING, SPLIT ROLLED Price: $5.00 |
| 7 |
08328400 |
SG-COMP .148X1.095X1.75 Price: $22.90 |
| 8 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06412300. Price: $0.45 |
| 9 |
06500832 |
NUT-NYL .25-20 G5 ZCC This part replaces 06506600. Price: $4.45 |
| 10 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06303600. Price: $0.95 |
| 11 |
05901832 |
BLT, HEX .31-18X.625 G5 ZCC This part replaces 05932100. Price: $1.45 |
| 12 |
06500820 |
NUT-NYL .31-18 G5 ZCC This part replaces 06506200. Price: $0.95 |
| 13 |
05901832 |
BLT, HEX .31-18X.625 G5 ZCC This part replaces 05932100. Price: $1.45 |
| 14 |
03102800 |
HINGE-2" X 12.88 YWZC Price: $21.95 |
| 15 |
09106900 |
BRKT,SEAT SUPPORT Price: $24.75 |
| 78702900 |
KIT,ARM |
REST G SERIES Price: Call Us 78702900 |
