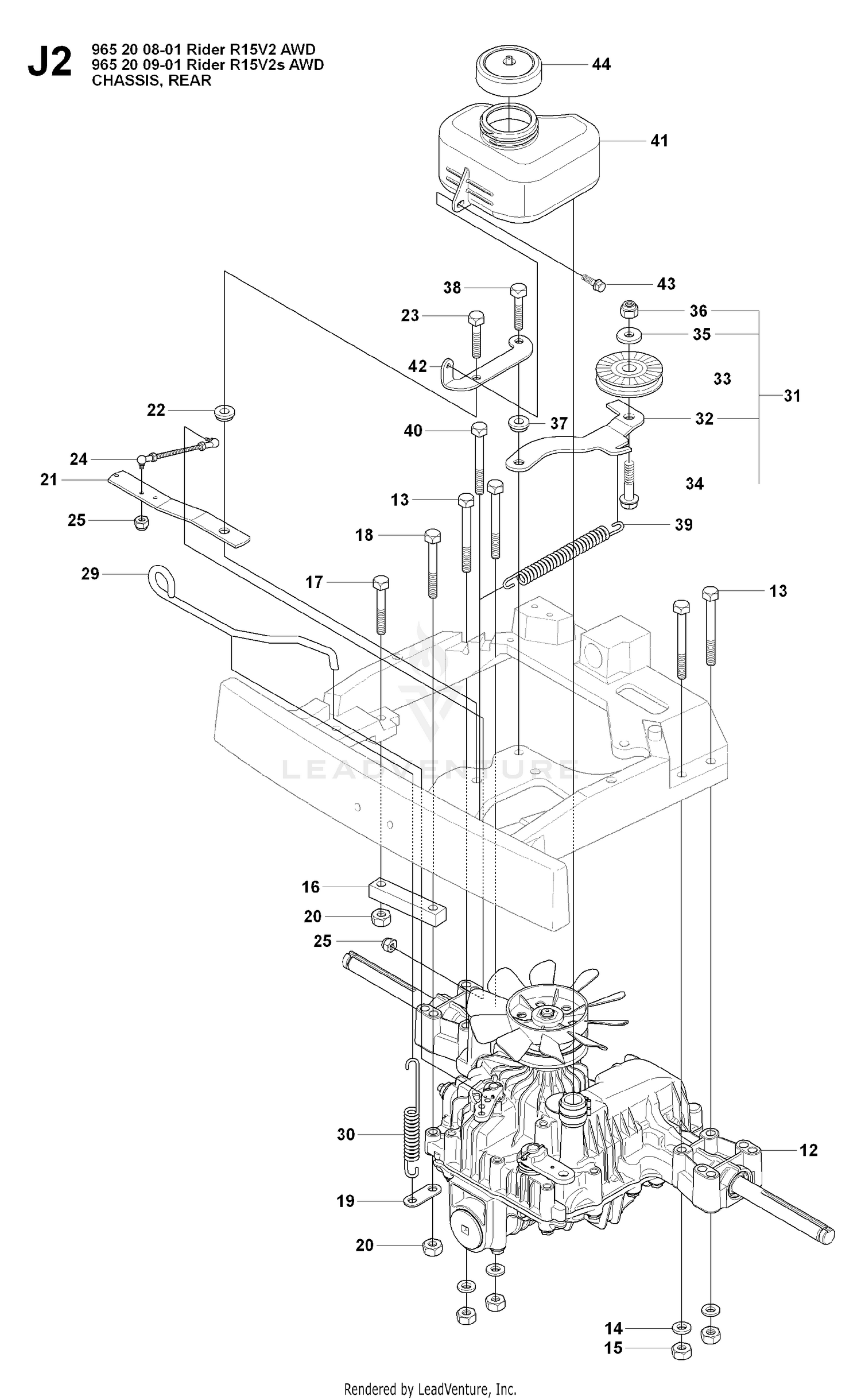

TRANSMISSION 3
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 502633201 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 590716801 | TRANSMISSION K574A This part replaces 544116101. Price: $849.99 |
| 13 | 725246751 | Hex Bolt Price: $4.99 |
| 14 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 15 | 731231801 | NUT Price: $3.99 |
| 16 | 506987201 | BRACKET Price: $19.99 |
| 17 | 725245951 | SCREW Price: $4.99 |
| 18 | 725246251 | SCREW Price: $4.99 |
| 19 | 506599301 | CONNECTOR Price: $5.99 |
| 21 | 506987403 | ARM Price: $12.99 |
| 22 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 23 | 725245151 | SCREW 8X20 Price: $4.99 |
| 24 | 506987501 | ROD Price: $32.99 |
| 25 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 29 | 506988201 | Rod Price: $12.71 |
| 30 | 506834301 | SPRING Price: $3.99 |
| 31 | 506988401 | TENSIONER Price: $54.99 |
| 32 | 588740401 | BELT TENSIONER ARM This part replaces 506988501. Price: $14.99 |
| 33 | 506946901 | PULLEY Price: $34.99 |
| 34 | 725245551 | SCREW Price: $3.99 |
| 35 | 734116441 | SPACER Price: $3.99 |
| 36 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 37 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 38 | 725245151 | SCREW 8X20 Price: $4.99 |
| 39 | 594924101 | Springs This part replaces 506988601. Price: $3.99 |
| 40 | 725246451 | SCREW Price: $5.99 |
| 41 | 544100102 | EXPANSION TANK RIDER EXTENDED This part replaces 544100101. Price: $54.99 |
| 42 | 544121701 | BRACKET Price: $6.99 |
| 43 | 725236461 | SCREW Price: $2.99 |
| 44 | 506673301 | FUEL CAP Price: $27.99 |
