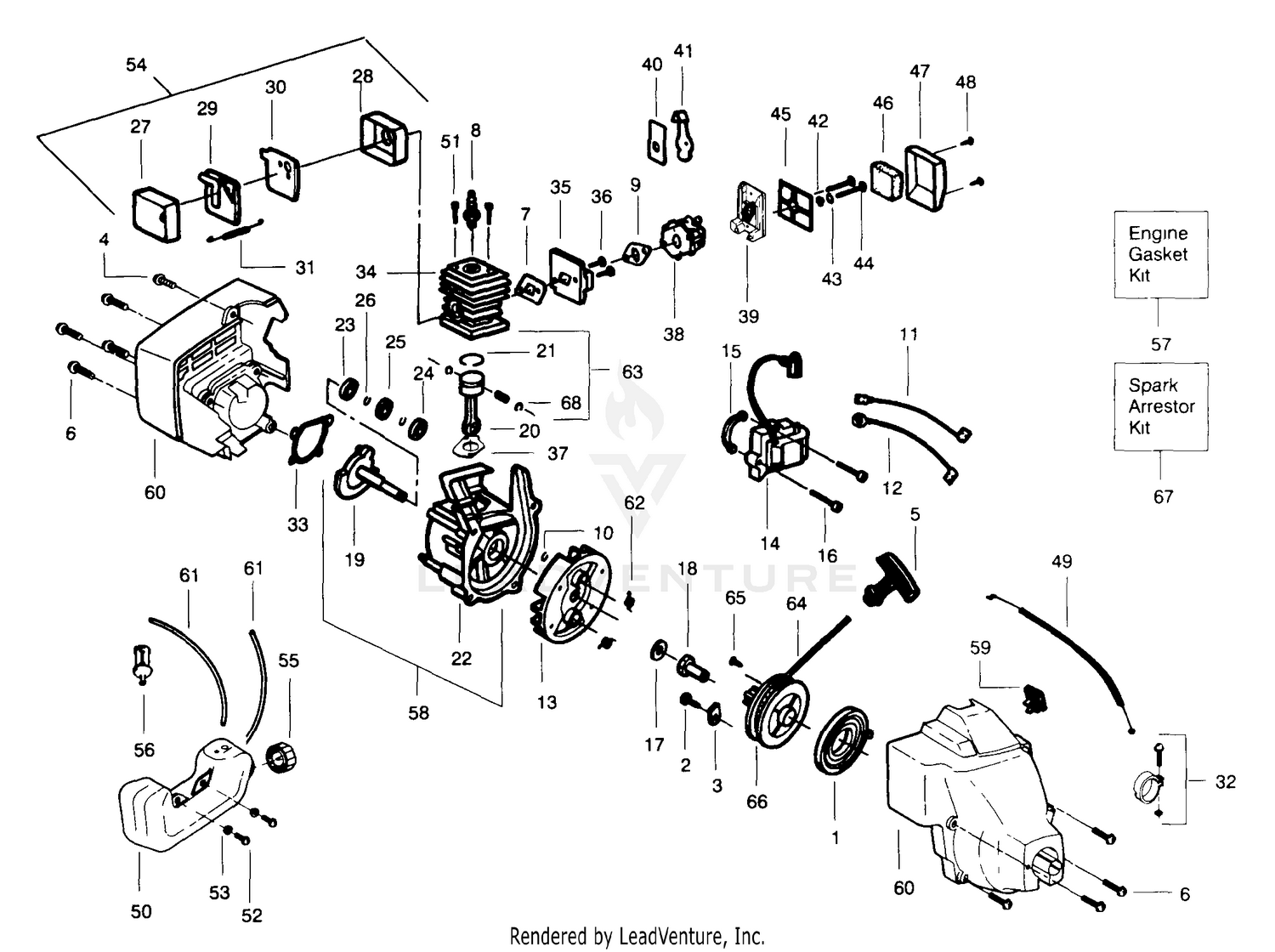

| Ref | Part Number | Description |
|---|
| 1 |
5-3698 |
DISCONTINUED Price: Call Us |
| 1 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 2 |
5-2837 |
DISCONTINUED Price: Call Us |
| 2 |
530015775 |
Screw - Pulley Price: $1.99 |
| 3 |
530027523 |
Retainer - Pulley Price: $2.99 |
| 4 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 4 |
530015934 |
Screw - Shrd/Fan Hsg Price: $1.99 |
| 5 |
3251-17 |
DISCONTINUED Price: Call Us |
| 5 |
530027569 |
Starter Handle Price: $1.99 |
| 6 |
5-5860 |
DISCONTINUED Price: Call Us |
| 6 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 7 |
5-2876 |
STEERING CABLE ASM Price: $147.98 |
| 7 |
530019233 |
Gasket - Cylind./Carb Price: $1.99 |
| 8 |
4-7459 |
REAR BSKT & HNDL ASM Price: $573.68 |
| 8 |
503235112 |
Spark Plug This part replaces 952030201. Price: $5.99 |
| 9 |
3290-148 |
NUT-HF Price: $0.25 |
| 9 |
530019194 |
Gasket - Carb. Price: $1.99 |
| 10 |
5-5690 |
DISCONTINUED Price: Call Us |
| 10 |
530015945 |
Retainer Ring - C'case Price: $1.99 |
| 11 |
32122-32 |
SCREW Price: $1.79 |
| 11 |
530014663 |
Lead Wire Ass'y Price: $5.99 |
| 12 |
5-3653 |
DISCONTINUED Price: Call Us |
| 12 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 13 |
5-5600 |
DISCONTINUED Price: Call Us |
| 13 |
545221701 |
FLYWHEEL ASSY This part replaces 530039149. Price: $8.99 |
| 14 |
4-7449 |
DISCONTINUED Price: Call Us |
| 14 |
530039163 |
Ignition Module Price: $34.99 |
| 15 |
5-2857 |
DISCONTINUED Price: Call Us |
| 15 |
530036145 |
Spacer - Ignit. Module Price: $1.99 |
| 16 |
5-5620 |
BASKET HANGER WA *B Price: $82.67 |
| 16 |
530015954 |
Screw - Ignit. Module Price: $1.99 |
| 17 |
321-8 |
SCREW-HH Price: $0.34 |
| 17 |
530015828 |
Washer - Flat Price: $1.99 |
| 18 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 18 |
530038604 |
Drive Coupling Price: $1.99 |
| 19 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
| 19 |
530014532 |
Crankshaft Ass'y Price: Call Us |
| 20 |
3-9274 |
SPACER Price: $6.33 |
| 20 |
530069615 |
Connecting Rod Ass'y Price: $14.99 |
| 21 |
32120-64 |
RING-SNAP, EXTERNAL Price: $0.25 |
| 21 |
530036404 |
Piston Ring Price: $4.99 |
| 22 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 23 |
4-7439 |
DISCONTINUED Price: Call Us |
| 23 |
530032125 |
Inner Bearing Price: $11.99 |
| 24 |
5-2891 |
DISCONTINUED Price: Call Us |
| 24 |
530032124 |
Outer Bearing Price: $4.99 |
| 25 |
3290-133 |
SCREW Price: $1.19 |
| 25 |
530019179 |
C'case Seal Price: $2.99 |
| 26 |
3-3468-03 |
BASKET HANDLE This part replaces 3-3468. Price: $186.16 |
| 26 |
530015941 |
Retain Ring - C'shaft Price: $1.99 |
| 27 |
5-5640 |
DISCONTINUED Price: Call Us |
| 27 |
530036578 |
Muffler Body Price: $2.99 |
| 28 |
5-2858 |
DISCONTINUED Price: Call Us |
| 28 |
530036577 |
Muffler Cover Price: $2.99 |
| 29 |
32103-2 |
NUT-WING Price: $0.68 |
| 29 |
530049489 |
Muffler Baffle - Exit Price: $1.99 |
| 30 |
5-2836 |
HOOK Price: $36.19 |
| 30 |
530036579 |
Muffler Baffle - First Price: $2.99 |
| 31 |
5-2796 |
DISCONTINUED Price: Call Us |
| 31 |
530016197 |
Muffler Spring Price: $1.99 |
| 32 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
530056365 |
Assy-Nose Cone Clamp This part replaces 530038720. Price: $2.99 |
| 33 |
5-5450 |
DISCONTINUED Price: Call Us |
| 33 |
530019181 |
Gasket - C'case Price: $1.99 |
| 34 |
530012353 |
CYLINDER This part replaces 530069619. Price: $6.99 |
| 34 |
6-3950 |
PIVOT ARM SPACER Price: $2.31 |
| 35 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 35 |
530047659 |
Carb Adaptor Price: $2.99 |
| 36 |
530016014 |
Screw - Carb Adaptor Price: $1.99 |
| 37 |
530019223 |
Gasket - Cylinder Price: $1.99 |
| 39 |
530038582 |
Air Box Price: $3.33 |
| 40 |
530038747 |
Choke Plate Price: $1.99 |
| 41 |
530038686 |
Choke Shutter Price: $1.99 |
| 42 |
530015254 |
Washer Price: $1.99 |
| 43 |
530015852 |
Choke Spacer Price: $1.99 |
| 44 |
530015887 |
Screw Price: $1.99 |
| 45 |
530036569 |
Filter Plate Price: $1.99 |
| 46 |
530036575 |
Air Filter Foam Price: $1.99 |
| 47 |
530036568 |
Air Filter Cover Price: $1.99 |
| 48 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 49 |
530071548 |
Assy Throttle Cable This part replaces 530036744. Price: $3.99 |
| 50 |
530047255 |
Fuel Tank Ass'y Price: $3.33 |
| 51 |
530015953 |
Screw - Cylinder Price: $1.99 |
| 52 |
530015814 |
Screw - Fuel Tank Price: $1.99 |
| 53 |
530016131 |
Washer - Fuel Tank Price: $1.99 |
| 54 |
530069660 |
Muffler Kit Price: $11.99 |
| 55 |
530014347 |
Fuel Cap Ass'y Price: $4.99 |
| 56 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 59 |
530071356 |
Switch-Momentary This part replaces 530038114. Price: $4.99 |
| 60 |
530069915 |
Fan Housing/Shroud Ass'y Price: $7.76 |
| 62 |
530016191 |
Starter Dog Spring Price: $0.72 |
| 64 |
530069232 |
Rope Kit Price: $3.99 |
| 65 |
530016080 |
Screw Price: $1.99 |
| 67 |
530069380 |
Spark Arrestor Kit Price: $3.99 |
