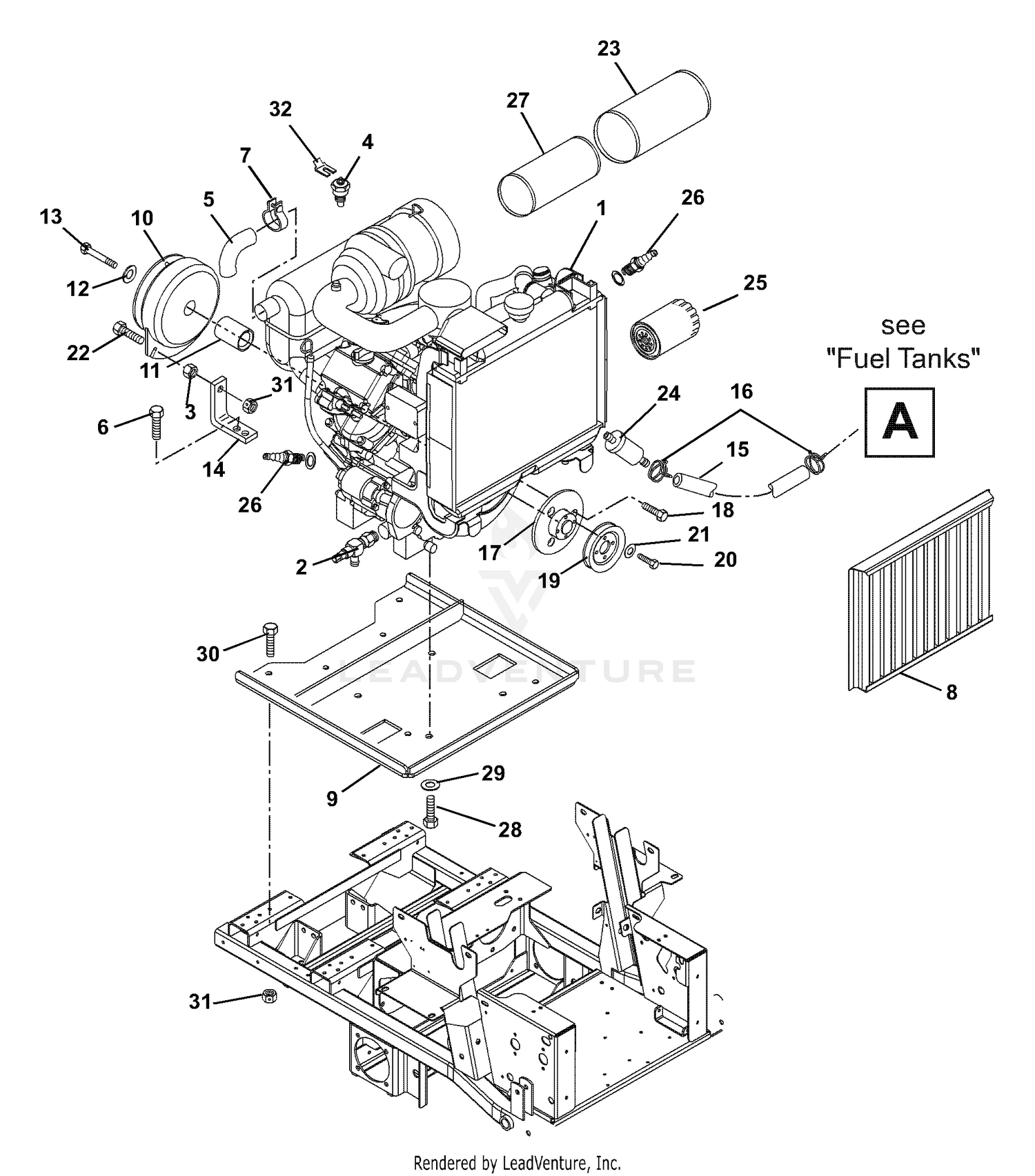

| Ref | Part Number | Description |
|---|
| 1 |
08269800 |
ENGINE, 27HP GAS KAWASAKI Price: Call Us |
| 2 |
07067400 |
DRAIN, OIL Price: $49.95 |
| 3 |
06500909 |
NUT-JAM .312-18 G2 ZCC This part replaces 06536100. Price: $0.95 |
| 4 |
09058800 |
TEMPERATURE SENDER Price: $97.45 |
| 5 |
09268500 |
ELBOW Price: $51.95 |
| 6 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 7 |
01551500 |
CLAMP, MUFFLER ASSY B&S#496801 Price: Call Us |
| 8 |
09268700 |
SCREEN (GAS) Price: $303.15 |
| 9 |
09264951 |
WMT, ENGINE PLATE (GAS) Price: $47.95 |
| 10 |
00389900 |
CLUTCH, ELE-W/HI TEMP GREASE This part replaces 09266700. Price: $389.95 |
| 11 |
09263800 |
SPACER, CLUTCH Price: $38.45 |
| 12 |
06300121 |
WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 13 |
05968300 |
BLT-HEX M10 X 1.5X60 8.8 YWZC Price: $3.95 |
| 14 |
09264651 |
BRACKET, CLUTCH STABILIZER Price: $4.95 |
| 16 |
06939100 |
CLAMP-HOSE WIRE .490/.510X.116 Price: $3.45 |
| 18 |
05978700 |
BLT, FSCHS M8-1.25X25 Price: $3.20 |
| 19 |
07328100 |
SHEAVE, POLY V 1.000 X 3.25 Price: $69.95 |
| 20 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 21 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 22 |
05901710 |
BLT, HEX .31-18X1.50 G5 ZCC This part replaces 05952400. Price: $1.45 |
| 23 |
21537000 |
ELEMENT, OUTER PRIMARY Price: $32.95 |
| 24 |
21527800 |
FILTER, FUEL Price: $26.95 |
| 25 |
21535800 |
FILTER,OIL - KAW This part replaces 21380000. Price: $27.45 |
| 26 |
21538500 |
PLUG, SPARK Price: $5.45 |
| 27 |
21536900 |
ELEMENT, INNER SAFETY Price: $25.45 |
| 28 |
05943000 |
BLT-HEX M10 X 1.5X25 YWZC Price: $2.45 |
| 29 |
06300121 |
WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 30 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 31 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
